Welcome
Initializing...please wait
After the IP phone is connected to the network and supplied with power, it
automatically begins the initialization process. After startup, the phone is
ready for use. You can now use the Initial login to the desired service.
Welcome
Initializing...please wait

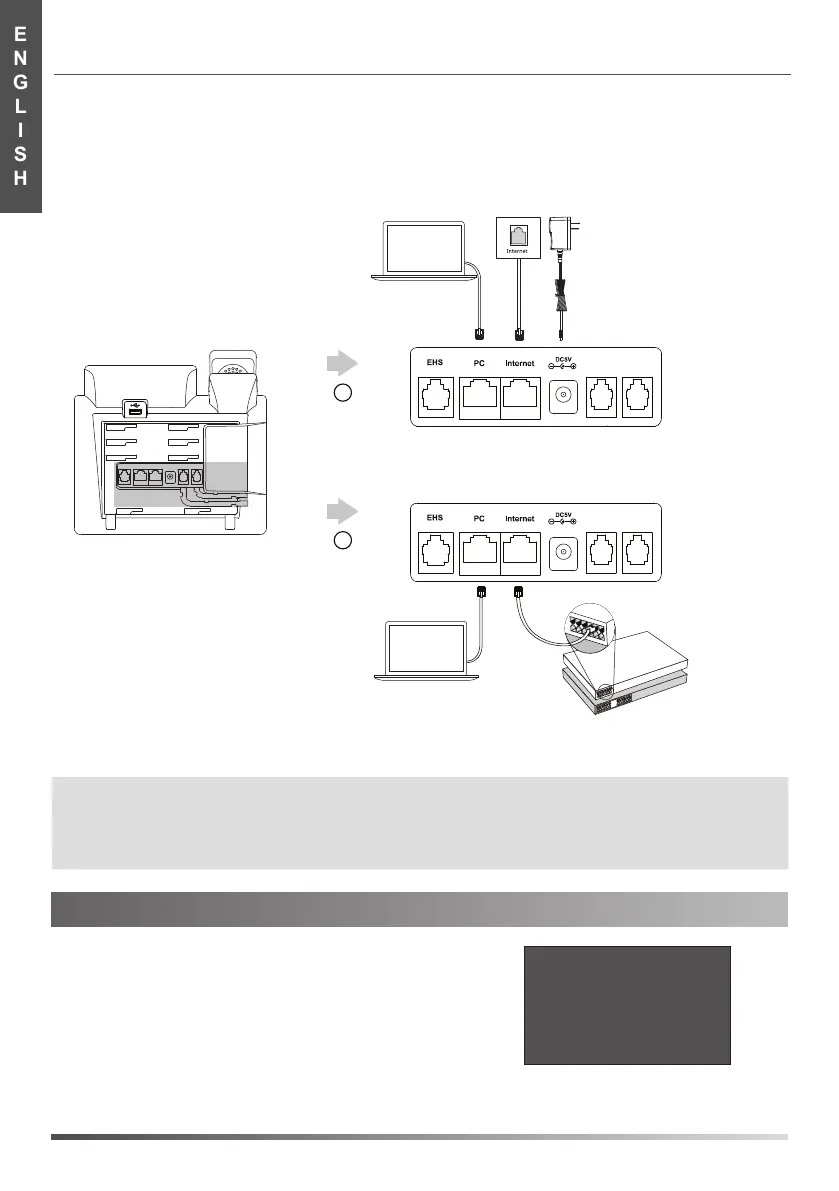

3. Connect the network and power, as shown below:
You have two options for network and power connections. Your system administrator will advise you which one to use.
Note: The IP phone should be used with Yealink original power adapter (5V/1.2A) only. The use of the third-party power adapter may
cause the damage to the phone. If you are connecting a PC to your phone, we recommend that you use the Ethernet cable
provided by Yealink.
If inline power (PoE) is provided, you don’t need to connect the power adapter. Make sure the hub/switch is PoE-compliant.
Startup
Welcome
Initializing...please wait
2
ENGLISH
Power Adapter
(DC 5V)
IEEE 802.3af compliant
PoE Hub/Switch
PC Connection
(Optional)
A
B
AC Power Option
PoE ( Power over
Ethernet ) Option
PC Connection
(Optional)
PC
PC
To Next Page
