Yealink SIP-T53W Recovery Guide

Recovery Mode on Yealink IP phones
4
Configuring the HTTP Server
This section shows how to configure a HTTP server for the windows system using the HFS tool. You can
download the HFS software online: http://www.snapfiles.com/get/hfs.html. If there is a HTTP server
installed on your local system, you can skip this section and go to the next.
Procedures
1. Create an HTTP root directory on the local system.
2. Place resource files to this root directory.
3. Double click the hfs.exe to start the application.

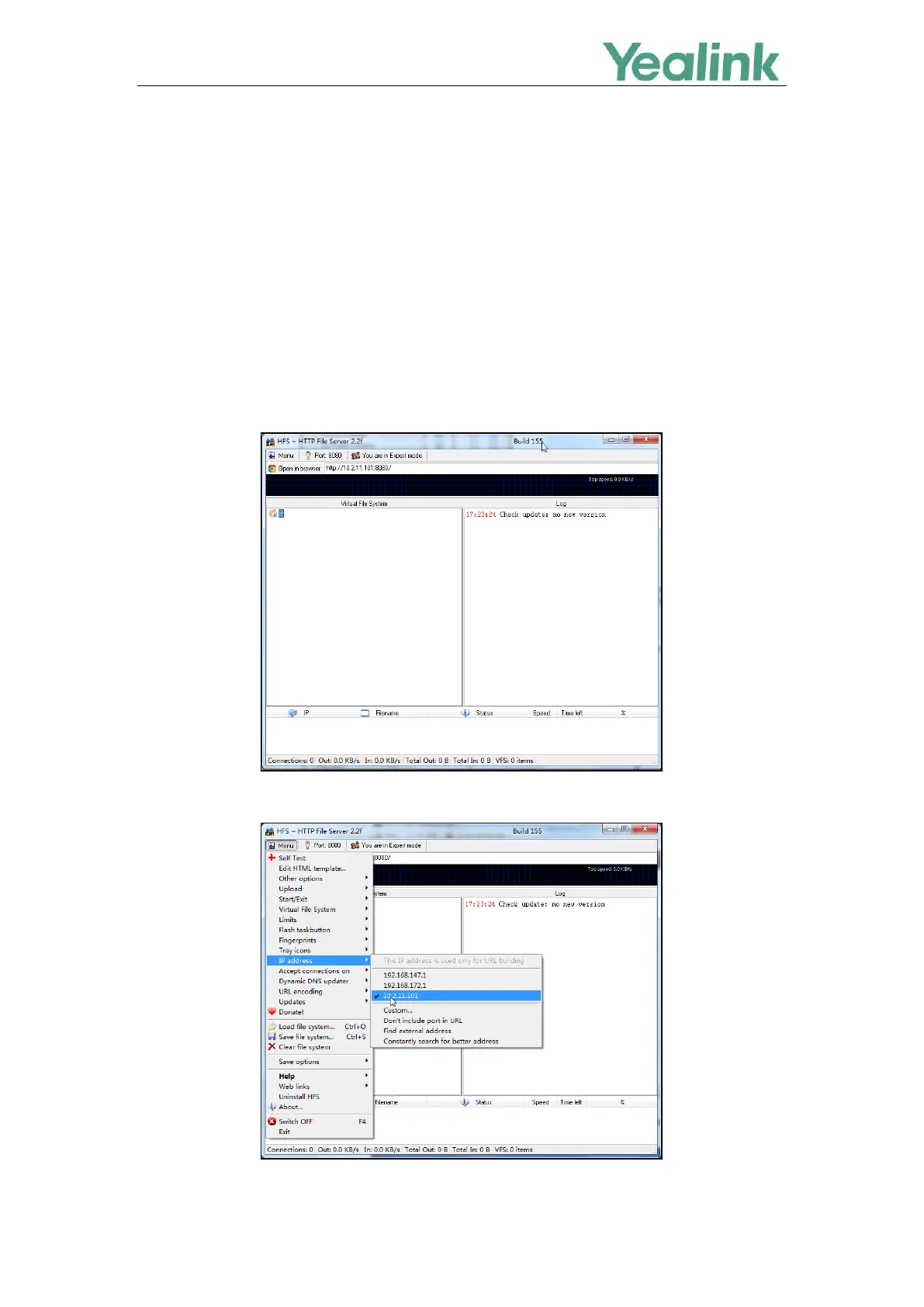

The main configuration page is shown as below:
4. Click Menu in the main page and select the IP address of the PC from IP address.

Yealink SIP-T53W Specifications

General

Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP mobile phone
Product color	Gray
Keypad illumination	Yes
Wi-Fi standards	802.11a, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.2
Security algorithms	AES, HTTPS, SIPS
Networking standards	IEEE 802.1p, IEEE 802.1x, IEEE 802.3af
Ethernet LAN interface type	Gigabit Ethernet
Supported network protocols	FTP/TFTP/HTTP/HTTPS
Dual-Tone Multi-Frequency (DTMF) modes	In-band, Out-of band, SIP info
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Lines quantity	8 lines
Phonebook capacity	1000 entries
Number of VoIP accounts	12
AC adapter input voltage	100 - 240 V
AC adapter output current	1.2 A
AC adapter output voltage	5 V
Power consumption (typical)	2.3 W
Volume control	Buttons
Number of programmable keys	8
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Display diagonal	3.7 \
Display resolution	360 x 160 pixels
Cables included	LAN (RJ-45)
Number of handles included	1 pc(s)
Number of DECT wireless handsets	4
Voice codecs	G.722, G.723.1, G.726, G.729A, G.729B, OPUS, iLBC

Weight and Dimensions

Depth	210.6 mm
Width	212 mm
Height	174.5 mm
