Yealink SIP-T53W Getting Started

Recovery Mode on Yealink IP phones
13

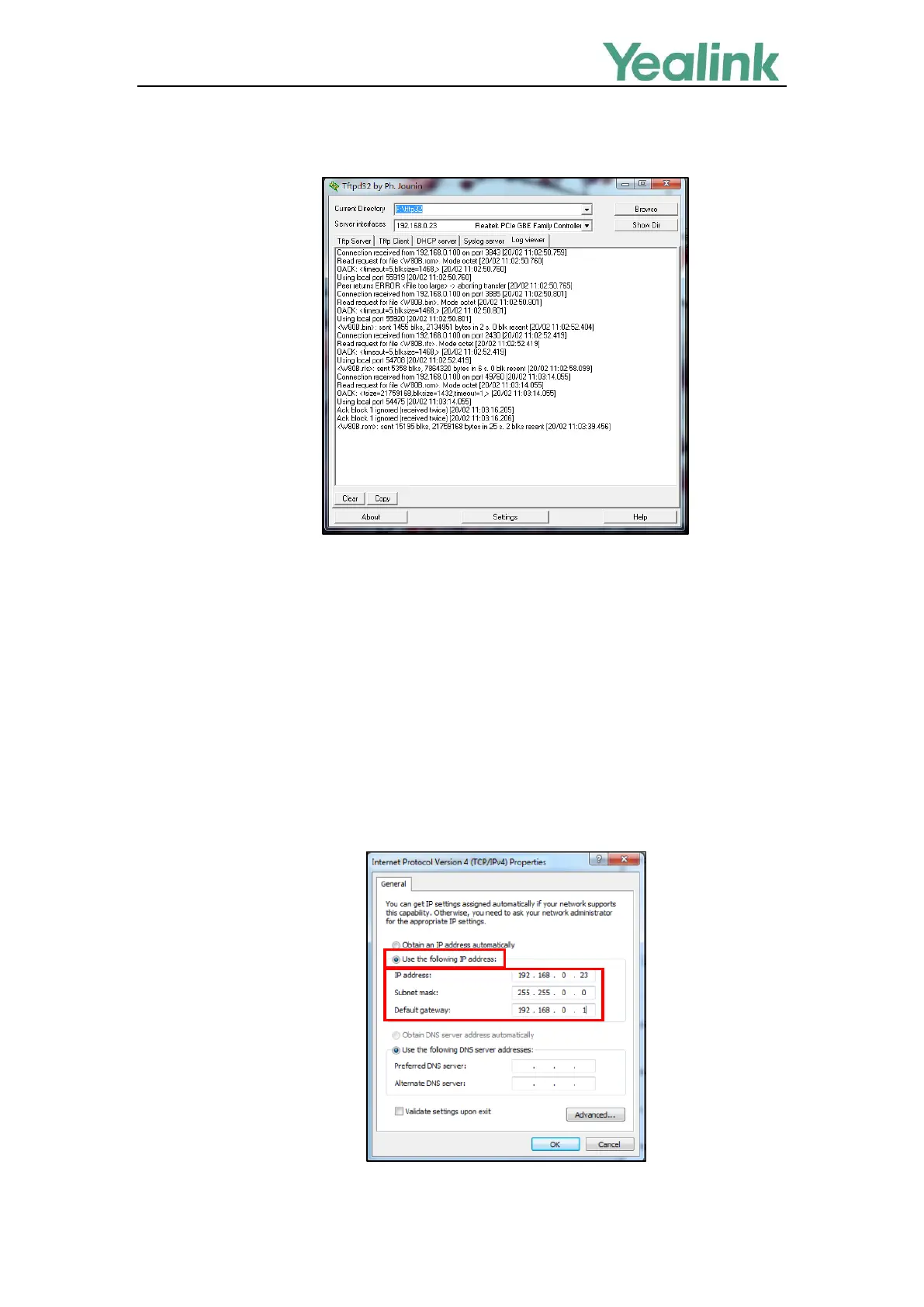

You can view the syslog of the TFTP server to check if the W80DM/W80B downloads the firmware
successfully as shown below:
4. Find the current IP address of the device on the DHCP server in the list of registered DHCP clients.
For W90DM/W90B
For the W90DM/W90B, there is no screen to show information for you. The W90DM/W90B uses
192.168.0.23 as its default IP address, so you need to configure a static IP address for your local PC
where you have the TFTP server installed.
Procedures:
1. Configure the static IP address on your local PC.
It must be configured as below:

Yealink SIP-T53W Specifications

General

Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP mobile phone
Product color	Gray
Keypad illumination	Yes
Wi-Fi standards	802.11a, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.2
Security algorithms	AES, HTTPS, SIPS
Networking standards	IEEE 802.1p, IEEE 802.1x, IEEE 802.3af
Ethernet LAN interface type	Gigabit Ethernet
Supported network protocols	FTP/TFTP/HTTP/HTTPS
Dual-Tone Multi-Frequency (DTMF) modes	In-band, Out-of band, SIP info
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Lines quantity	8 lines
Phonebook capacity	1000 entries
Number of VoIP accounts	12
AC adapter input voltage	100 - 240 V
AC adapter output current	1.2 A
AC adapter output voltage	5 V
Power consumption (typical)	2.3 W
Volume control	Buttons
Number of programmable keys	8
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Display diagonal	3.7 \
Display resolution	360 x 160 pixels
Cables included	LAN (RJ-45)
Number of handles included	1 pc(s)
Number of DECT wireless handsets	4
Voice codecs	G.722, G.723.1, G.726, G.729A, G.729B, OPUS, iLBC

Weight and Dimensions

Depth	210.6 mm
Width	212 mm
Height	174.5 mm
