Yealink UVC86 Quick Start Guide

2
66mm
100mm

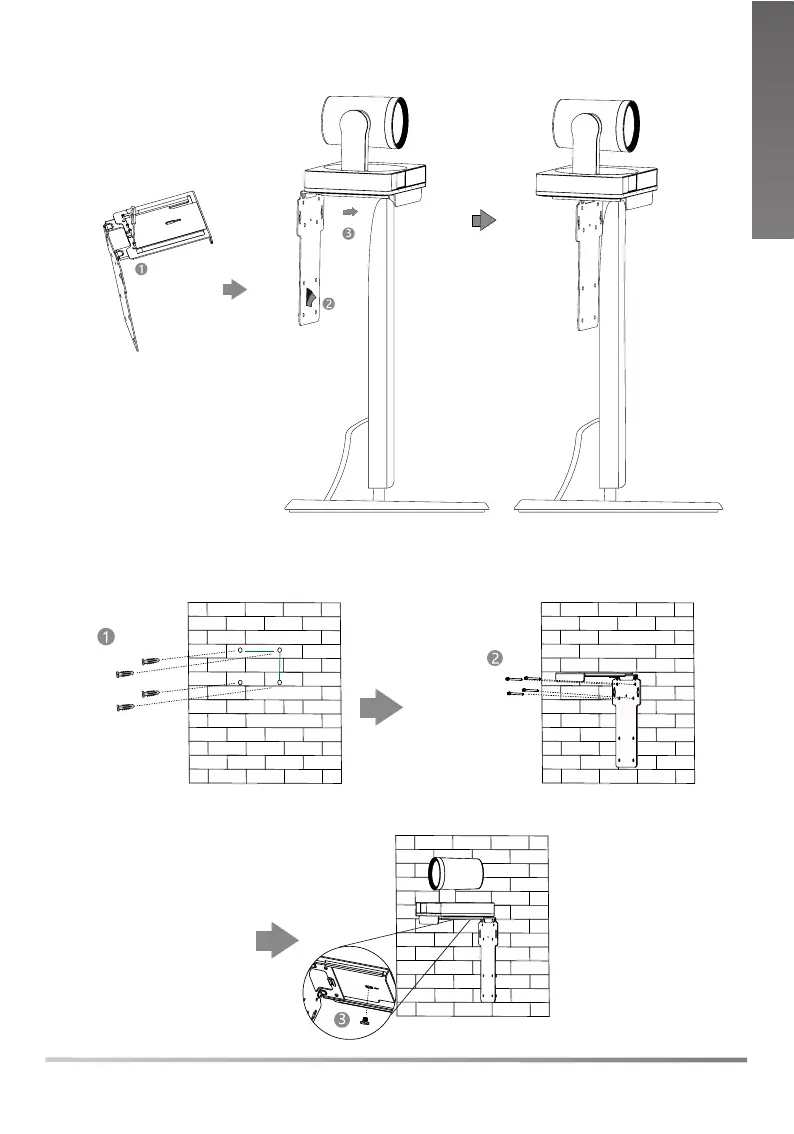

• Mount on the Wall
Hole depth: 30mm
Hole diameter: 6mm
Screw specication: T4×30
Screw specication:
1/4'' -20 UNC
3M Velcro
Choose the following installation method when the thickness of the TV is between 50mm and 150mm.
The recommended height is 1.55m-1.85m above the ground.
Expansion screw
E
N
G
L
I
S
H
E
N
G
L
I
S
H

Yealink UVC86 Specifications

General

Microphone in	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Cables included	USB
USB cable length	7 m
Megapixel	8 MP
Camera type	Dual camera
Digital zoom	1.7 x
Optical zoom	12 x
Vertical field of view	78 °
Horizontal field of view	110 °
Number of camera presets	9
Pan range	-100 - 100 °
Mounting type	Stand
Product color	Black
Tilt angle range	-90 - 40 °
Tracking modes	Presenter mode
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Input current	0.7 A
DC input voltage	48 V
Power source type	AC
AC input frequency	100 - 240 Hz
Maximum frame rate	30 fps
Maximum video resolution	3840 x 2160 pixels
Harmonized System (HS) code	85258900

Weight and Dimensions

Depth	156 mm
Width	210 mm
Weight	3270 g
