Yealink UVC86 Quick Start Guide

5
VCH3 VCH2 VCH1
Display3
Display2Display1
Internet
5V
DC 48V
Line in
Line out Video in


UVC86 UVC86 UVC86 UVC86
LED Indicator Instructions
LED indicators on the UVC86:
LED Status Description
Off The UVC86 is powered off.
Solid green The UVC86 is active.
Solid red The UVC86 is in sleep mode.
Flashing orange The UVC86 is upgrading rmware.
Flashing red The UVC86 is in recovery mode.

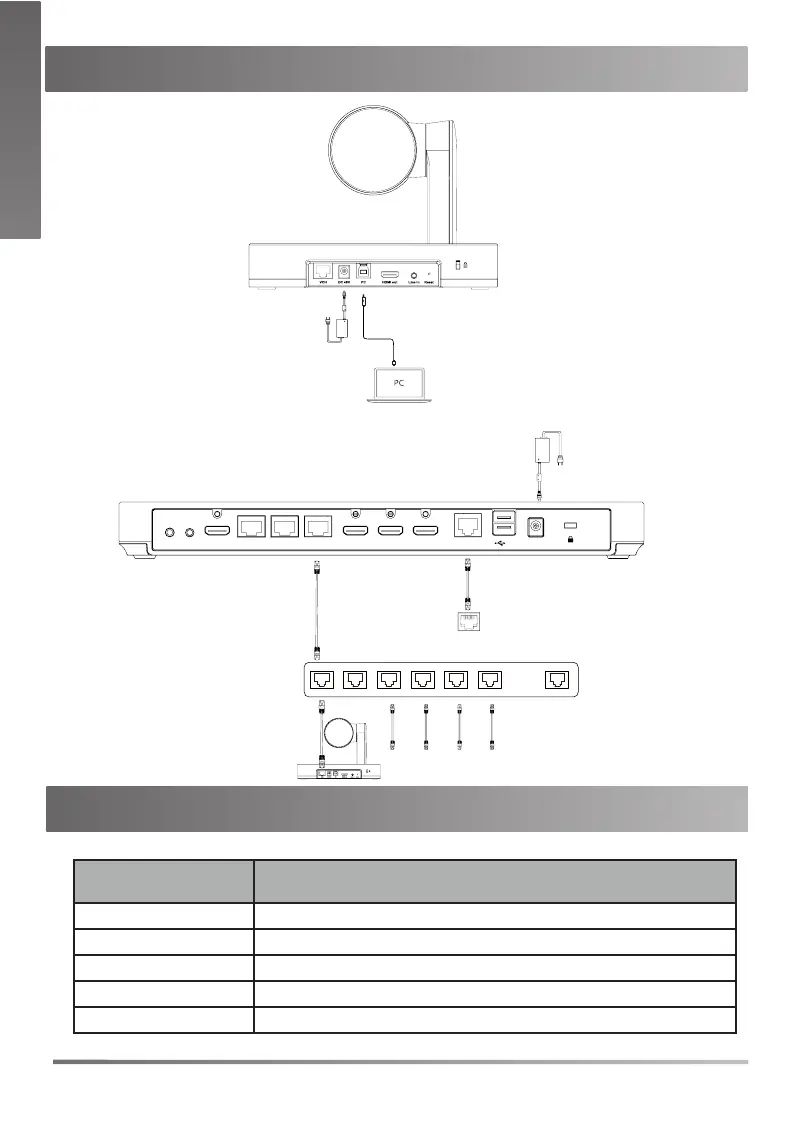

• Connect to the video conference system
:
MeetingEye 800
UVC86 Connection
USB
cable
Cat5e
• Connect to PC:
Internet
IEEE 802.3af compliant
PoE Switch
E
N
G
L
I
S
H
E
N
G
L
I
S
H

Yealink UVC86 Specifications

General

Microphone in	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Cables included	USB
USB cable length	7 m
Megapixel	8 MP
Camera type	Dual camera
Digital zoom	1.7 x
Optical zoom	12 x
Vertical field of view	78 °
Horizontal field of view	110 °
Number of camera presets	9
Pan range	-100 - 100 °
Mounting type	Stand
Product color	Black
Tilt angle range	-90 - 40 °
Tracking modes	Presenter mode
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Input current	0.7 A
DC input voltage	48 V
Power source type	AC
AC input frequency	100 - 240 Hz
Maximum frame rate	30 fps
Maximum video resolution	3840 x 2160 pixels
Harmonized System (HS) code	85258900

Weight and Dimensions

Depth	156 mm
Width	210 mm
Weight	3270 g
