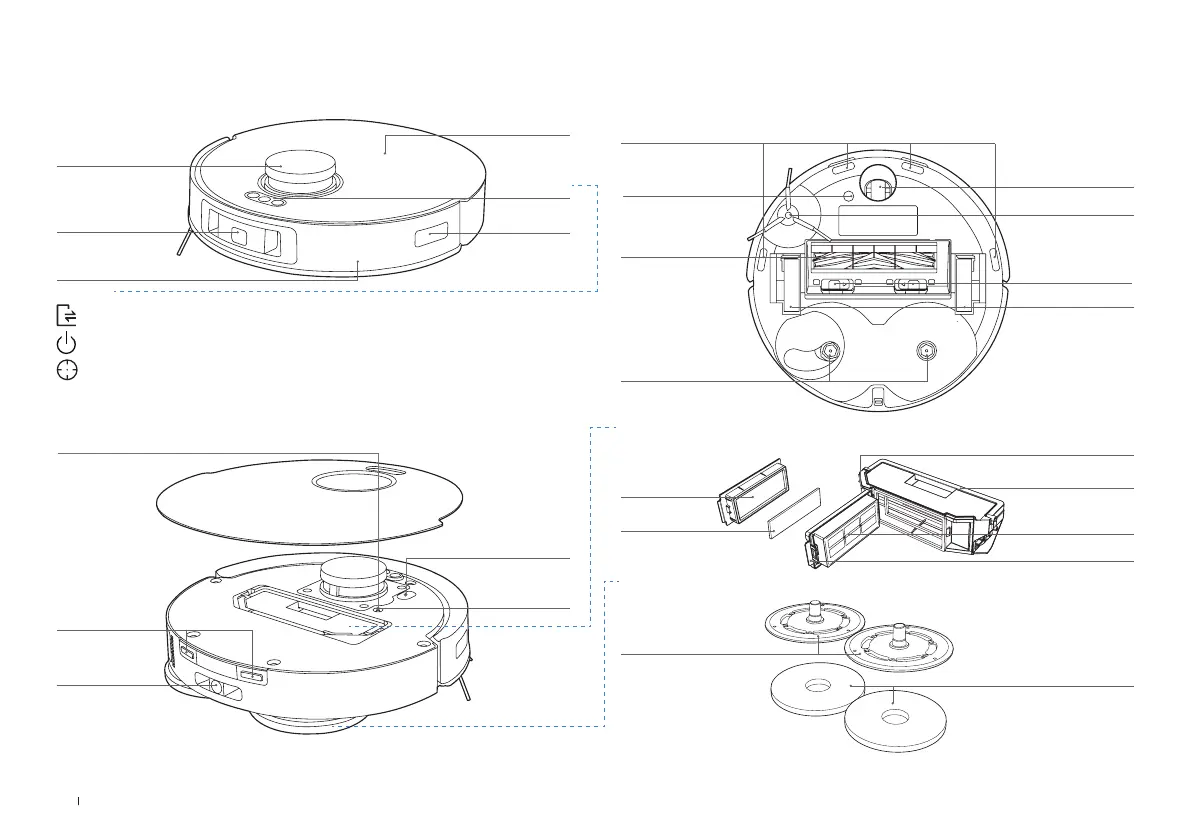

PRODUCT DIAGRAM
Anti-collision
Sensors and Bumper
Top Cover
Buttons
Edge Sensor
Buttons
TrueDetect 3D
Sensor
Short press: Exit/Return to the Station Long press: Self-clean
Short press: Start/Pause/Continue Long press: Power on/Power off
Short press: Start/End Spot Cleaning Long press: Child Lock
Bottom View
Robot
Driving Wheels
Universal Wheel
Side Brush
Brush
Carpet Detection
Sensor
Anti-drop Sensors
Brush Release
Button
Mounting Slots
for Mopping Pad
Assembly
Mopping Pad Assembly
Mopping Pad Plates
Washable Mopping Pads
Charging
Contacts
Water Filling Port
TrueMapping
RESET Button
Restore to default settings: Press and hold RESET button for 5 seconds�
After you hear the voice prompt, the startup music will be played and the robot will be
restored to default settings�
Data Transfer Port
For professional
maintenance personnel
use only�
Wi-Fi Status
Indicator
Dust Bin
Filter
Sponge Filter
Dust Disposal Port
Filter Net
Dust Bin Handle
Release Button
