The Yeelight Lightstrip S1 is a smart LED lightstrip designed for ambient and decorative lighting, offering a range of features for personalized control and integration into smart home ecosystems.

Function Description

The Yeelight Lightstrip S1 serves as a versatile lighting solution that can be controlled intelligently through an app. It allows users to pick colors, adjust brightness (dimmable), and create personalized scenes. A notable feature is its ability to sync with music, providing dynamic lighting effects that respond to audio. The lightstrip is extendable, allowing users to lengthen it with additional Yeelight Lightstrip Plus Extension segments for broader coverage. It also includes a smart timer function for scheduled lighting.

Important Technical Specifications

Model No.: YLDD05YL
Luminous Flux: 200 lm
Operating Temperature: -10 ~ 40°C (10°F to 104°F)
Frequency Bands:
- Wi-Fi: 2400MHz–2483.5MHz
- Bluetooth (BT): 2402MHz-2480MHz
Rated Input (Lightstrip):
- 5.1W (80 in, 2m) at 24 VDC, 0.21A
- 21W (400in, 10m) at 24 VDC, 0.88A
Rated Input (Adapter):
- 7.5W (80 in, 2m) at 100-240V ~ 50/60Hz, 0.17A
- 24W (400 in, 10m) at 100-240V~50/60Hz, 0.6A
Maximum Output Power:
- Wi-Fi: 15.7 dBm
- Bluetooth (BT): 5.7 dBm
Connectivity: Wi-Fi IEEE 802.11 b/g/n 2.4GHz
System Requirements: Android 4.4 & iOS 9.0 or above
Max Interconnected Length: 400in (10m)
Components: Lightstrip (80in), Data cable (60in), Controller, Connector, Power cable, Adapter. The Lightstrip Plus Extension (40in each) needs to be purchased separately.

Usage Features

The Yeelight Lightstrip S1 offers straightforward setup and intelligent control. Setup Instructions:

Installation Surface Preparation: Clean the installation surface thoroughly to ensure proper adhesion.
Lightstrip Placement: Paste and fix the lightstrip onto the desired surface.
Power Connection: Plug the adapter into the power cable, rotating it 45 degrees clockwise to snap it into place. Connect the power supply to the controller, and then plug the adapter into a power outlet.
Basic Control: The controller features a single button ("O"). Tap it once to turn on the lightstrip, tap again to turn it off, and press it to cycle through different colors.
Extension: To extend the lightstrip, purchase the Yeelight Lightstrip Plus Extension. Match the end of the original lightstrip with the connection port of the extension and secure it with the fastener. Ensure each strip is tightly connected before mounting the next. The maximum extension is 10 meters.

Intelligent Control:

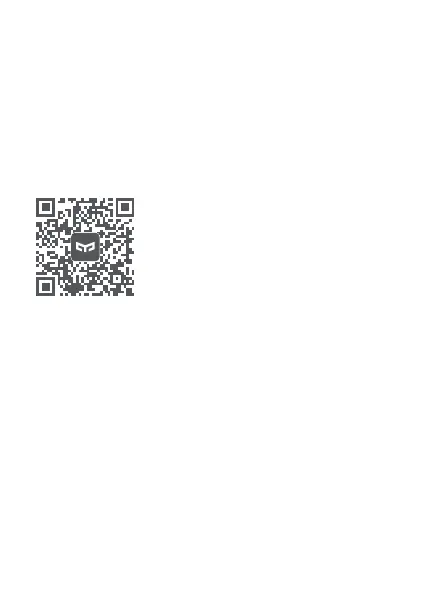

App Download: Search for "Yeelight" in your app store or scan the provided QR code to download the Yeelight App.
Connection: Turn on the lightstrip, open the app, and follow the on-screen prompts to connect. It is crucial to ensure that a Wi-Fi network is available and that you have proper internet access.
Apple HomeKit Smart Control:
- Open the Home App on your iPhone or iPad.
- Click the "+" button and add the accessory as prompted.
- Scan the QR code located on the right or under the product base of the product. Alternatively, input the 8-digit code shown above the QR code to complete access.
- Ensure a Wi-Fi network is available and you have internet access. Note that this product is not compatible with 5G networks.
- For proper HomeKit compatibility, iOS 9 or above is recommended.
- HomeKit codes are found under the base of the controller and are required for every reset.
- Home Hub Functionality: An Apple TV (4th generation or later) with tvOS 10 or later, an iPad with iOS 10 or later, or a HomePod can act as a home hub, enabling control of HomeKit-enabled accessories remotely and through automated triggers (e.g., time of day, location, sensor detection, or accessory actions).

Maintenance Features

How to Reset: To reset the lightstrip, disconnect the power. Press and hold the power button while reconnecting to the power supply. Continue holding the button for five seconds until the lightstrip cycles through red, green, and blue, and then turns yellow. Release the button, and the reset is complete. It is recommended to reset the lamp before using it in a new network environment.

Warnings and Safety:

Voltage Check: Always check the voltage before using the product. Incorrect voltage can damage the product and pose safety risks.
Indoor Use Only: This product is designed for indoor use exclusively.
Operating Environment: To prevent premature product failure, install the lightstrip only within an operating temperature range of 10°F to 104°F (-10℃ to +40℃).
Water Resistance: The lightstrip is not waterproof.
Regular Checks: Regularly inspect the cable, power supply, and all other parts for any damage.
Damaged Parts: Do not use the luminaire if any part is damaged.
Non-Replaceable Lamps: The lamps are not replaceable. When the light source reaches its end of life, the entire luminaire must be replaced.
Disassembly: Do not disassemble the product privately.
Child Safety: Keep the lightstrip away from children under 3 years old.
Bending Restrictions: Do not bend the LED inside the lightstrip by more than 90 degrees to prevent damage.
Power Connection While Packaged: Do not connect the lightstrip to the power supply while it is still in its packaging.
Compatibility: The Lightstrip Plus 1S is only compatible with Yeelight Lightstrip Plus Extension.
Interconnection: Interconnection should only be made using the supplied connectors. Any open end must be sealed off before use.
Covered/Recessed Use: Do not use the rope light when it is covered or recessed into a surface.
Cutting: Do not open or cut the rope light.

FCC Compliance Statement: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used according to instructions, it may cause harmful interference to radio communications. There is no guarantee that interference will not occur in a particular installation. If this equipment causes harmful interference to radio or television reception (which can be determined by turning the equipment off and on), the user is encouraged to try to correct the interference by one or more of the following measures: reorient or relocate the receiving antenna, increase the separation between the equipment and receiver.

WEEE Disposal and Recycling: This product should not be disposed of with other household waste within the EU. To prevent potential harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, utilize the return and collection systems or contact the retailer where the product was purchased. They can facilitate environmentally safe recycling.
