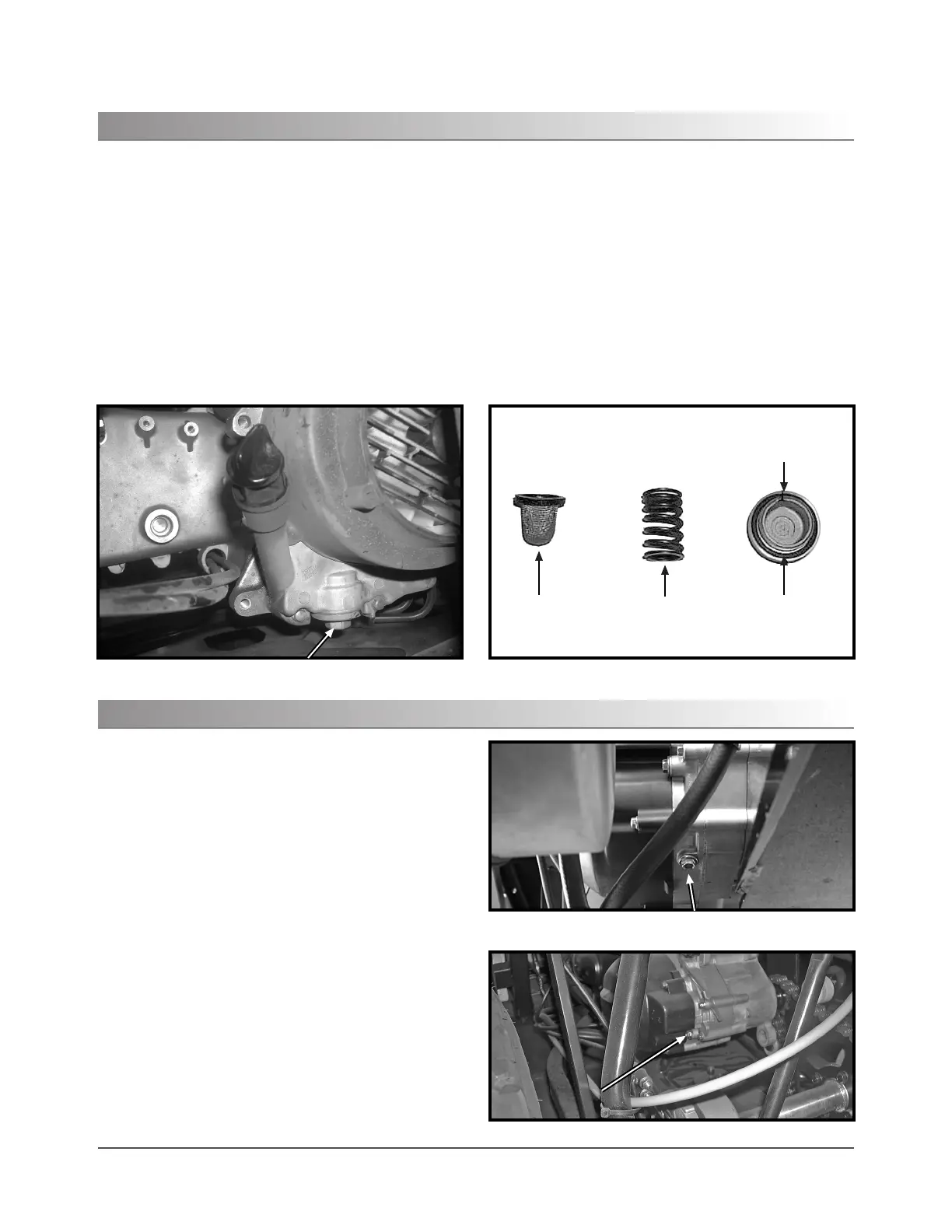

Page 27
TRANSMISSION OIL CHANGE
Change the gear oil after the first 30 hours of
operation. The recommended gear oil is
SAE 85W-140.
1. Run Retriever vehicle for at least five (5) minutes
or until warm. Turn off unit and remove the
ignition key.
2. Place a suitable container for draining oil beneath
the rear of engine.
3. Remove the transmission drain plug (located
under rear of sprocket shaft) (Figure 15). Let
drain complete.
4. Remove fill plug located on left rear of engine
case. (Figure 15B)
5. Inspect drain and fill plug gasket for damage.
Replace with new gasket if damaged.
6. Replace drain plug, torque to 95 in. lbs.
7. Fill transmission through the oil fill plug with 7
oz. (200 cc) SAE 85W-140 gear oil.
8. Replace oil fill plug and start the engine.
Figure 15 Transmission Drain Plug
ENGINE OIL CHANGE
1. Run unit for at least five (5) minutes or until warm. Turn Engine OFF and remove the key.
2. Place suitable container for draining oil beneath the engine.
3. Remove the engine drain plug, oil filter cap, spring and oil filter screen. Let the oil drain completely.
4. Clean and inspect oil drain plug gasket, oil cap sealing O-ring and oil filter screen for damage.
Replace if damaged.
5. Install the drain plug and torque to 12 ft. lbs.
6. Fill with API classification SF-SG SAE 15W-40 Oil, 1.25 quarts.
7. Start engine and check for leaks.
8. Shut off engine and check the oil level with the dipstick. Do not screw it in when making this check.
Add oil if necessary to fill up to the safe range indicated on the dipstick.
Figure 13 Engine Drain Plug Figure 14 Oil Filter Cap / O-Ring / Screen / Spring
Oil Filter
Screen
Spring
Oil Filter
Cap
O-Ring
www.yerf-dog.com
For questions in USA, 888-926-6554
Figure 15B Transmission Fill Plug
Yerf-Dog Retriever CUV Owners Manual
Model# 34851 • Revision C - 2/05 Manual# 06367
