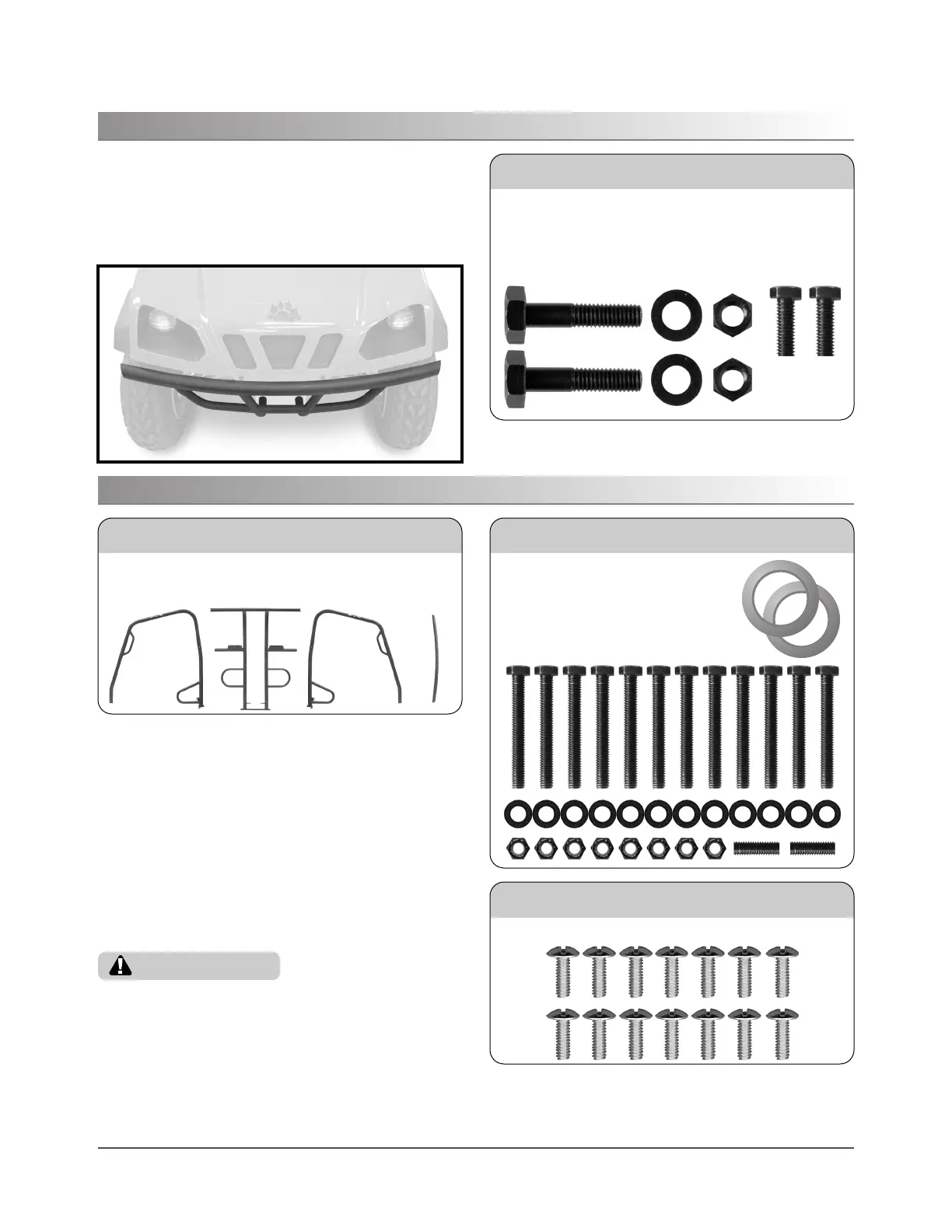

BRUSH GUARD COMPONENTS
BRUSH GUARD ASSEMBLY AND INSTALLATION
FRONT BUMPER INSTALLATION
FRONT BUMPER HARDWARE
Attach Front Bumper at top left and top right using
Bolts (#02), Washers (#03) and Locknuts (#04).
Attach to frame at bottom center using Bolts (#05).
DRIVER SIDE
Brush Guard
PASSENGER SIDE
Brush Guard
REAR
Brush Guard
CROSS
MEMBER
#02 - (2) 3/8” x 2” Bolts
#03 - (2) 3/8” Flat Washers
#04 - (2) 3/8” Lock Nuts
#05 - (2) 3/8” x 1-1/4” Bolts
BRUSH GUARD HARDWARE
#06 - (2) Rubber Grommets
#07 - (12) 3/8” x 3-1/2” Bolts
#08 - (14) 3/8” Flat Washers
#09 - (8) 3/8” Lock Nuts
#10 - (2) 3/8” Studs
LUMBAR SEAT PAD / HEADREST HARDWARE
(14) Machine Screws 06883
Insert all bolts and nuts before tightening.
The Brush Guard Components are not
designed or intended to serve as a Roll Over
Protective Structure and should not be relied
upon to protect the occupants in the event
of a vehicle rollover. To prevent severe
personal injury or death from vehicle rollover,
follow the warnings and instructions in this
manual and in the decals on the vehicle itself.
CAUTION
NOTE: Do not tighten Bolts or Nuts until
all pieces of the brush guard are assembled.
Loosen nut on stud as needed to aid in
assembly.
Yerf-Dog Retriever CUV Owners Manual
Model# 34851 • Revision C - 2/05 Manual# 06367
05609 05610
05608
05607
06166
02280
