CARGO BED - ASSEMBLY AND INSTALLATION
Manual# 06367
Yerf-Dog Retriever CUV Owners Manual
Model# 34851 • Revision C - 2/05

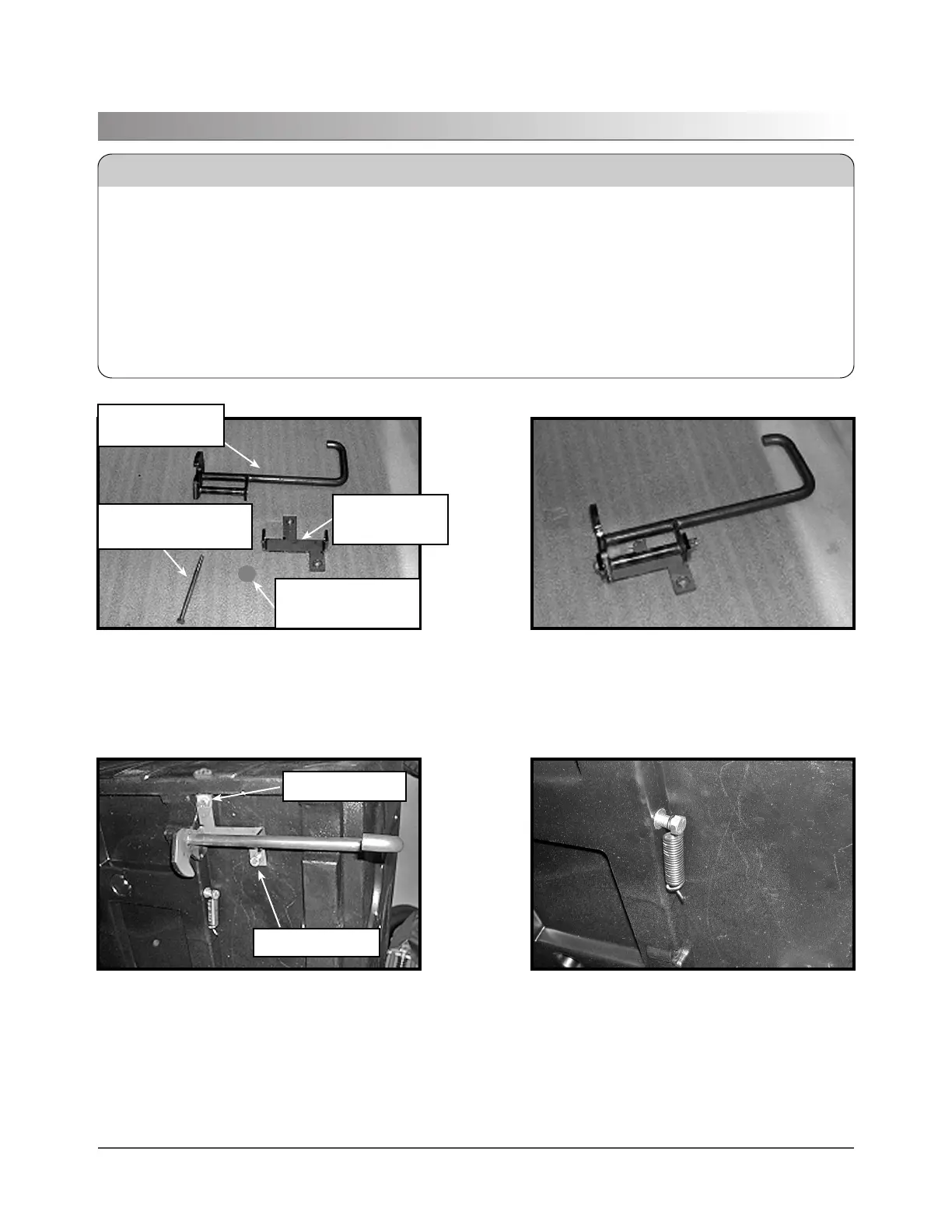

2. Assemble the components together as
shown using the 3/8” x 4-3/4” bolt
(p/n:06427) and 3/8” nylock nut
(p/n:001205P). Do not over tighten. You
should be able to freely pivot the latch handle
in the bracket.
3. Attach assembled latch to dumpbed as
shown using (1) 3/8” x 2” black zinc button-
head bolt (p/n:06490), and (1) 3/8” x 1-1/2”
black zinc button-head bolt (p/n:06489).
Place (1) 3/8” ID x 1-1/4” OD flat washer
(p/n:06491), under the head of the 2” bolt.
Fasten using (2) 3/8” nylock nuts
(p/n:001205P).
4. Below the latch locate the threaded
insert that is located in the side channel of
the dump bed (see above picture to help
illustrate) and attach the 2.875” spring (p/n:
06143) using bolt a 3/8” x 1” (p/n:06153).
3/8” x 2”
3/8” x 1-1/2”
1. Your hardware bag should contain the
following bed latch assembly components.
Pivot Plate
(p/n: 06424)
Bolt; 3/8” x 5”
(p/n:06208)
Latch Handle
(p/n: 06423)
3/8” Nylock Nut
(p/n:001205P)
DUMP BED HARDWARE BAG SHOULD CONTAIN
#06423 - (1) HANDLE; BED; LATCH; SIDE; WITH PIVOT; CUV
#06143 - (1) SPRING; 2.875 X .065 DIA; LATCH; CUV
#06144 - (1) SPRING; 2.5 X .0638 DIA; LATCH; CUV
#06153 - (2) BOLT 3/8” X 1”; HEX;BLK ZINC; NYLON PATCH
#06489 - (1) BOLT, 3/8” X 1-1/2”, BUTTON-HEAD SOCKET; BLACK
#06490 - (1) BOLT, 3/8” X 2”, BUTTON-HEAD SOCKET; BLACK
#06491 - (1) WASHER; 3/8” 1D X 1-1/4”OD; FLAT; BLACK
#06380 - (2) DECAL; RETRIEVER 4X2; DUMP BED
#06155 - (1) BOLT; 1/4” X 2-1/2”; HEX; ZINC
#06157 - (2) BOLT; 3/8” X 6-1/2”; HEX; ZINC
#06424 - (1) PIVOT; LATCH; HANDLE
#06141 - (1) PROP ROD; CUV
#06148 - (1) PLATE;PIVOT;SLIDER;CUV
#001614P - (1) WASHER; 3/8” FLAT; ZINC
#06208 - (1) BOLT; 3/8” X 5”
#001205P - (5) NUT; 3/8”; NYLOCK
#001203P - (2) NUT; 1/4”; NYLOCK
#06178 - (1) BOLT; 1/4” X 1-1/2; HEX; ZINC
