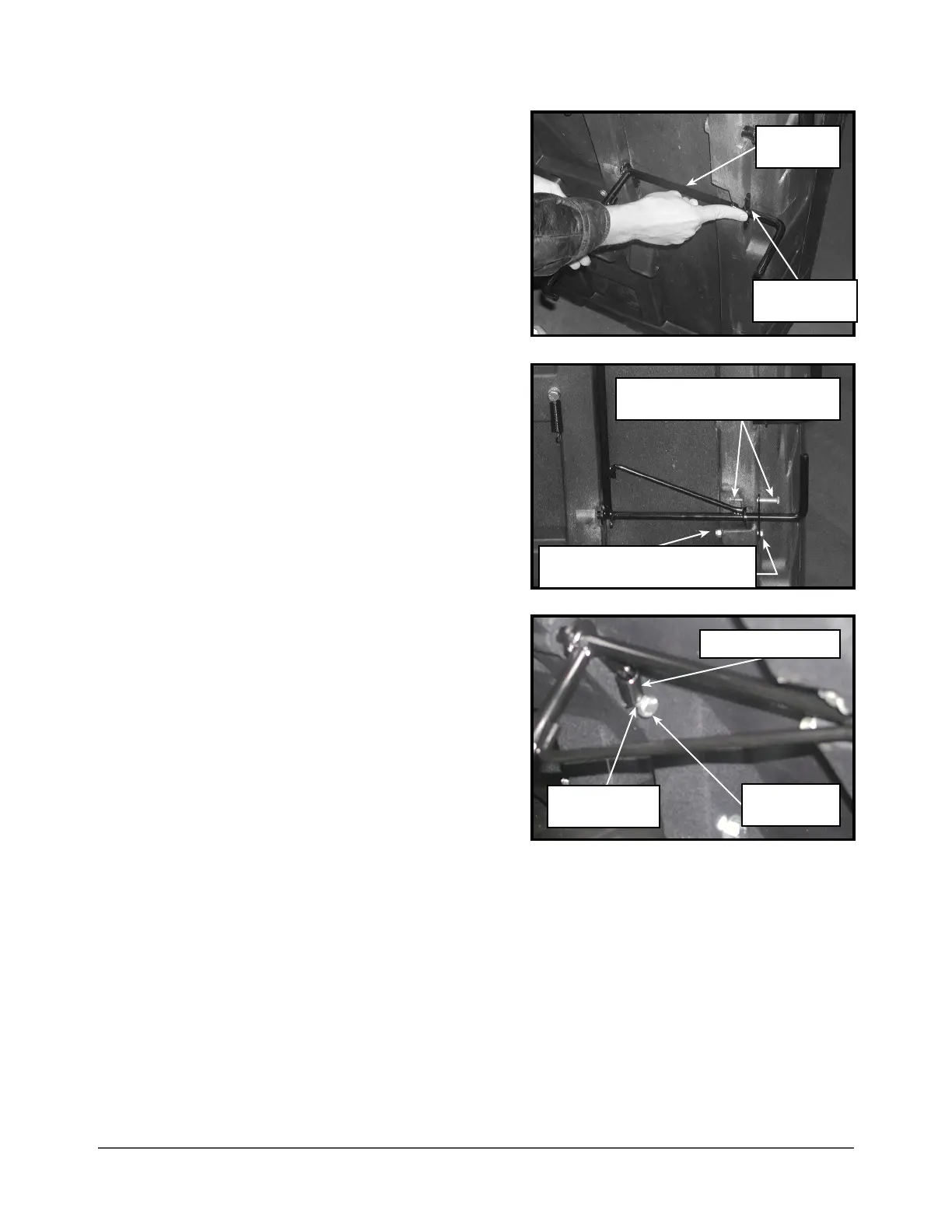

12. Place plate pivot slider (p/n:06148) on prop rod
13. Secure plate pivot with (1) 1/4” X 1 1⁄2” bolt
(p/n:06178) and 1/4” nylock nut (p/n: 001203p) at
the top and (1)1/4” X 2 1⁄2” bolt (p/n: 06155) and
1/4” nylock nut on the bottom.
14. Attach ” spring (p/n: 06144) onto (1) 3/8” X 1” bolt
(p/n: 06153) placing a 3/8” flat washer
(p/n: 001614P) between the head of the bolt and
the spring. Thread the bolt into the insert closest
to the rear of the dump bed.
15. Attach the spring (p/n: 06144) to the prop rod.
16. Lower dump bed.
1⁄4” X 2 1⁄2” bolt (p/n:06155) and
1⁄4” nylock nut (p/n:001203p)
1/4” X 1 1⁄2” bolt (p/n: 06178)
and 1/4” nylock nut (p/n: 001203p)
Plate pivot slider
(p/n:06148)
Prop rod
(p/n:06141)
3/8” X 1” Bolt
(p/n:06153)
Spring (p/n:06144)
Flat Washer
(p/n:001614P)
Manual# 06367
Yerf-Dog Retriever CUV Owners Manual
Model# 34851 • Revision C - 2/05
