Page 36 www.yerf-dog.com
For questions in USA, 888-926-6554
Manual# 06367
Yerf-Dog Retriever CUV Owners Manual
Model# 34851 • Revision C - 2/05

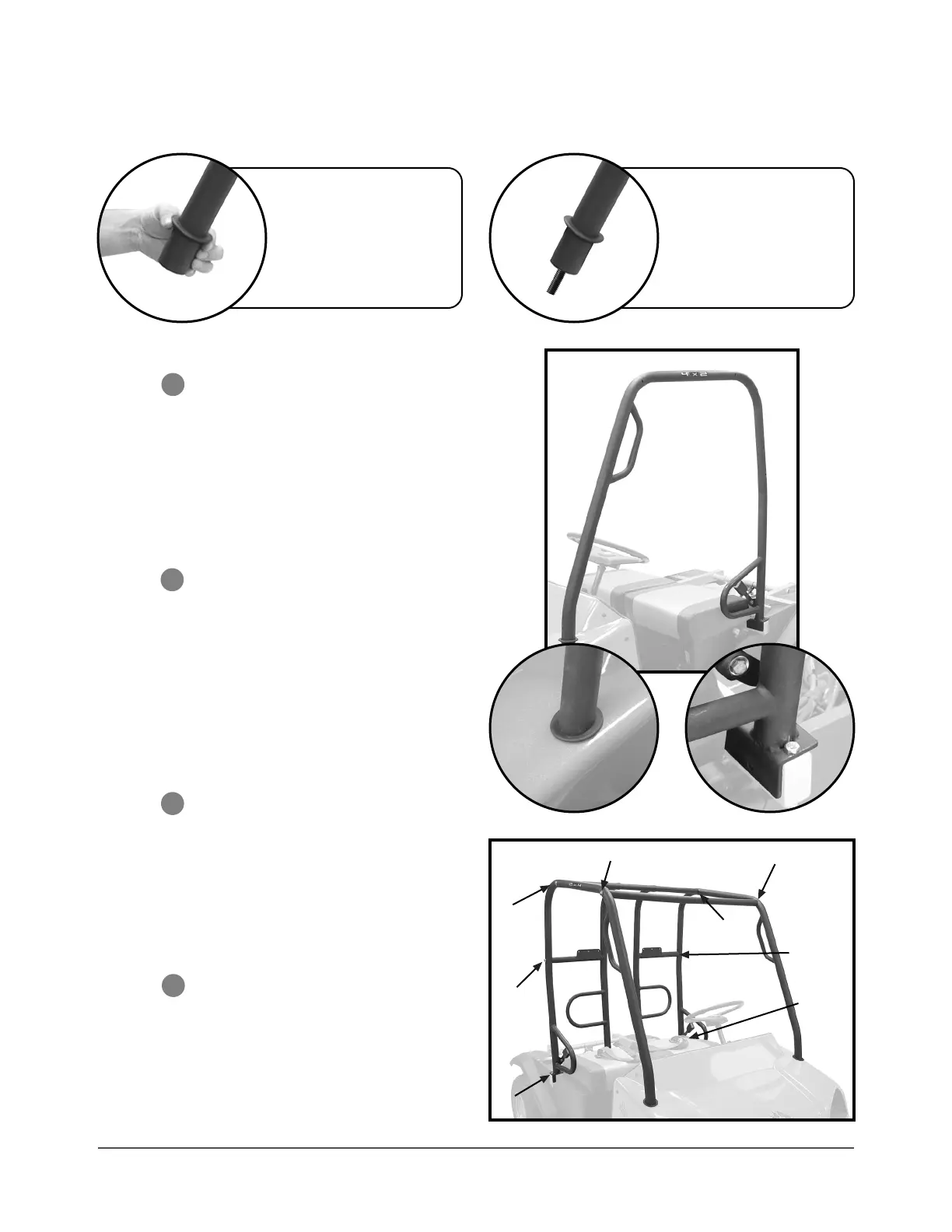

BRUSH GUARD ATTACHMENT - PRELIMINARY STEPS
Insert 3/8” stud (#10) into
threaded mounting hole
at front end of both driver
and passenger side
brush guards before
attaching to unit.
BRUSH GUARD ATTACHMENT
STEP 1 - DRIVER SIDE
Attach Driver Side Brush Guard to the
vehicle frame at rear using Bolts (#07),
Washers (#08) and Nuts (#09). Attach at
the front from underneath the fender using
Nuts (#09). Note: 33 ft. lbs of torque
required
Slide rubber grommets
onto front end of both
driver and passenger
side brush guards before
attaching to unit.
BRUSH GUARD ATTACHMENT
STEP 2 - PASSENGER SIDE
Attach passenger Side Brush Guard to the vehicle
frame at rear using Bolts (#07), Washers (#08)
and Nuts (#09). Attach at the front from underneath
the fender using Nut (#09). Attach to Rear Brush
Guard using: Bolts (#07). We have found that it
aids in assembly to insert bolts as shown in the
following steps.
BRUSH GUARD ATTACHMENT
STEP 4 - CROSS MEMBER
Attach Cross Member to driver and passenger
side brush guards using Bolts (#07).
BRUSH GUARD ATTACHMENT
STEP 3 - REAR
Attach Rear Brush Guard to the vehicle frame at
the bottom using Bolts (#07), Washers (#08) and
Nuts (#09). Attach to passenger side brush guard
using Bolts (#07). Note: Lift seats for easier access
to mounting holes.
Step 1
Step 2
Step 3
Step 4
Step 1
Step 2
Step 3
Step 4
