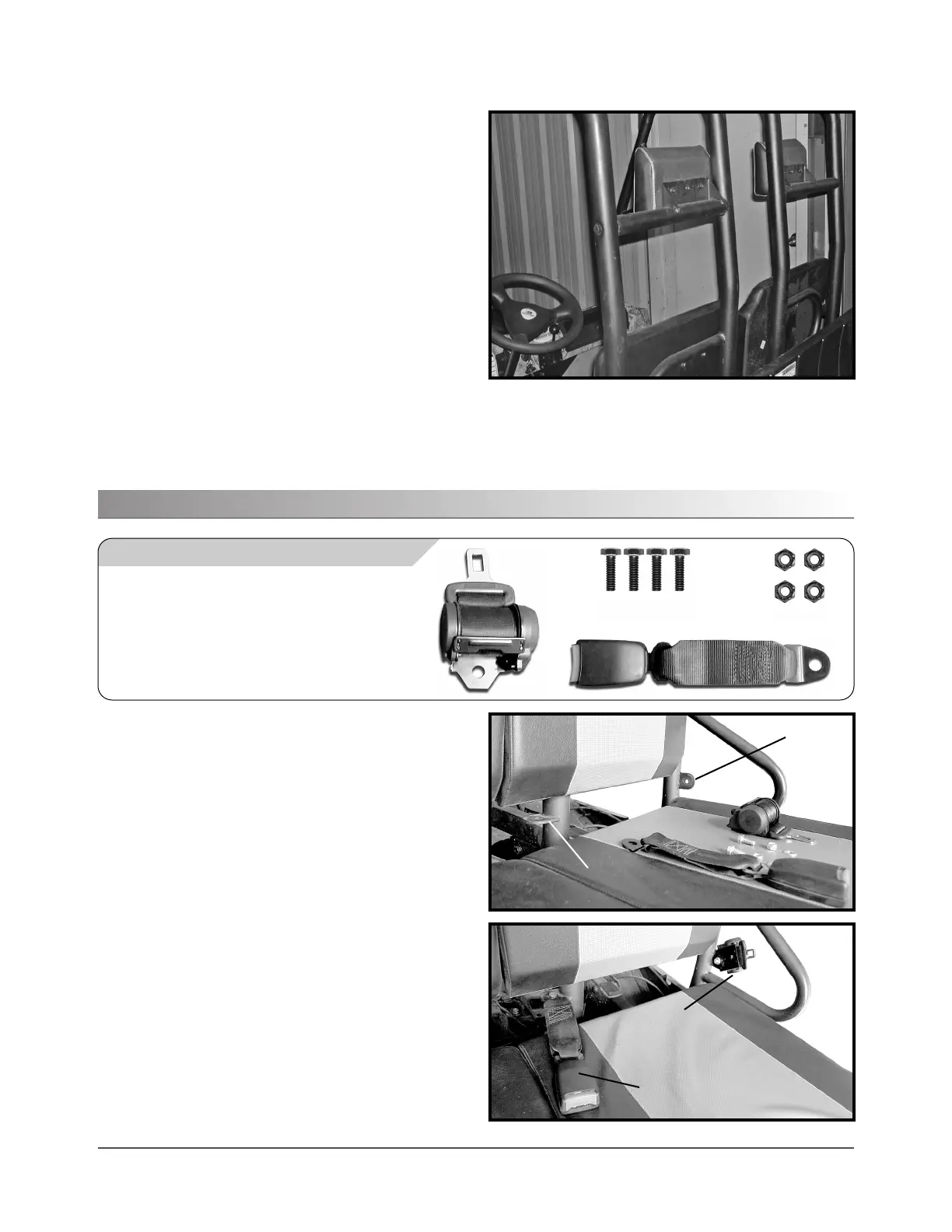

LUMBAR SEAT PAD AND
HEADREST ATTACHMENT
Attach Lumbar Seat Pads and Headrests to the
Rear Brush Guard using Machine Screws (#16).
SEATBELT HARDWARE
(4) 7/16” x 1” Bolts
(4) 7/16” Locknuts
(2) Retractable Connectors
(2) Fixed Receptors
SEATBELT INSTALLATION
FIXED RECEPTOR
1) Raise and lock dump bed in tilted position.
2) Position fixed receptor so red button faces
upward (see image at right).
3) Place fixed receptor tab on top of horizontal tab
(on rear base of brush guard) and align holes.
4) Place washer on bolt and insert bolt from the
top of the tab down.
5) Place nut on bolt and tighten.
RETRACTABLE CONNECTOR
1) Position retractable connector so the barrel
faces toward the outside of the vehicle.
2) Angle the connector at approximately a 30 to
45 degree angle from horizontal.
3) Place retractable connector tab on the inside
of the vertical tab and align holes.
4) Place washer on bolt and insert bolt from the
inside of the tab outward.
5) Place nut on bolt and tighten.
6) Repeat procedure for other seat.
Horizontal Tab
Vertical Tab
Retractable
Connector
Fixed
Receptor
