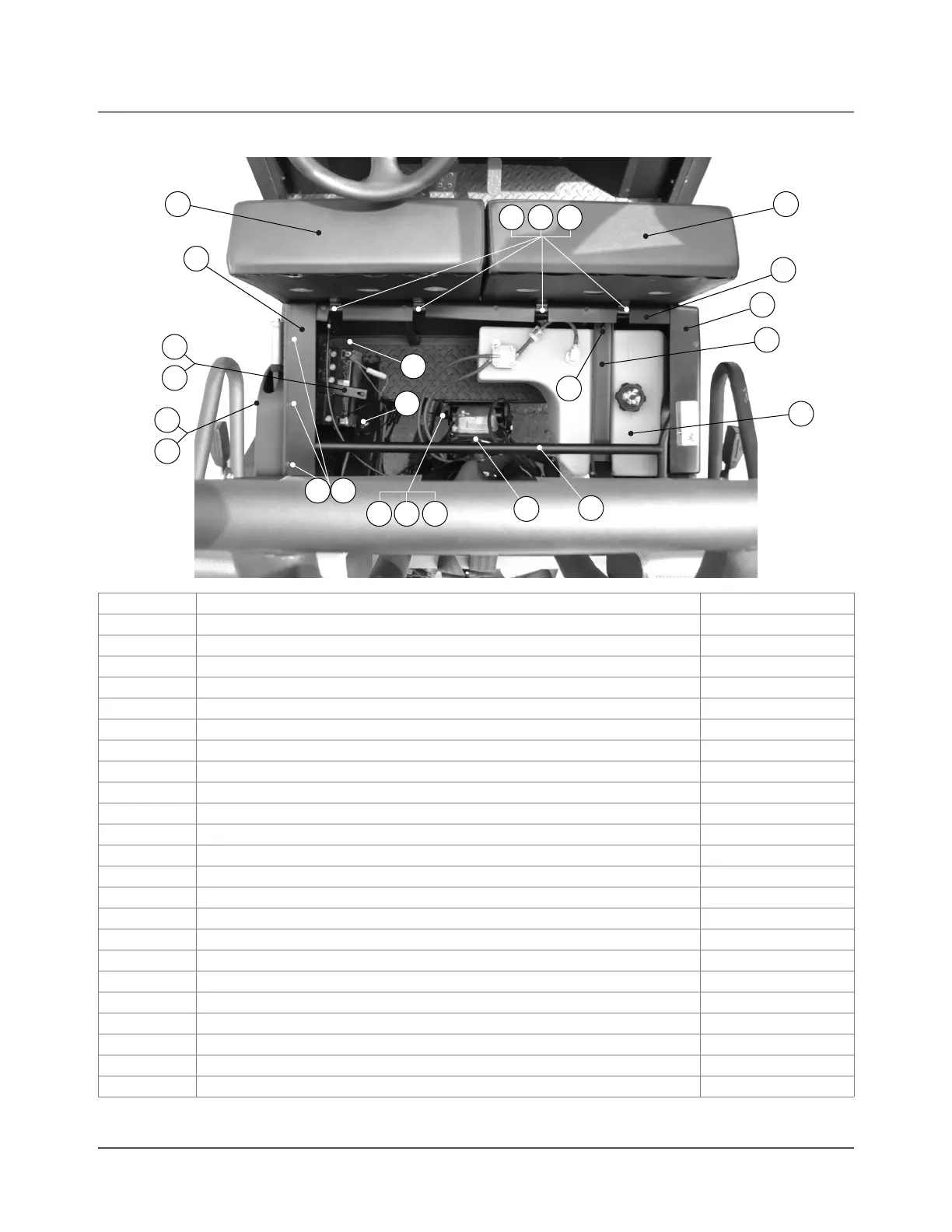

Yerf-Dog Retriever CUV Owners Manual
Model# 34851 • Revision C - 2/05 Manual# 06367
Item
1
2
3
4
5
6
7
8
9
10
11
13
14
15
16
17
18
19
20
21
22
23
24
DESCRIPTION FFA PART #
PANEL; FRONT 04135
PANEL; RIGHT SIDE 04134
PANEL; INNER LEFT SIDE 04136
SIDE PANEL SPACER 04734
SCREW; TH; 1/2-20X1/2; BLACK ZINC 05325
ASSY; SEAT; CUSHION 04139
BOLT; 1/4 X 1 05320
SPACER; RUBBER; SEAT 04698
FUEL TANK ASSY 04141
CLAMP BAR; FUEL TANK KIT; BLACK 04142
BOLT; 1/4-20X1/2; BLACK ZINC 05197
BATTERY MOUNT BRACKET 04704
BOLT; 1/4-20X1; BLACK OXIDE 04682
BOLT; 5/8X7-1/2; GR5; SWINGARM 04672
WASHER;FLAT;5/8;NARROW;BLACK OXIDE H56251W
NUT;NYLOCK;5/8 04673
CLAMP;1"ID; ED BLACK 04699
BOLT; 1/4X1-1/4 04766
SCREW; 1/8X3/16; GROUND 05313
RIVET; 1/8X1/2; BLACK OXIDE; CUV 05193
WASHER; FLAT; 1/8; BLACK OXIDE 05194
CABLE THROTTLE; CUV 04144
ASSY; SEAT FRAME; BLACK 04662
11
10
2
1
6
9
6
3
7
16 17
14
13
18
8
19
4
5
20
21
15
23
24
22
