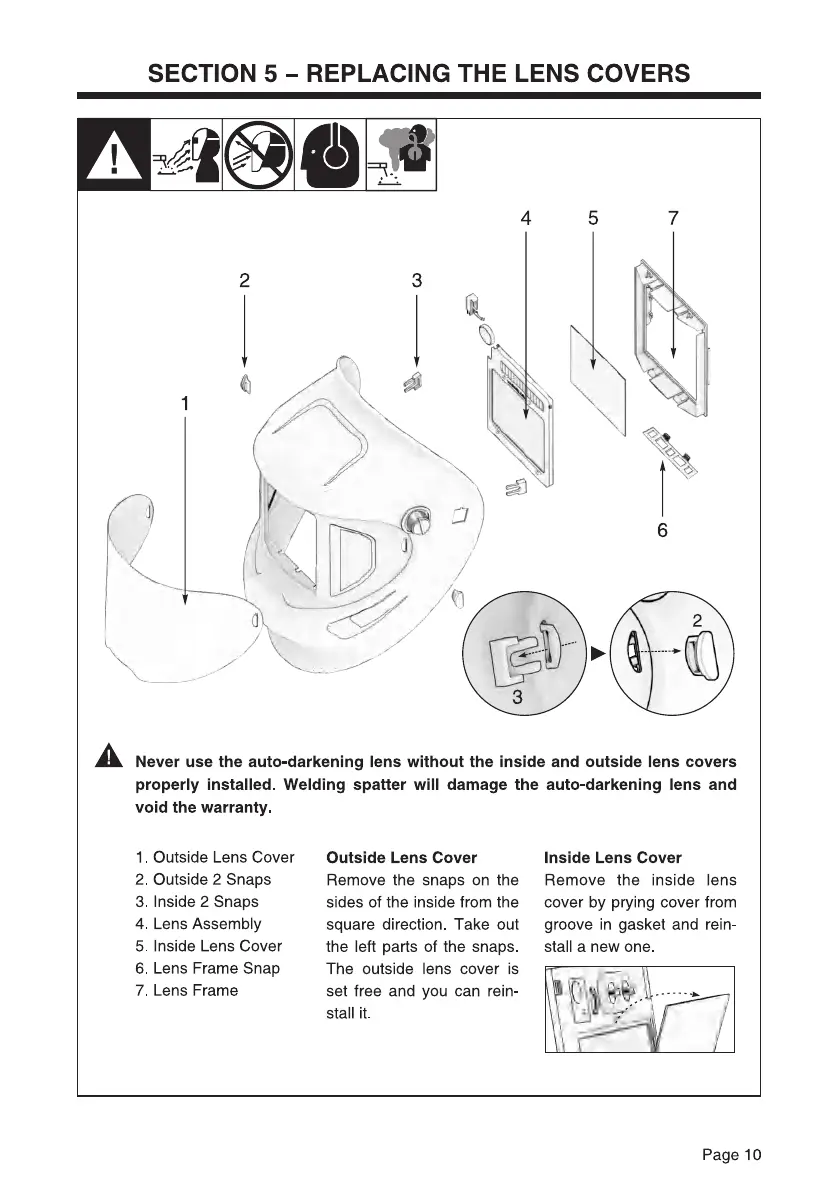

SECTION 5 - REPLACING THE LENS COVERS
5
2
1
3
4
3
7
6
2
Never use the auto-darkening lens without the inside and outside lens covers
properly installed. Welding spatter will damage the auto-darkening lens and
void the warranty.
Outside Lens Cover
Outside 2 Snaps
2
3. Inside 2 Snaps
4
Lens Assembly
5. Inside Lens Cover
6. Lens Frame Snap
7 Lens Frame
Outside Lens Cover
Remove the snaps on the
sides of the inside from the
square direction. Take out
the left parts of the snaps.
The outside lens cover is
set free and you can rein-
stall it.
Inside Lens Cover
Remove the inside lens
cover by prying cover from
groove in gasket and rein-
stall a new one.
