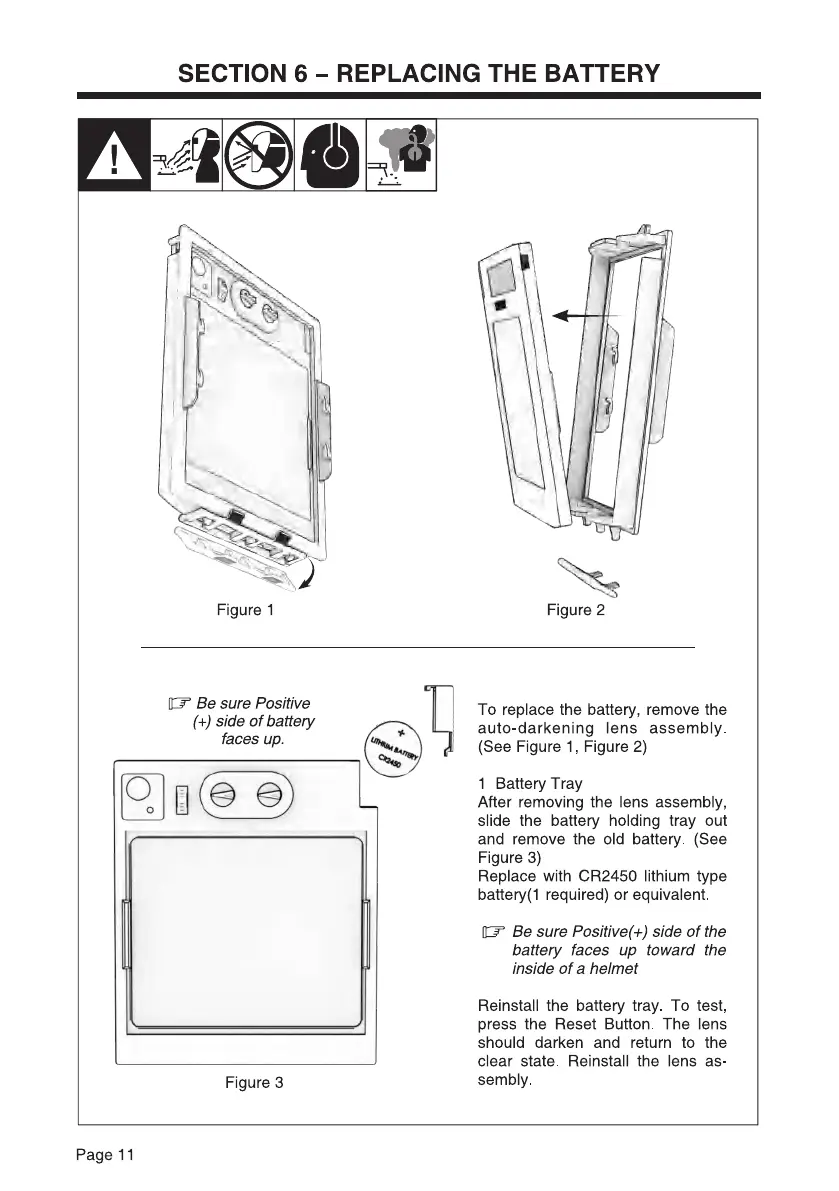

SECTION 6 - REPLACING THE BATTERY
Figure 1
[13 Be sure Positive
(+) side of battery
faces up.
Figure 3
Page II
Figure 2
To replace the battery, remove the
auto-darkening lens assembly
(See Figure 1, Figure 2)
I Battery Tray
After removing the lens assembly,
slide the battery holding tray out
and remove the old battery. (See
Figure 3)
Replace with CR2450 lithium type
battery(l required) or equivalent.
[13 Be sure Positive(+) side of the
battery faces up toward the
inside of a helmet
Reinstall the battery tray. To test,
press the Reset Button. The lens
should darken and return to the
clear state. Reinstall the lens as
sembly
To Next Page
