Technical Note 18
ET-9EN / 9EAFructose Dispenser

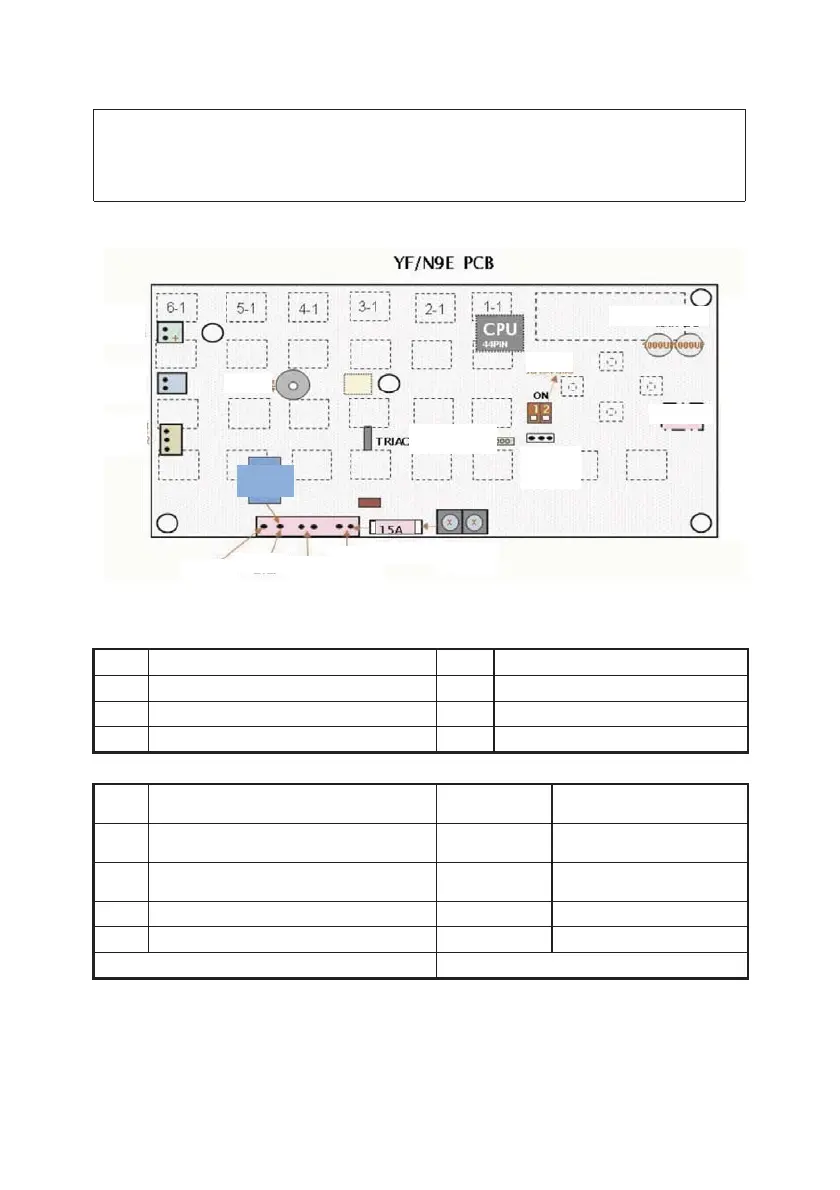

IC board [44 pins] Wiring Diagram
ET-9EN Fructose Dispenser IC board [updated 2007.6] Wiring Diagram
---------------------------------------------------------------------------------------------------
New IC board settings, error code descriptions:
E-rr Abnormal voltage E-CN Counter electric eye failure
E-17 Cannot read parameters E-18 Cannot write parameters into memory
E-19 Computer board (IC board) failure OPEN Temperature sensor open circuit
CLOS Temperature sensor short circuit
Item Function
Recommended
Value
Settings
P1 Define fructose output ratio: 1-2000 100
Press  or  to increase or
decrease fructose output ratio
P2 Define viscosity of fructose 5
P1 Æ long press for 5 seconds
to enter Æ P2
Normal state of Switch SW1, 2 is OFF
Temperature sensor cord
Liquid level cord
Counter electric eye
SENSOR
Buzzer
Switch
Plug for external
connection
Filter capacitors
Reserved
220V/110
V selector
terminal
Transformer
Power
Motor
P.S. External transform is not required
Reserved
Reserved
ACN
power
FUSE
