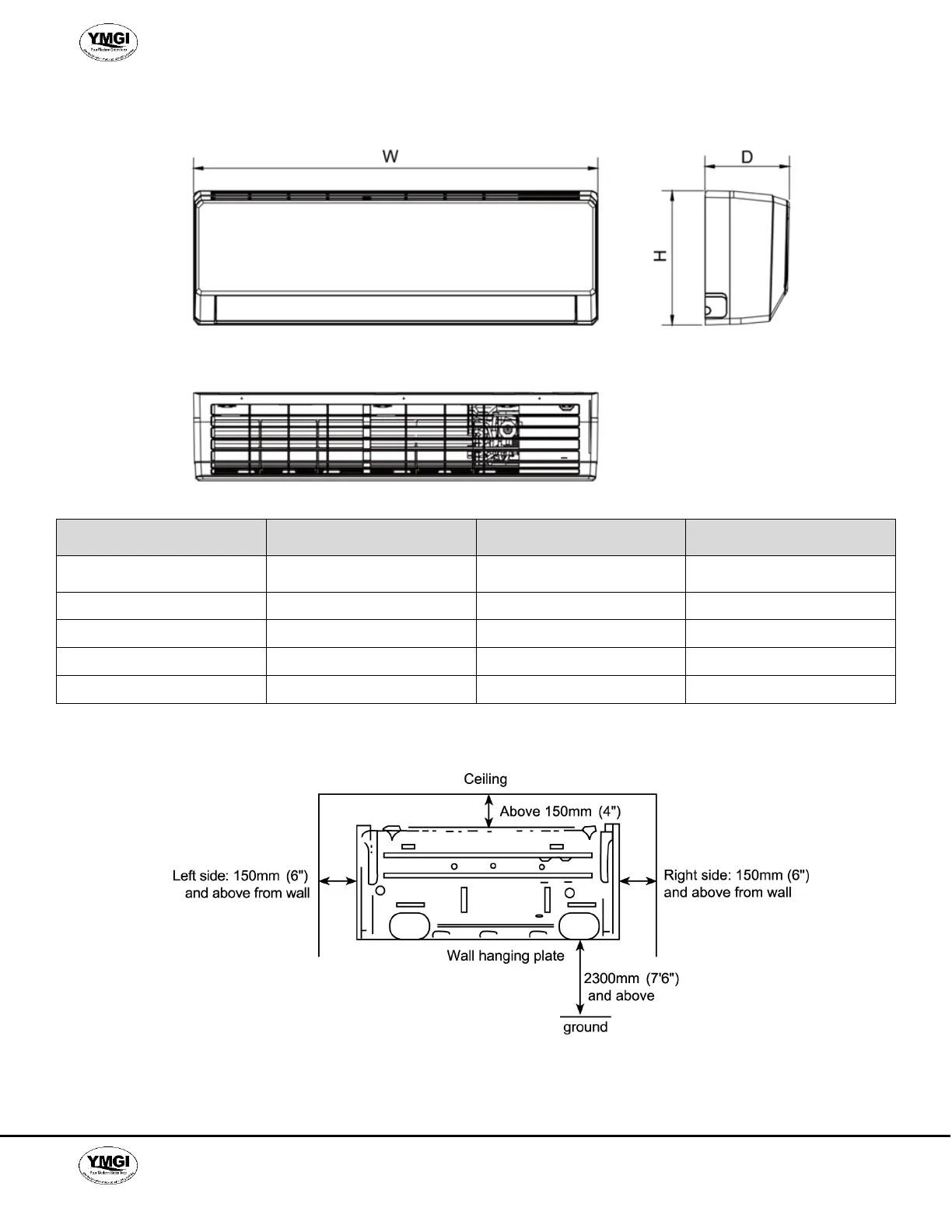

UNIT ENGINEERING SUBMITTALS - DIMENSIONS – INDOOR UNITS
Model
W
inches
H
inches
D
inches
WMMS-09E-V2A(57)2
WMMS-12E-V2A(57)2
31
11
8
WMMS-18E-V2B(57)3
35
11
8
WMMS-24E-V2B(57)3
43
12
9
WMMS-30E-V2B(57)3
46
15
12
WMMS-36E-V2B(57)3
49
16
13
MOUNTING BRACKET CLEARENCE
Note: Actual unit/part may appear differently than what is the above illustration.
