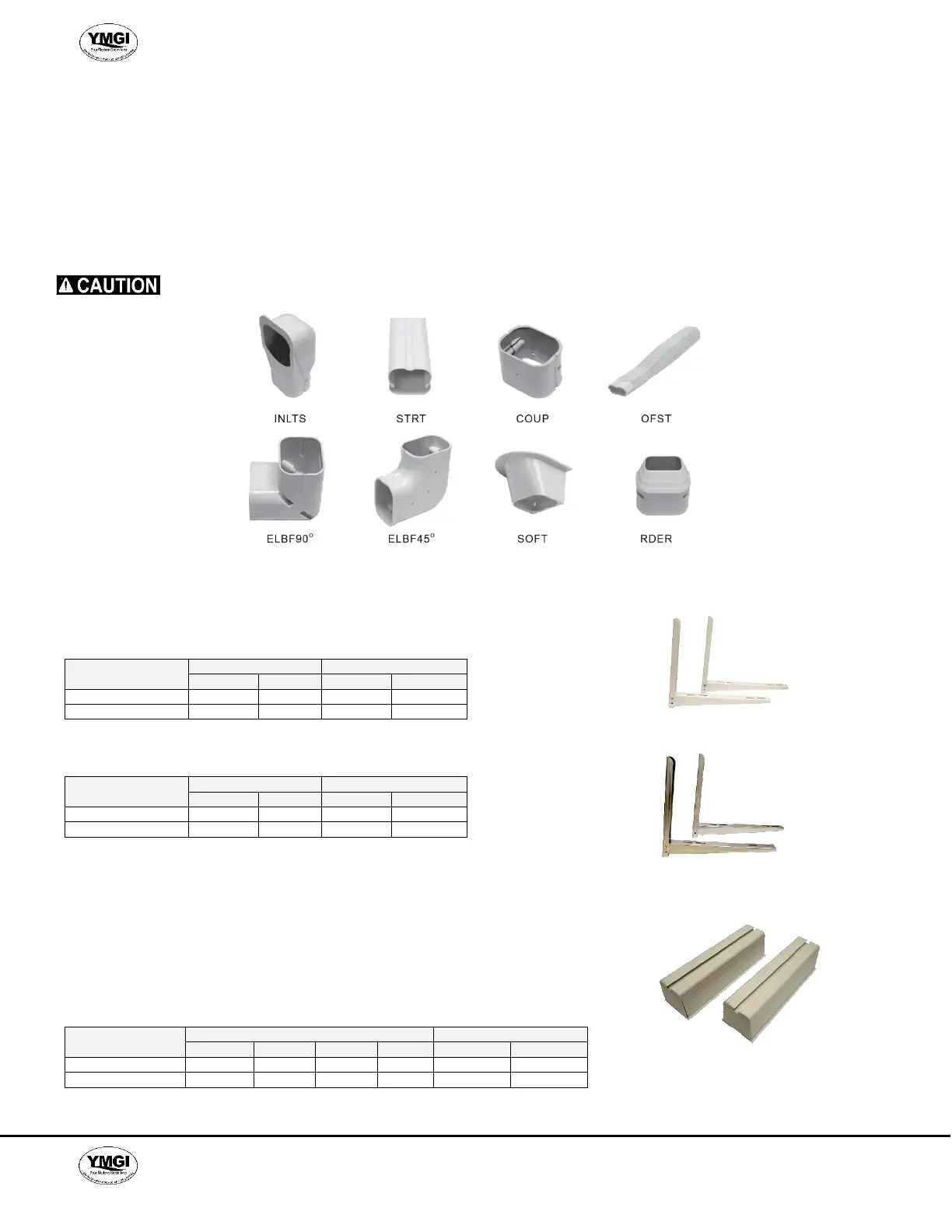

INSTALLATION OF ACCESSORIES
Layout line set covers before installing copper/wires.
Seal Copper Line Set/Wire Cable/Drain Hose Line Combination:
 Use factory-recommended components, as briefly illustrated below.
 Cover line set in a sequence, either from indoor to outdoor, or the other way.
 Secure line set covers onto the wall using factory-recommended accessories.
LINE SET COVERS
Do not damage line sets.
OUTDOOR UNIT FOOT RISER OR BRACKETS
BRKT-XXXX-SC1
 Made of steel.
 Coated with weatherproof polyester powder.
Model
Size(Inch)
Capacity
A
B
LBs
Btu/h
BRKT-0918-SC1
17.7
15.4
320
09K-18K
BRKT-1860-SC
21.7
18.3
360
18K-60K
BRKT-XXXX-ST1
• Made of stainless steel.
Model
Size(Inch)
Capacity
A
B
LBs
Btu/h
BRKT-0918-ST1
17.7
15.4
320
09K-18K
BRKT-1860-ST1
21.7
18.3
360
18K-60K
RIST-XXXX-PVC
 Foot Riser
 Accessories: End Caps (Optional)
 Shock-proof PVC, Weatherproof & UV resistant.
 Supplied with fastening screws and anchor bolts.
 Easy to install.
 Honeycomb structure acts as an anti-vibration & humming
absorption for quiet operation.
Model
Size(Inch)
Capacity
A
B
C
D
LBs
Btu/h
RIST-0918-PVC
14.2
3.7
3.1
4.1
220
09K-18K
RIST-1860-PVC
17.7
3.7
3.1
4.1
260
18K-60K
