YMGI WMMS-09EW-V2B(59)2 User Manual

INSTALLER'S INSTRUCTION
P13 OF 46
YMGI, Engineered Comfort Products for A Sustainable and Efficient Green World !
1) Mounting Indoor & Outdoor
Units and Running
Piping/Wiring
Ruler (Not Shown)
Stud-Finder
Dry-Wall Saw
Electric Drill
3" Hole Saw
Drill Extension
Hammer Drill and Bit (Not Shown)
Measuring Tape
Level
Flash Light
Screw Driver (Phillps and Flat)
Hammer
Knife
Scissors
Goggled Glass
Mask
Gloves
Ladder
2) Refrigeration Related Work
3) Electrical Related Installation
Flat Surface Wrentch (Two)
Flare-Nut Tool Set (Not Shown)
Hex Head Key Set
Torch for AC Application (Not Shown)
Heat Absorbtion Flux
Nitrogen (Not Shown)
Soap Bubble (Not Shown)
Vacuum Pump
Helium Leakage Check (Not Shown)
Manifold
Wire Cutter
Wire Stripper
Sharp Plier
Cable Ties
Black Tape for Electrical Use
lectrical Meter
Clamp Meter (Not Shown)
Manifold
Infra Thermometer (Not Shown)
4) Trial Running Units and
Inspection

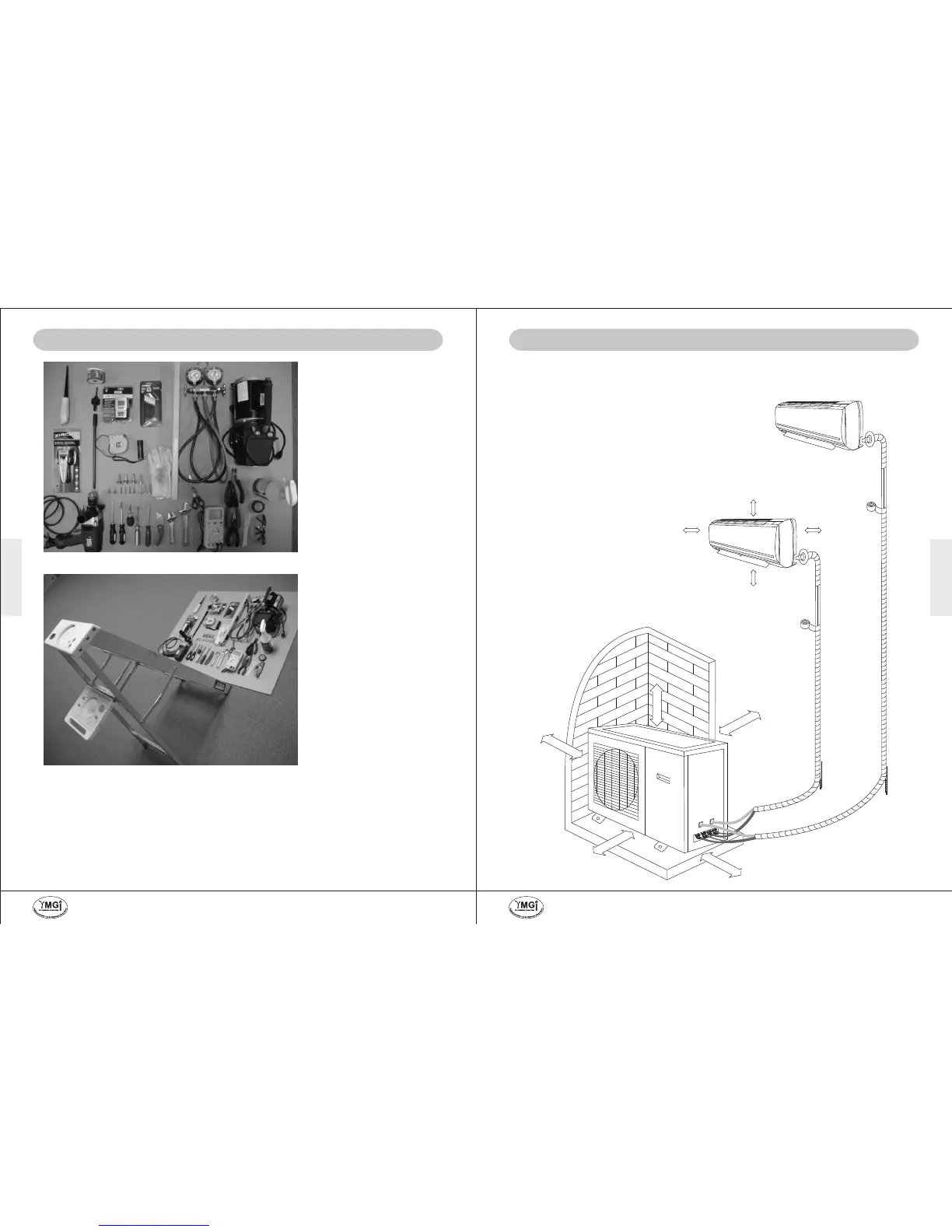

RECOMMENDED TOOLS FOR INSTALLATION
INSTALLER'S INSTRUCTION
P14 OF 46
YMGI, Engineered Comfort Products for A Sustainable and Efficient Green World !
SYSTEM LAYOUT & INSTALLATION CLEARANCE
CLEARANCE REQUIRED AROUND UNITS-DUAL ZONE-2
OVER 20"
OVER 10"
OVER 10"
OVER 8"
OVER 10"
Indoor unit A
Indoor unit B
OVER 2"
OVER 4" OVER 4"
OVER 80"

YMGI WMMS-09EW-V2B(59)2 Specifications

General

Brand	YMGI
Model	WMMS-09EW-V2B(59)2
Category	Air Conditioner
Language	English
