YOKOGAWA 700938 User Manual

10
IM700938-01E

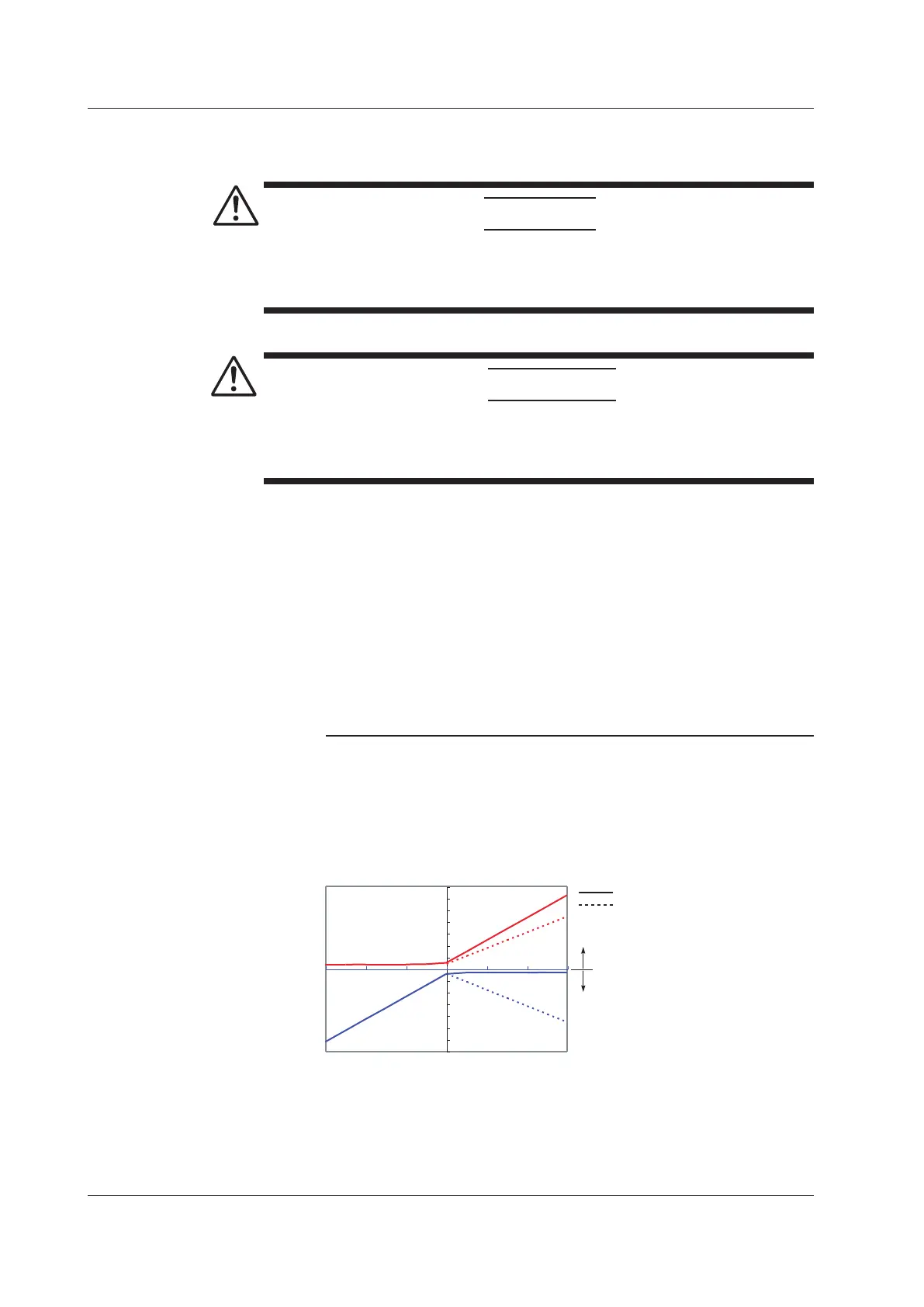

Measurement Procedure
Measurement Procedure
Preparations
CAUTION
Before turning on the power, make sure that the voltage of the power
supply being used matches the supply voltage indicated on the rear panel
of the unit.
French
ATTENTION
Avant la mise sous tension, assurez-vous que la tension de l’alimentation
utilisée corresponde à la tension indiquée sur le panneau arrière de
l’appareil.
1
Turn the power switch off and connect the power cord.
2
Insert the power supply plug for the DL Series probe that you are using
into the power connector on this instrument.
3
Turn the power switch ON, and check that the front panel power indicator
lights.
Measurement Procedure
Refer to the user’s manual on how to use the various probes.
Note
• When using current probes, you may not be able to use a second current probe
simultaneously with the 700938 depending on the value of the curernt being
measured.
• The current consumption of the probe is dependent upon the value of the current
being measured. Do not let the total current consumption of the probe exceed the
rated output current of the 700938. See the examples below.
701930
Current consumption (mA)
Value of the current being measured (A)
DC
AC (f=50Hz)
Positive current
Negative current
-700
-600
-500
-400
-300
-200
-100
0
100
200
300
400
500
600
700
-300 -200 -100 0 100 200
300
Continued on next page
