1-2
IM WT3001E-51EN

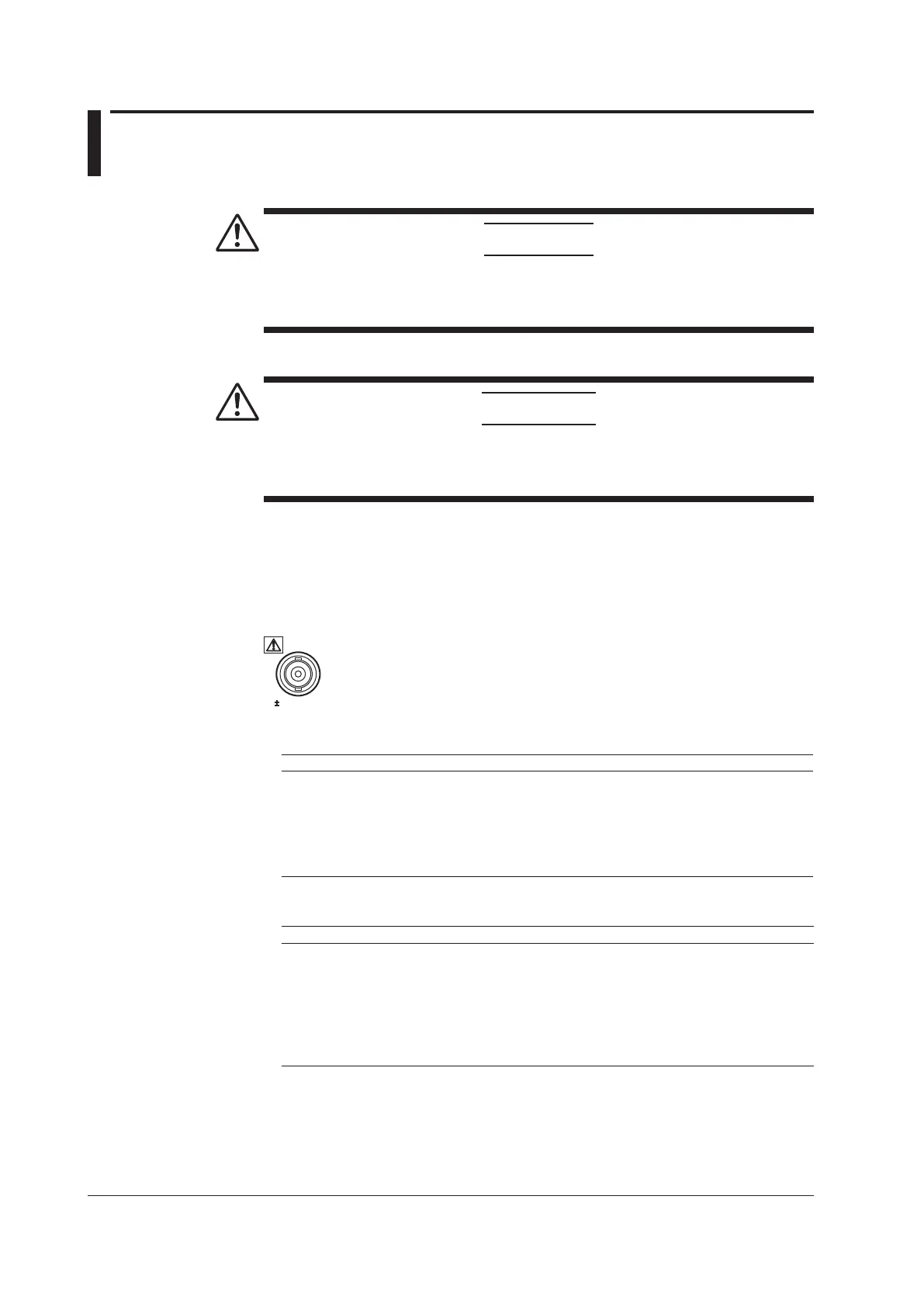

1.2 Applying Signals of Rotating Speed and Torque
CAUTION
Applying a voltage exceeding the maximum allowable input to the revolution signal
input connector (SPEED) or torque signal input connector (TORQUE) can damage
the instrument.
French
ATTENTION
L’application d’une tension supérieure à l’entrée maximale admissible au
connecteur d’entrée de signal de régime (SPEED) ou au connecteur d’entrée de
signal de couple (TORQUE) peut endommager l’instrument.
Revolution Signal Input Connector (SPEED)
Input the signal output from the revolution sensor (a DC voltage (analog signal) or a
pulse signal that is proportional to the rotating speed of the motor) according to the
following specifications.
SPEED
20V MAX
DC Voltage (Analog Input)
Item Specifications
Connector type
Input range
Effective input range
Input resistance
Maximum allowable input
Continuous maximum common mode voltage
Isolated BNC connector
1 V, 2 V, 5 V, 10 V, and 20 V
0% to ±110% of the measurement range
Approx.1MΩ
±22 V
±42 Vpeak or less
Pulse Input
Item Specifications
Connector type
Frequency range
Amplitude input range
Effective amplitude
Input waveform
Input resistance
Continuous maximum common mode voltage
Isolated BNC connector
2 Hz to 200 kHz
±12 Vpeak
1 V (peak to peak) or more
50% duty ratio rectangular wave
Approx.1MΩ
±42 Vpeak or less
