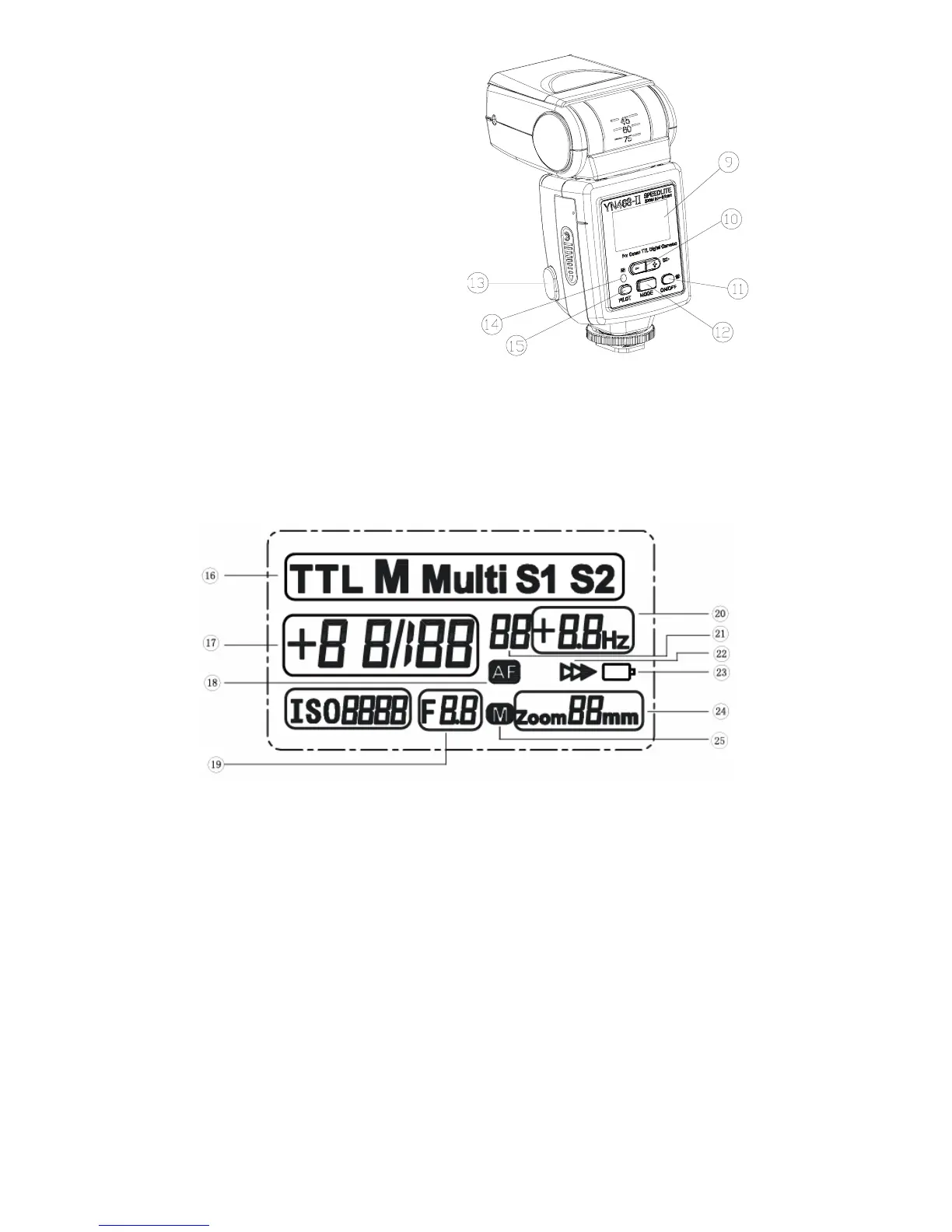

9. LCD panel
10. +/- buttons
11. Power Switch (ON/OFF)
12. Mode switch button
13. PC port
14. Charging indicator
15. Test button
LCD panel description
16. Mode indicator
17. Output/EV indicator
18. AF LED switch indicator
19. Aperture indicator
20. Output level fine / frequency indicator
21. Flash times indicator for Multi mode
22. Read-curtain indicator
23. Power low indicator
24. Flash head zooming indicator
25. Flash head manual zoom indicator
