York CSA 48 - Roof Curb Dimensions; Operating Weights (Lbs.)

254597-YTG-B-0507
26 Unitary Products Group
TABLE 26: OPERATING WEIGHTS (LBS.)
MODEL SIZE 3 TON 4 TON 5 TON
BASIC
UNIT
DH (Cooling Only) 565 610 645
DH
(Gas/Electric)
N04 605 - -
N06 - 660 -
N08 625 - 705
N10 - 680 715
D06 615 660 695
D10 635 680 715
OPTIONS
Economizer
50
26
18
23
28
92
10
5
Motorized Damper
Electric Heater
5 - 7 kW
10 - 15 kW
20 - 30 kW
ACCY.
Roof Curb
Barometric Relief / Fixed Air Damper
Belt-Drive Blower

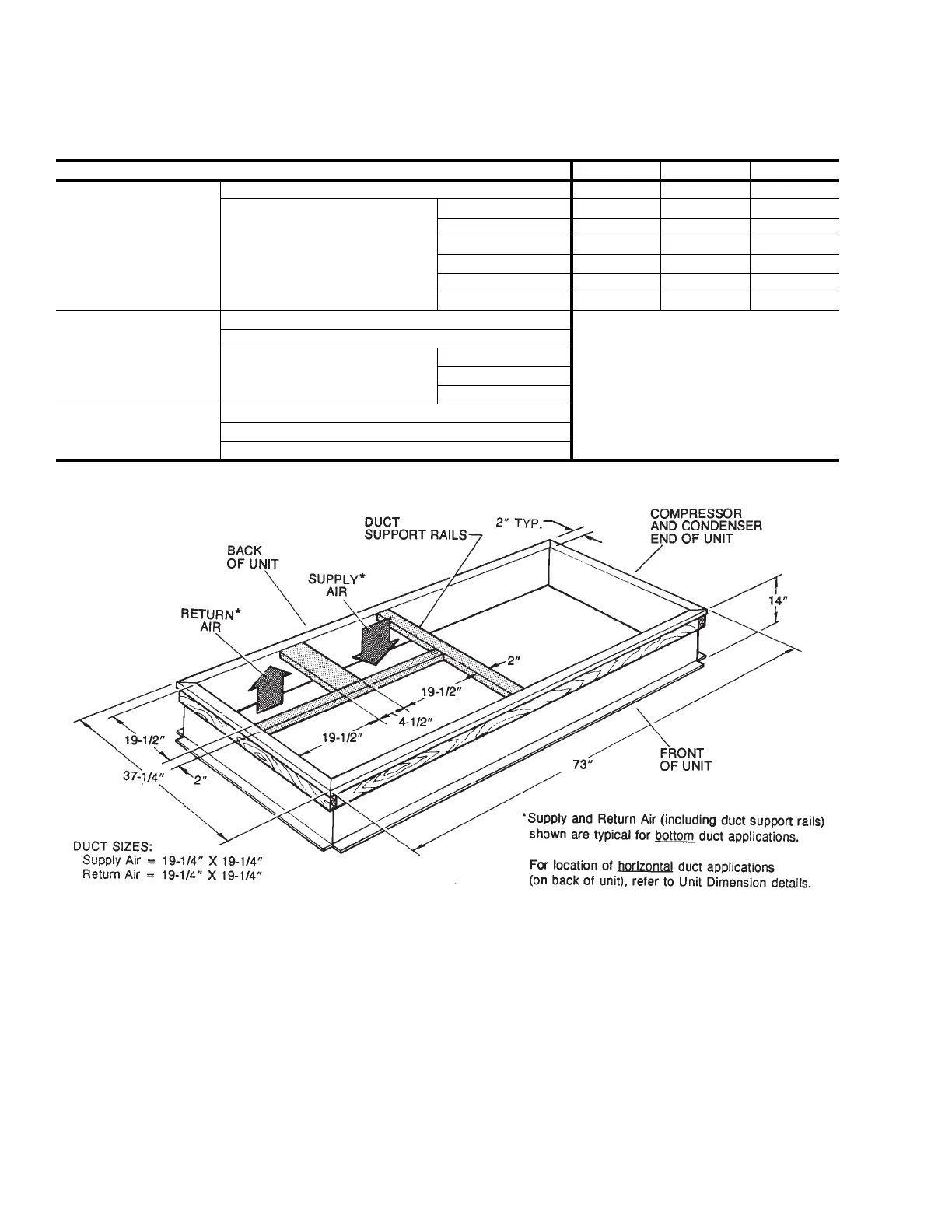

FIGURE 11 - ROOF CURB DIMENSIONS
