York E1FB180 - Charging Curves EFB180 A; Charging Curves EFB240 A

Unitary Products Group 15
035-16192-001-A-1001
150
200
250
300
350
400
50 60 70 80 90
Suction Pressure (psig)
Discharge Pressure (psig)
115 °F
105 °F
95 °F
85 °F
75 °F
ODDB
150
200
250
300
350
400
450
50 60 70 80 90
Suction Pressure (psig)
Discharge Pressure (psig)
115 °F
105 °F
95 °F
85 °F
75 °F
ODDB

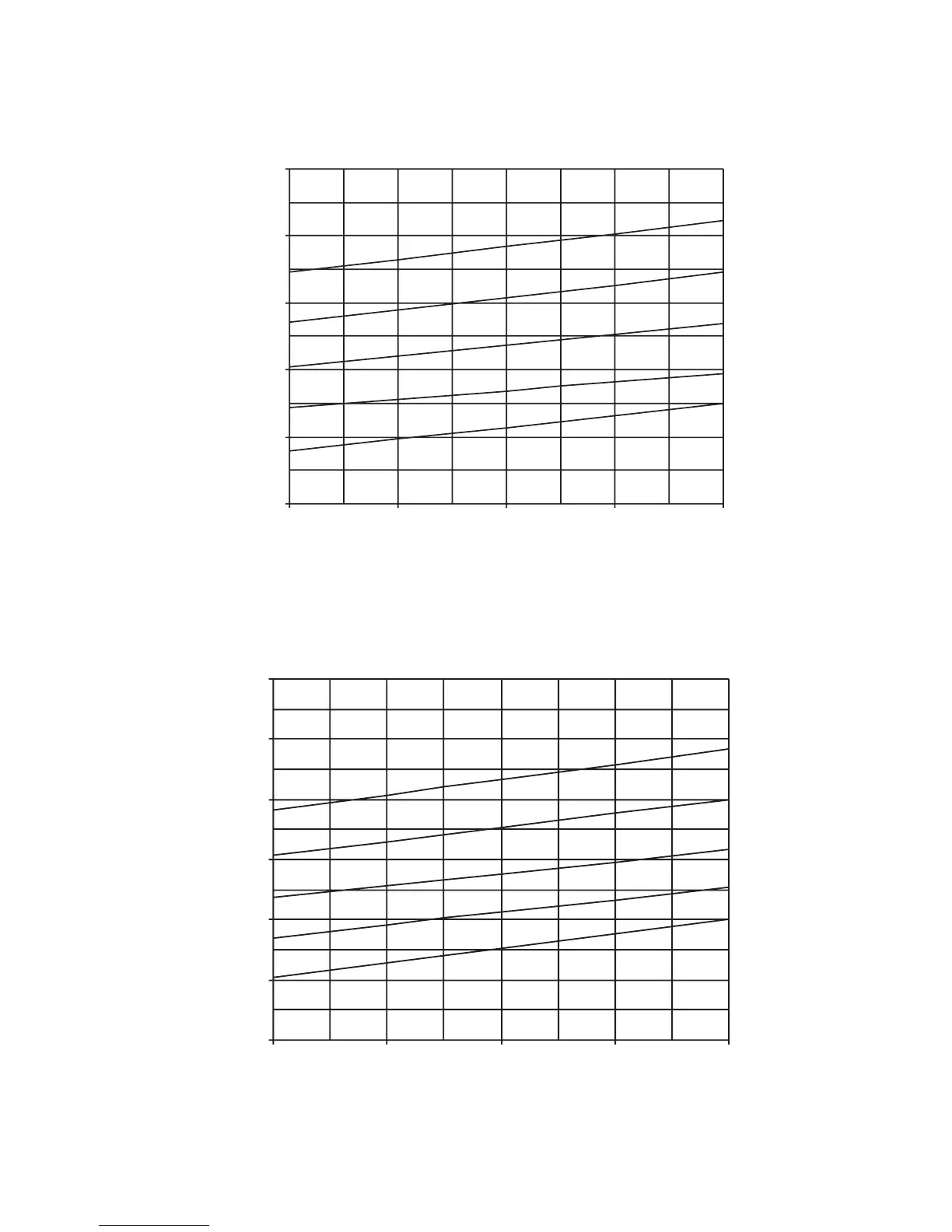

FIG.7 - COOLING MODE CHARGING CHART - EFB180A
FIG. 8 - COOLING MODE CHARGING CHART -EFB240A
