York E1FB180 - Heating Mode Charging Chart at 6600 CFM; Heating Mode Charging Chart at 6400 CFM

Unitary Products Group 17
035-16192-001-A-1001

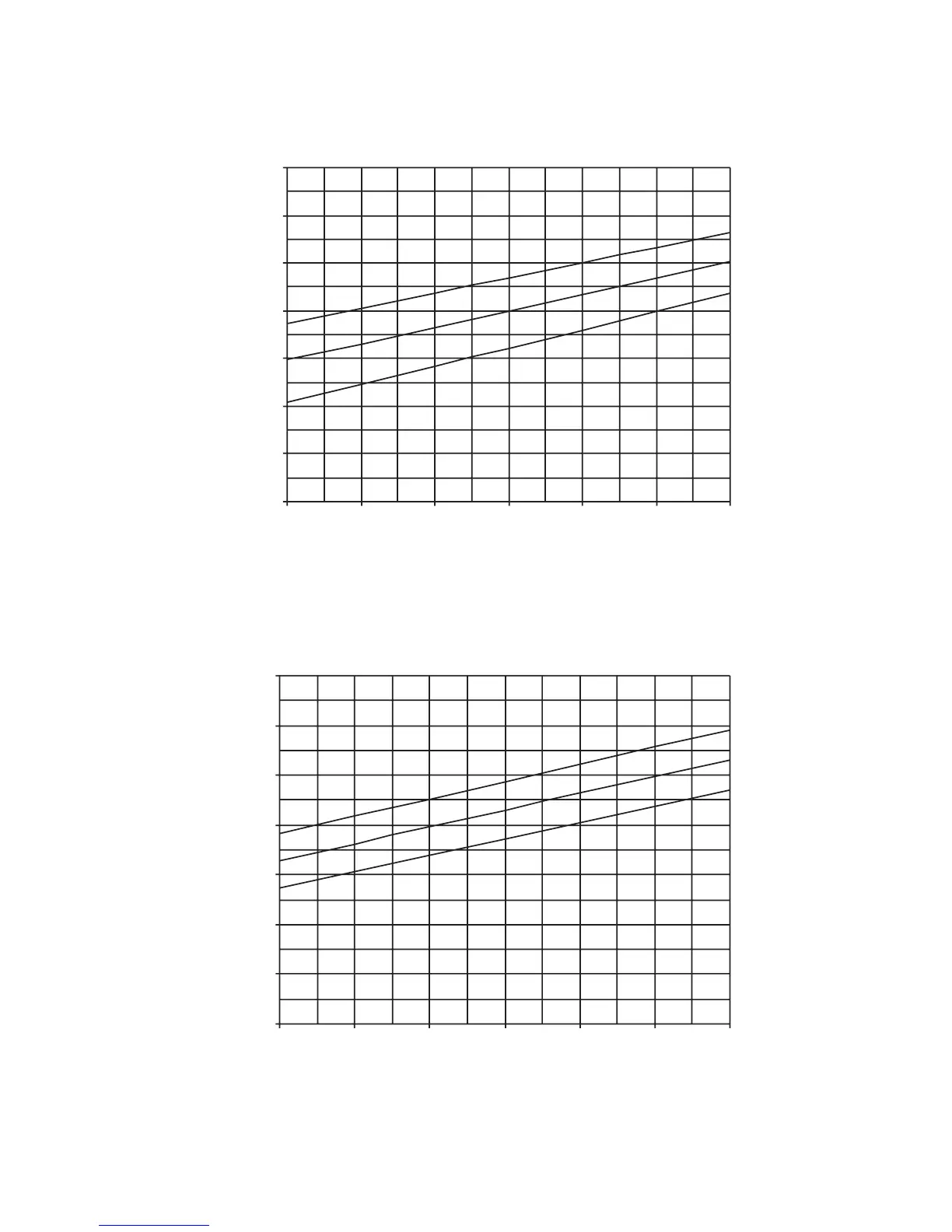

FIG. 11 - HEATING MODE CHARGING CHART AT 6600 CFM - EFB180A
50
100
150
200
250
300
350
400
30 40 50 60 70 80 90
Suction Pressure (psig)
Discharge Pressure (psig)
80 °F
70 °F
60 °F
IDDB
FIG. 12 - HEATING MODE CHARGING CHART AT 6400 CFM - EFB240A
50
100
150
200
250
300
350
400
30 40 50 60 70 80 90
Suction Pressure (psig)
Discharge Pressure (psig)
80 °F
70 °F
60 °F
IDDB
