ENJC 09, 12, 18, 24, 30, 36, 42 D
ENJC 48, 60 D

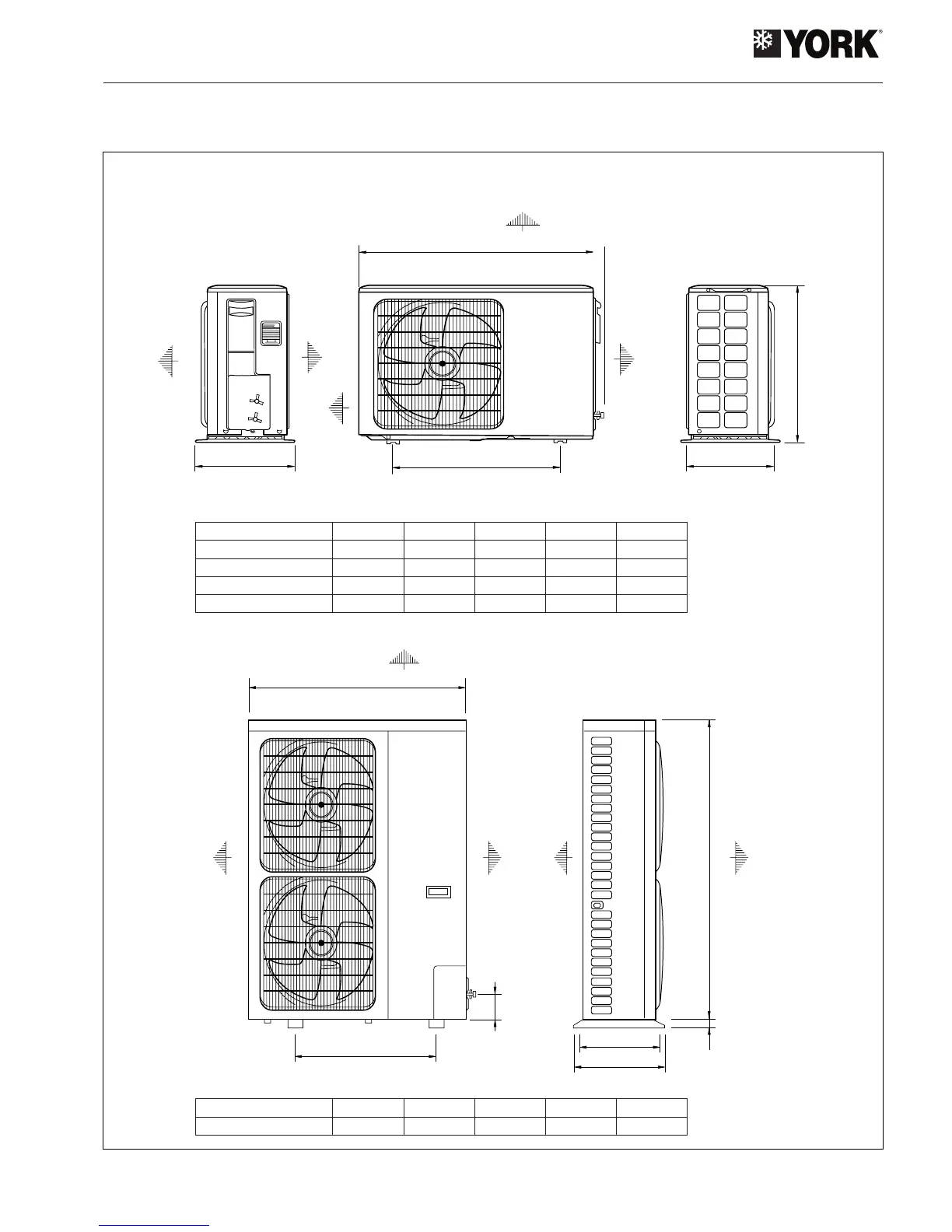

Fig. 6 (mm)
Dimensiones generales / General dimensions mm / Dimensions générales / Dimensões gerais
Dimensioni d’ingombro / Algemeine abmessungen / Algemene afmetingen / Generelle dimensjoner
A
B
C
E
D
2000
500
500
500
1000
70
B
A
E
C
26
D
500 500 500 2000
1000
A B C D E
ENJC - 09, 12 D 776 320 540 510 286
ENJC - 18 D 955 396 700 560 360
ENJC - 24, 30 D 980 427 790 610 395
ENJC - 36, 42 D 1107 440 1100 631 400
A B C D E
ENJC - 48, 60 D 1085 427 1365 620 395
