NOTE: All dimensions in inches.

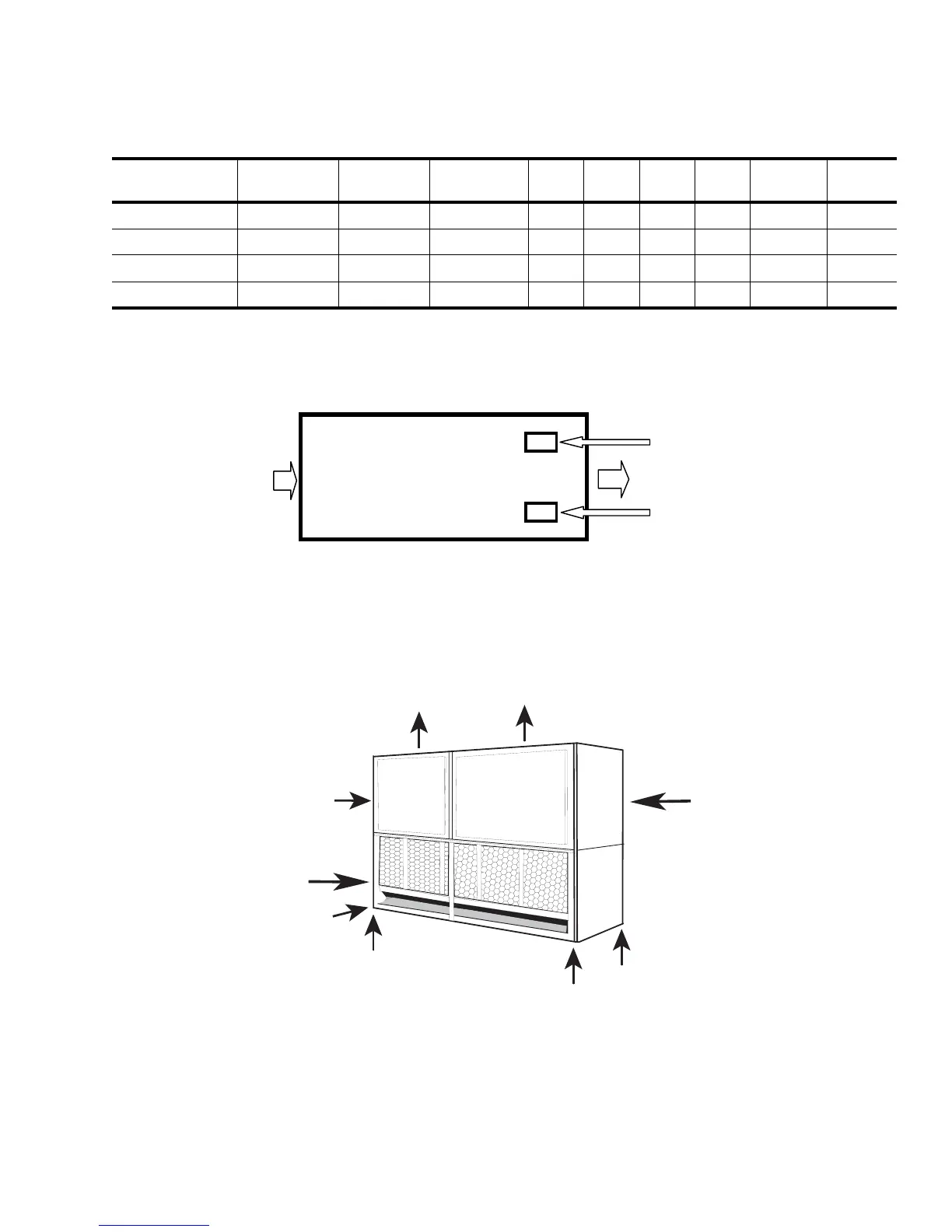

TABLE 26: INDOOR UNIT WEIGHTS AND CORNER WEIGHTS
Unit Size Position
Shipping
Weight
Operating A B C D
Unit
Length
Unit
Width
15 Ton Indoor Horizontal 720 830 178 216 239 197 89.5 59
15 Ton Indoor Vertical 720 830 198 224 217 191 89.5 29.5
20 Ton Indoor Horizontal 990 1115 212 195 340 368 100 74
20 Ton Indoor Vertical 990 1115 281 254 276 305 100 36.5
FIGURE 10 - HORIZONTAL APPLICATION CORNER WEIGHTS
DC
20 Ton Motor Location
B
Horizontal Application Corner Weights
15 Ton Motor Location
FIGURE 11 - VERTICAL APPLICATION CORNER WEIGHTS
Supply Air
15 Ton
Motor Location
20 Ton Motor
Location
Return Air
A
B
C
D
(Rear Corner)
