York MC62D3XC1 User Manual

813517-YTG-E-0114
Johnson Controls Unitary Products 11
Models
Dimensions
1
Refrigerant
Connections
2
Height Width Opening Widths Line Size
ABCDLiquidVapor
PC18A 17-3/4 14-1/2 13-3/8 13-1/2
3/8
3/4
PC18B 17 17-1/2 16-3/8 16-1/2
PC24A 21-7/8 14-1/2 13-3/8 13-1/2
PC24B 21-3/8 17-1/2 16-3/8 16-1/2
PC30A 21-7/8 14-1/2 13-3/8 13-/2
PC30B 21-3/8 17-1/2 16-3/8 16-1/2
PC32A 20 14-1/2 13-3/8 13-1/2
PC35B 18-7/8 17-1/2 16-3/8 16-1/2
PC35C 18-3/4 21 19-7/8 20
PC36A 23-7/8 14-1/2 13-3/8 13-1/2
7/8PC36B 23-1/8 17-1/2 16-3/8 16-1/2
PC36C 22-7/8 21 19-7/8 20
PC37A 23-7/8 14-1/2 13-3/8 13-1/2 3/4
PC42B 27-5/8 17-1/2 16-3/8 16-1/2
7/8
PC42C 27-1/8 21 19-7/8 20
PC43B 23-1/8 17-1/2 16-3/8 16-1/2
PC43C 22-5/8 21 19-7/8 20
PC48C 25-3/8 21 19-7/8 20
PC48D 24-5/8 24-1/2 23-3/8 23-1/2
PC60C 27-1/2 21 19-7/8 20
PC60D 26-7/8 24-1/2 23-3/8 23-1/2
1 All dimensions are in inches.
2 Refrigerant line sizes may require larger lines for extended line lengths. See Application Data part number 247077.

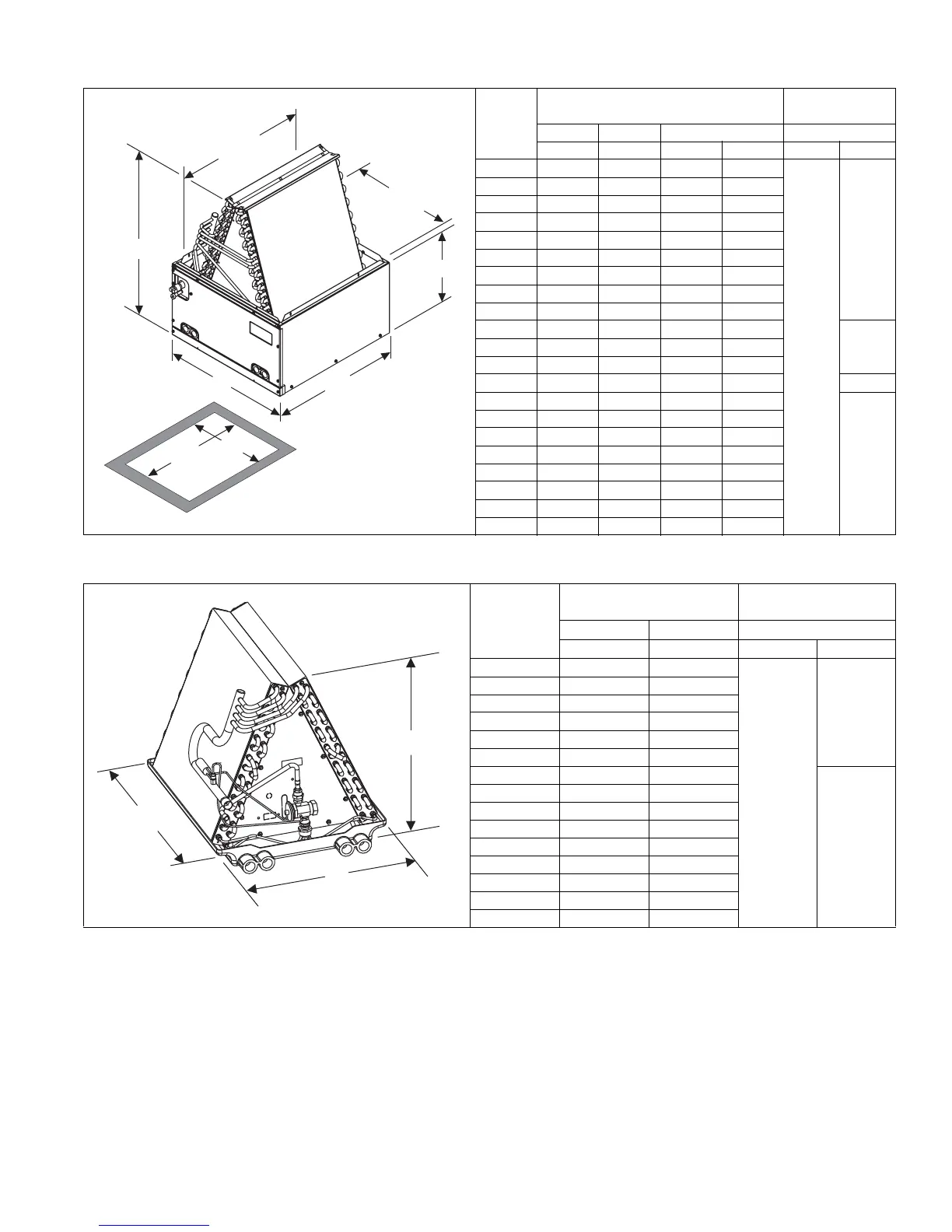

BOTTOM
OPENING
DIMENSIONS
20 1/4”
D
-
20 3/8”
(Opening)
A
C
(Opening)
12”
B
21 1/2”
-
-
Models
Dimensions
1
Refrigerant
Connections
2
Height Width Line Size
A B Liquid Vapor
UC18A 17 13
3/8
3/4
UC18B 16-1/2 16
UC24A 21 13
UC24B 20-1/2 16
UC30A 21 13
UC30B 20-1/2 16
UC36A 23-1/2 13
7/8
UC36B 22-1/2 16
UC36C 22 19-1/2
UC42B 26-1/2 16
UC42C 25-1/2 19-1/2
UC48C 23-1/2 19-1/2
UC48D 23 23
UC60C 25-1/2 19-1/2
UC60D 25 23
1 All dimensions are in inches.
2 Refrigerant line sizes may require larger lines for extended line lengths. See Application Data part number 247077.
21.0
A
B
