York MCC-MCH - 5 - Installation; 5.1 Unit clearances

5 - Installation
4
Unit installation entails:
- unit mounting
- refrigerant piping connections
- condensate water drainage connections
- unit wiring connections.
5.1 - Unit clearances
A minimium of clearance is necessary around the units to
ensure proper air circulation and easy access for maintenance.

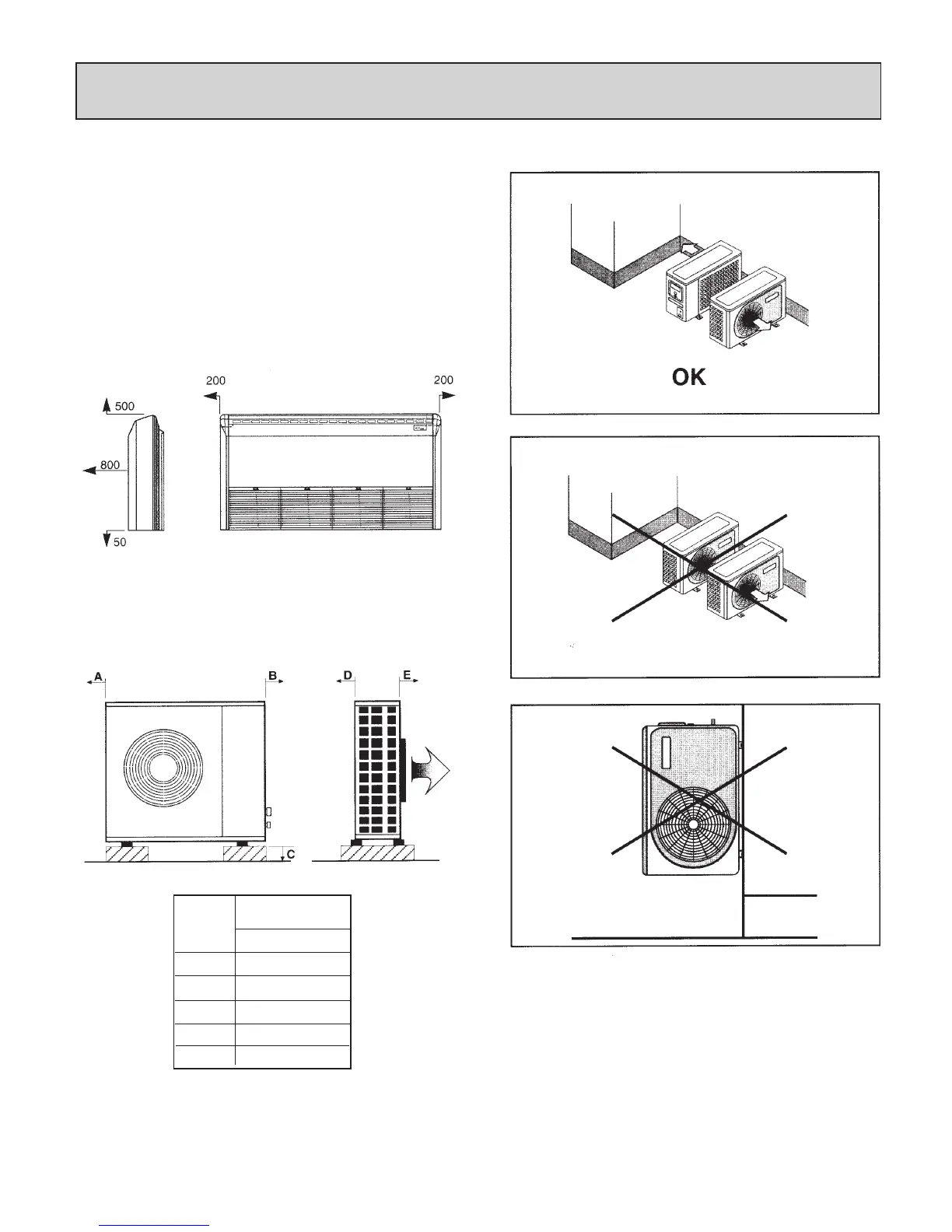

Clearance required for indoor units
Clearance required for outdoor units
Outdoor unit placement
Unit
A
B
C
D
E
35-55
400
200
100
200
600
MOC -MOH
