York Predator ZF078 - ZF150 Unit Side Duct Openings; ZF Side Duct Dimensions; ZF078-150 Unit Left Duct Opening

5167798-YTG-J-0218
Johnson Controls Unitary Products 67

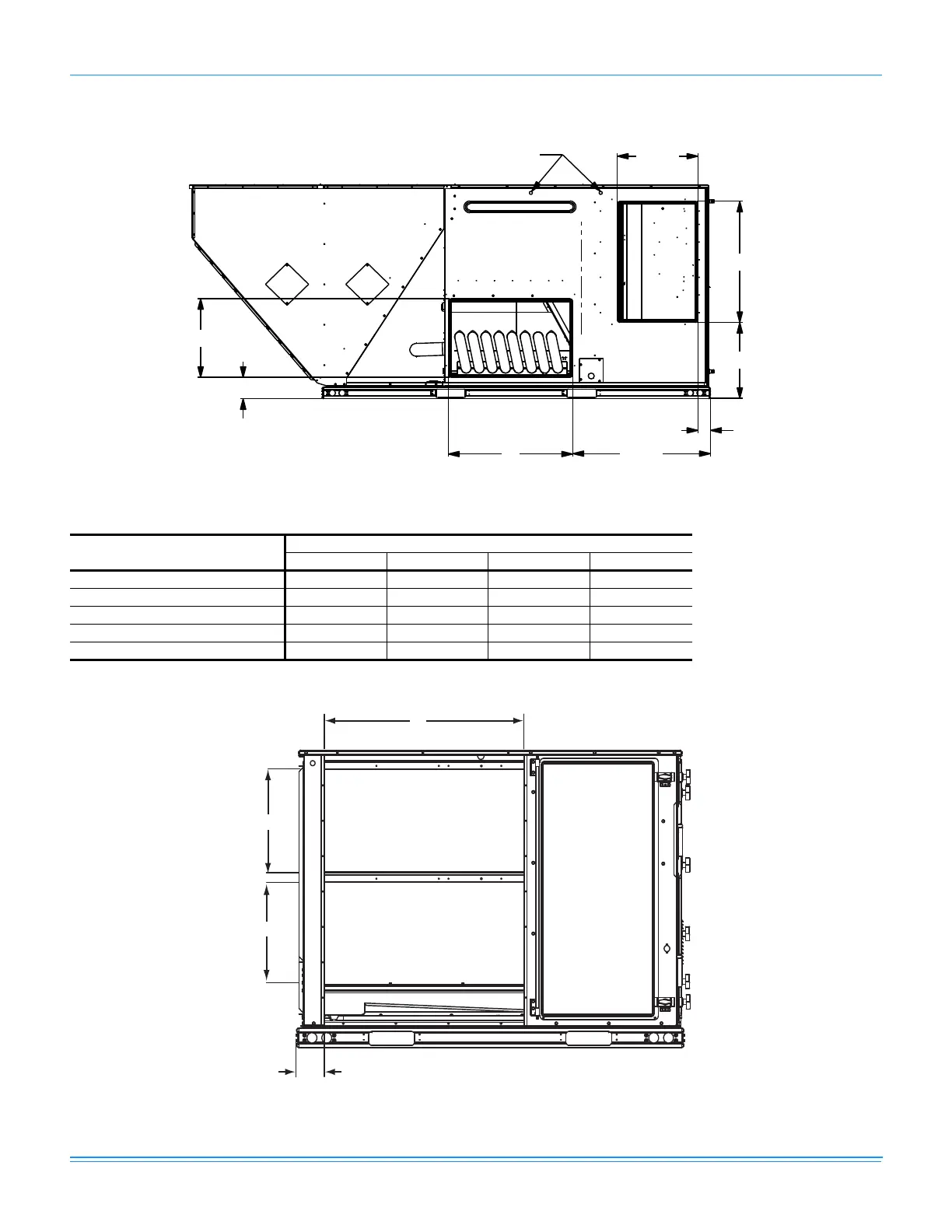

ZF150 Unit Side Duct Openings
ZF078-150 Unit Left Duct Opening
ZF Side Duct Dimensions
Unit Model Number
Dimension (in.)
ABCD
078 27 3/4 12 1/16 27 1/2 16
090 27 3/4 12 1/16 27 1/2 16
102 28 1/4 18 1/16 28 1/4 18 1/4
120 28 1/4 18 1/16 28 1/4 18 1/4
150 28 1/4 18 1/16 28 1/4 18 1/4
Dot Plugs
2-7/8
5-5/32
D
C
31-5/8
18-1/4
B
A
4-5/16
A
C
B
