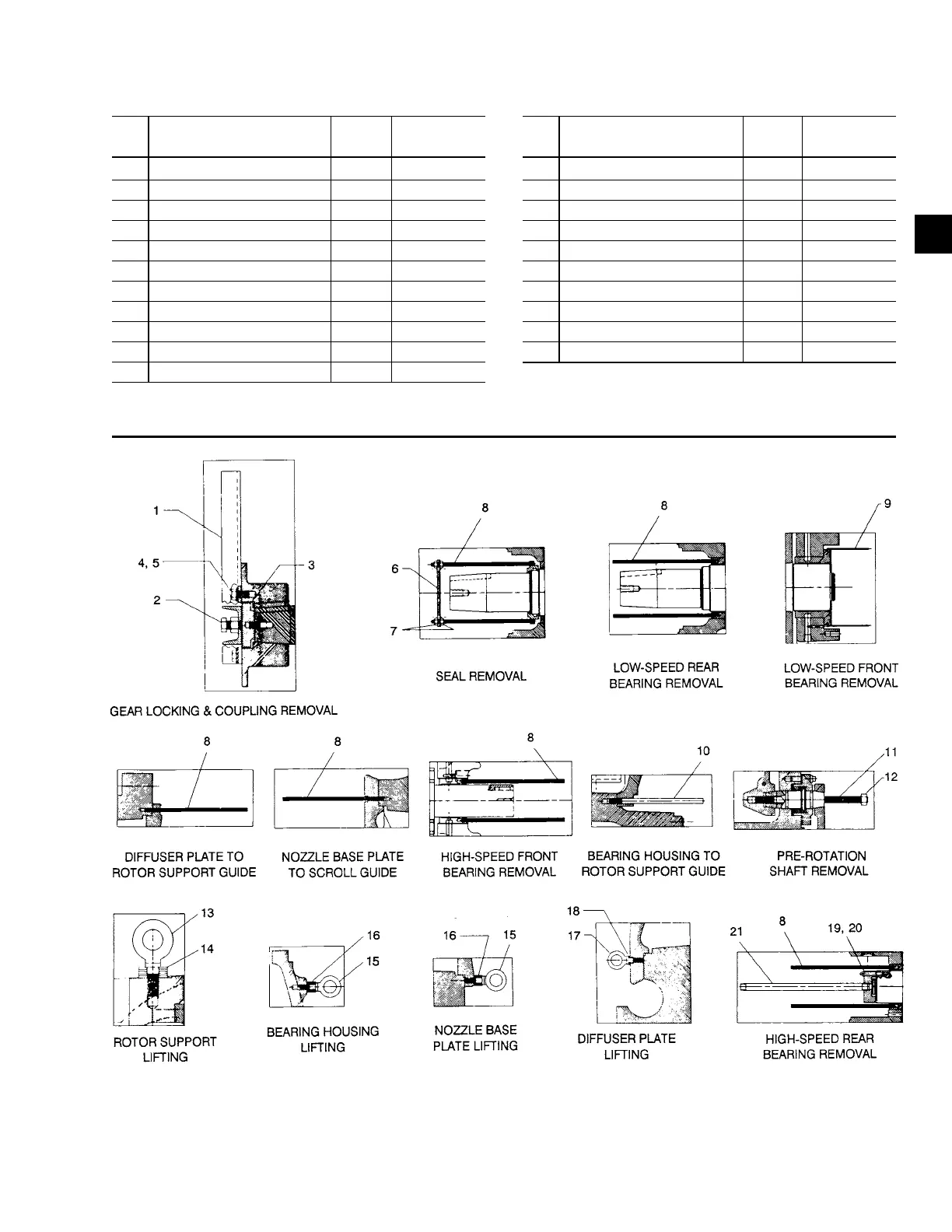

FIG. 8 – USE OF COMPRESSOR TOOLS (-64, -73, -81, -90)
FIG. 7 – COMPRESSOR TOOL KIT 364-48026 (COMPRESSOR SIZES -65, -73, -81, -90)
ITEM
DESCRIPTION
QTY.
PART NO.
NO. PER KIT
12 HEX NUT - 1/2" HEAVY 1 021-00483
13 EYEBOLT - 7/8" 1 021-07703
14 WASHER, PLAIN - 7/8" 5 021-05158
15 EYE BOLT - 3/8" 3 021-13498
16 WASHER, PLAIN - 3/8" 11 021-05167
17 EYE BOLT - 5/16" 2 021-12420
18 WASHER, PLAIN - 5/16" 2 021-05166
19 PINION TOOL
(Mod. 65 & 73) 1 064-48028
20 PINION TOOL (Mod. 50 & 57) 1 064-48029
21 PIPE 1 023-15508
ITEM
DESCRIPTION
QTY.
PART NO.
NO. PER KIT
1 GEAR LOCKING TOOL 1 364-48023
2 CAP SCREW - 5/8" 1 021-08389
3 SPACER TOOL 1 364-48022
4 CAP SCREW - 1/2" 2 021-08388
5 WASHER, PLAIN - 1/2" 2 021-01276
6 BAR TOOL 1 064-47031
7 HEX NUT - 1/4" 4 021-00451
8 GUIDE PIN 2 064-46499
9 HOOK TOOL 2 064-46610
10 GUIDE PIN 3 064-18716
11 STUD 1 064-14500
