Compressor Service
SPECIAL TOOLS
Special tools are available as an option and will be furnished when ordered. These tools are listed in Figs. 5, 7, 9, 11
and 13. Use of the tools is shown in Fig. 6, 8, 10, 12 and 14.

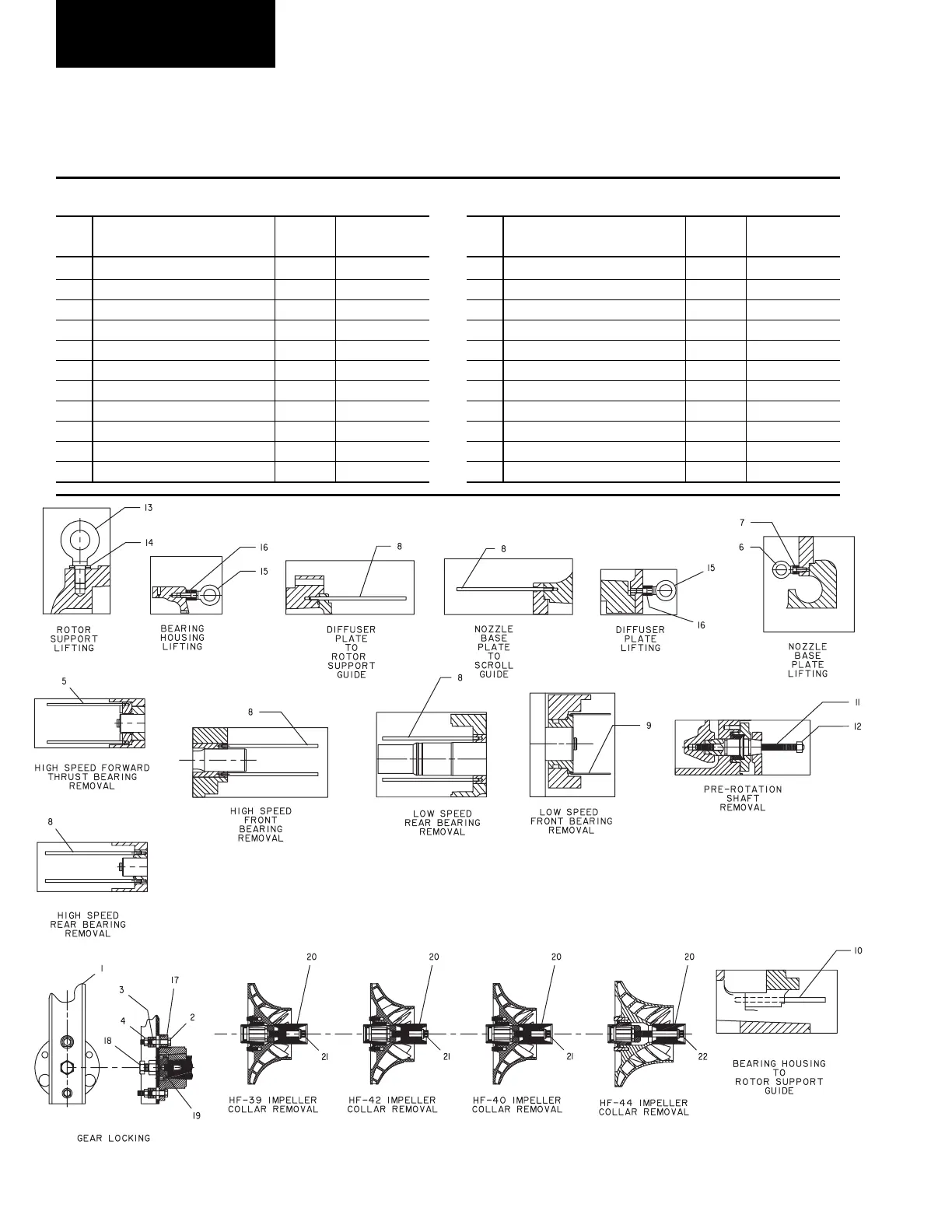

FIG. 5 – COMPRESSOR TOOL KIT – 364K50048-000 (COMPRESSOR SIZES -39, -40, -42, -44)
FIG. 6 – USE OF COMPRESSOR TOOLS (-39, -40, -42, -44)
ITEM
DESCRIPTION
QTY.
PART NO.
NO. PER KIT
1 GEAR LOCKING TOOL 1 364-50212
2 SCREW CAP HEX .375 -16 2 021-01511
3 WASHER PLAIN .375 14 021-01262
4 HEX NUT .375 - 16 2 021-00467
5 GUIDE PIN #10 - 24 2 064-46488
6 EYE BOLT .3125 - 18 2 021-12420
7 WASHER PLAIN .3125 16 021-05166
8 GUIDE PIN .250 - 20 2 064-46499
9 HOOK TOOL 2 064-46610
10 GUIDE PIN .375 - 16 2 064-18716
11 STUD SPL .500 - 20 1 064-14500
12 HEX NUT .500 - 20 1 021-00483
13 EYE BOLT .875 1 021-07703
14 WASHER PLAIN .875 2 021-05158
15 EYE BOLT .375 - 16 3 021-13498
16 WASHER PLAIN .375 39 021-05167
17 SPACER 1 064-50213
18 SCREW CAP HEX .625 - 16 1 021-08389
19 TOOL SPACER 1 364-50210
20 PULLER TOOL 1 064-50211
21 SCREW CAP HEX .500 - 20 1 021-10832
22 SCREW CAP HEX .500 - 20 1 021-14162
ITEM
DESCRIPTION
QTY.
PART NO.
NO. PER KIT
