York YLAA - Page 33

FORM 150.72-EG6 (516)
JOHNSON CONTROLS
33

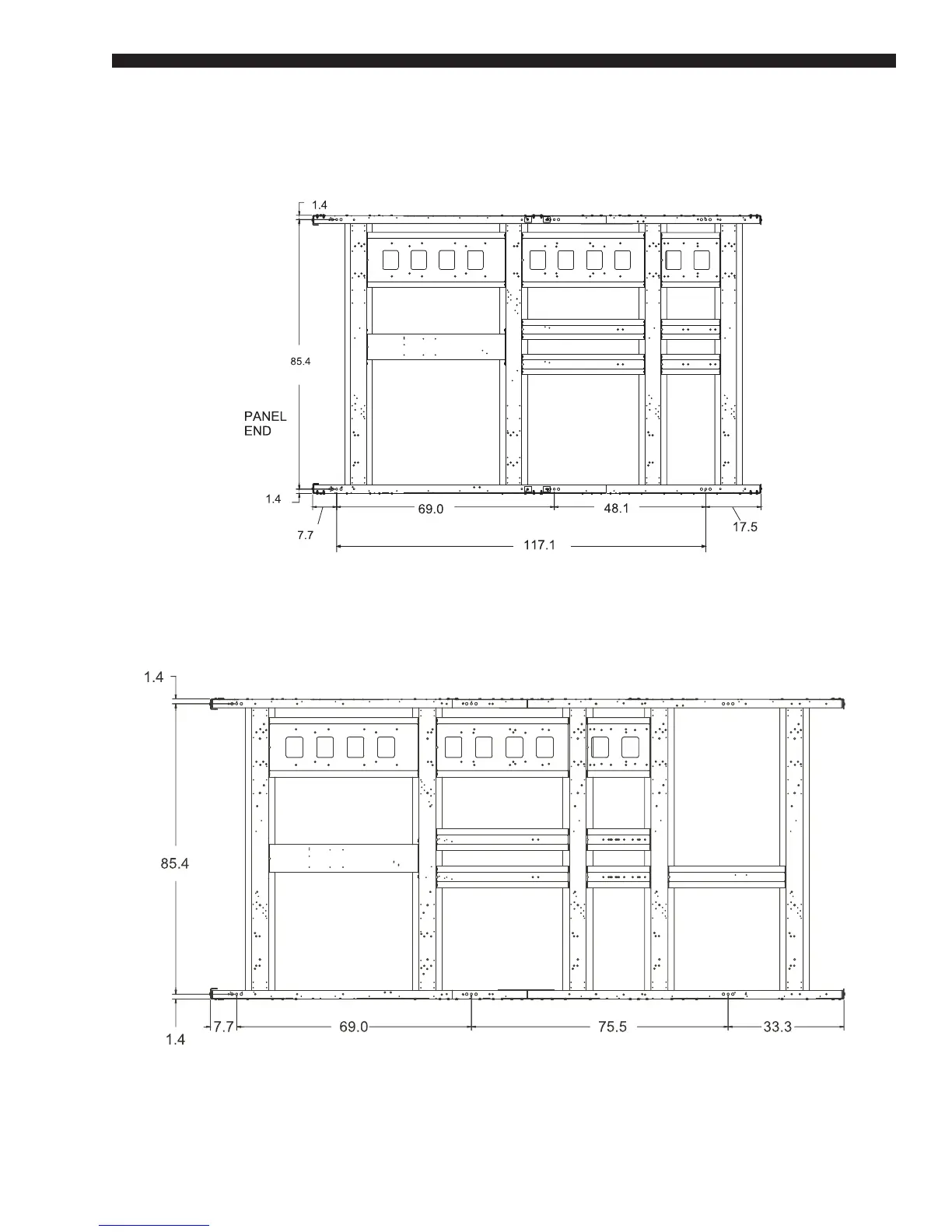

FIVE & SIX FAN ISOLATOR LOCATIONS
YLAA0100SE, YLAA0120SE, YLAA0092HE, YLAA0101HE
Isolator Locations (Cont'd)
EIGHT FAN ISOLATOR LOCATIONS
YLAA0125HE, YLAA 0136SE, YLAA0155SE, YLAA0142HE
TOP
VIEW
LD18439
TOP
VIEW
LD18440
Alldimensionsareinchesunlessotherwisespecied.
Dimensions indicate isolator mounting centerlines.
