JOHNSON CONTROLS
FORM 150.72-EG6 (516)
34

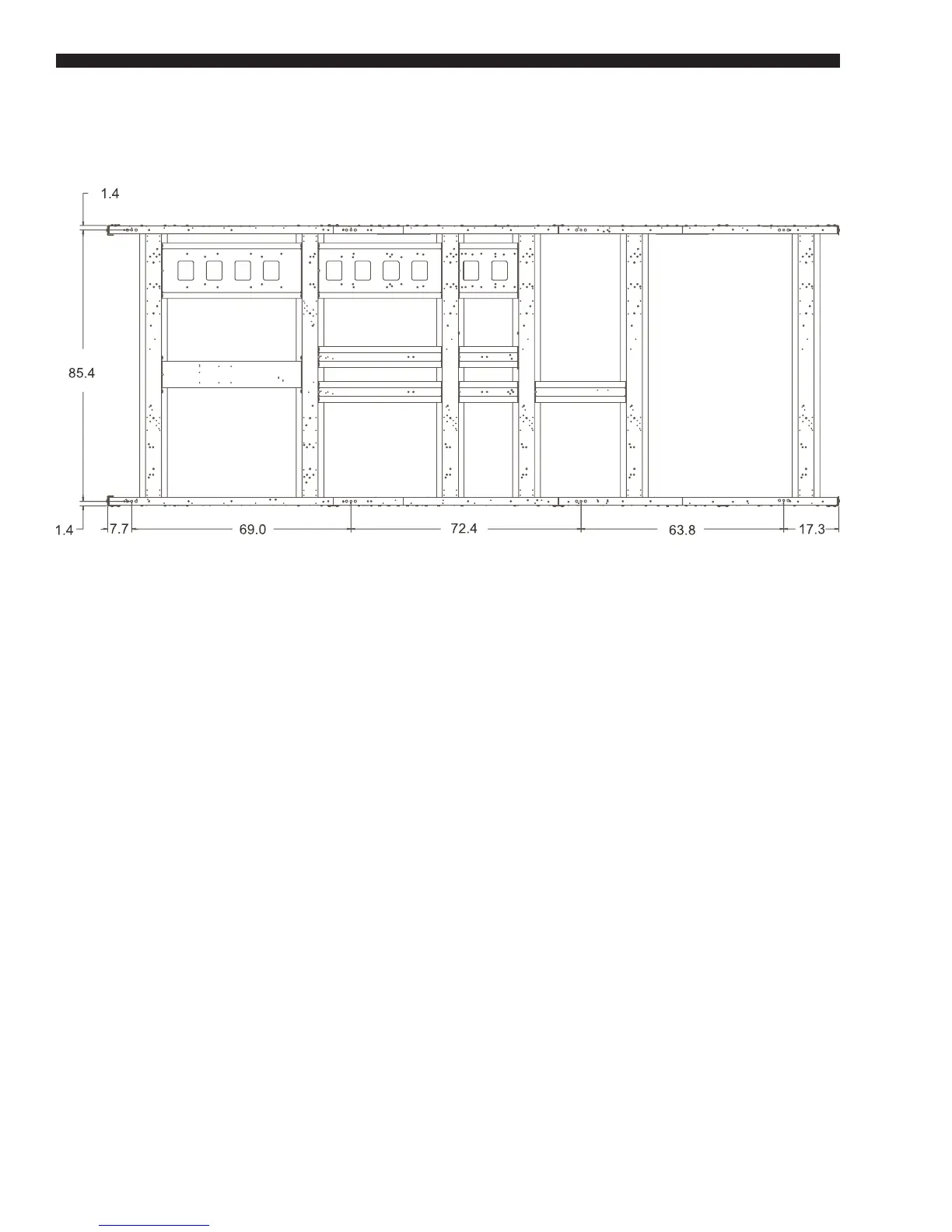

TEN FAN ISOLATOR LOCATIONS
YLAA 0170SE, YLAA0156HE, YLAA0175HE
Isolator Locations (Cont'd)
TOP
VIEW
LD18441
Alldimensionsareinchesunlessotherwisespecied.
Dimensions indicate isolator mounting centerlines.
