York YUFE60BYTM-MS-1 - Page 76

Maintenance and
Disassembly
 Page 72 
YUFE48BYTM-MS-1, YUFE48BYSM-MS-1, MOE30U-48HN1-NB8, YUFE60BYTM-MS-1, YUFE60BYSM-MS-1,
MOE30U-60HN1-NB8
Procedure Illustration
10) Disconnect the wires connected to
the transformer. (see CJ_ODU_011)
11) Disconnect the wires connected to
high/low pressure switch. (see CJ_
ODU_011)
12) Disconnect the wires connected to
indoor unit. (see CJ_ODU_011)
13) Disconnect the wires connected to
AC contactor. (see CJ_ODU_011)
14) Remove the screws of the capacitor
and then remove it (1screw for each
capacitor). (see CJ_ODU_012)

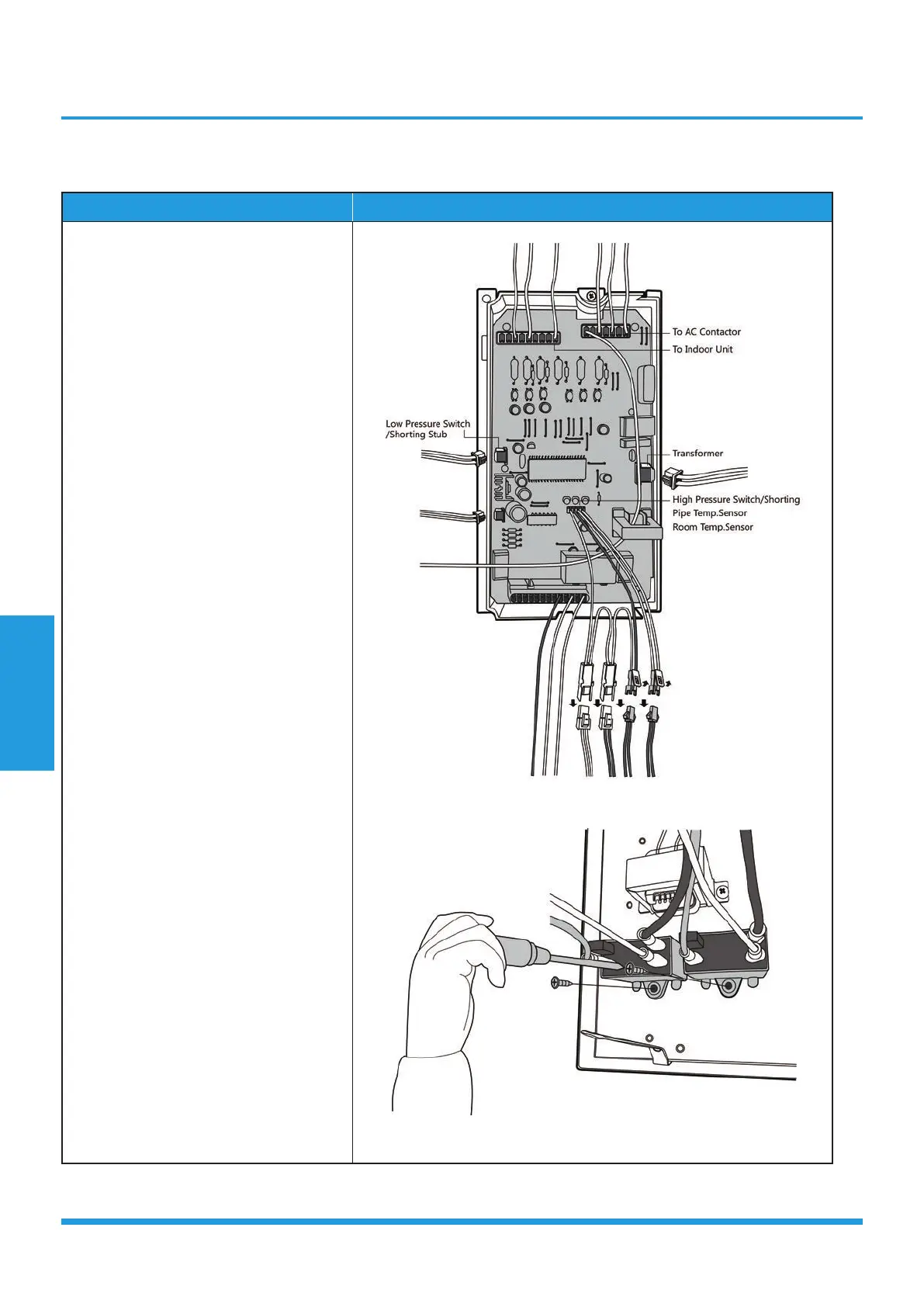

CJ_ODU_011
CJ_ODU_012
Note: This section is for reference only. Actual unit appearance may vary.
