5.8.2. RepIace the tilt actuator
Preparation
1. Set the seat in the maximum tilted position for easy access.
2. See section 5.1.
Procedure
1. Make sure that the seat is kept in the tilted
position. For instance by placing a support.
2. Remove the seat cushion for easy access.
3. Disconnect the actuator cable.

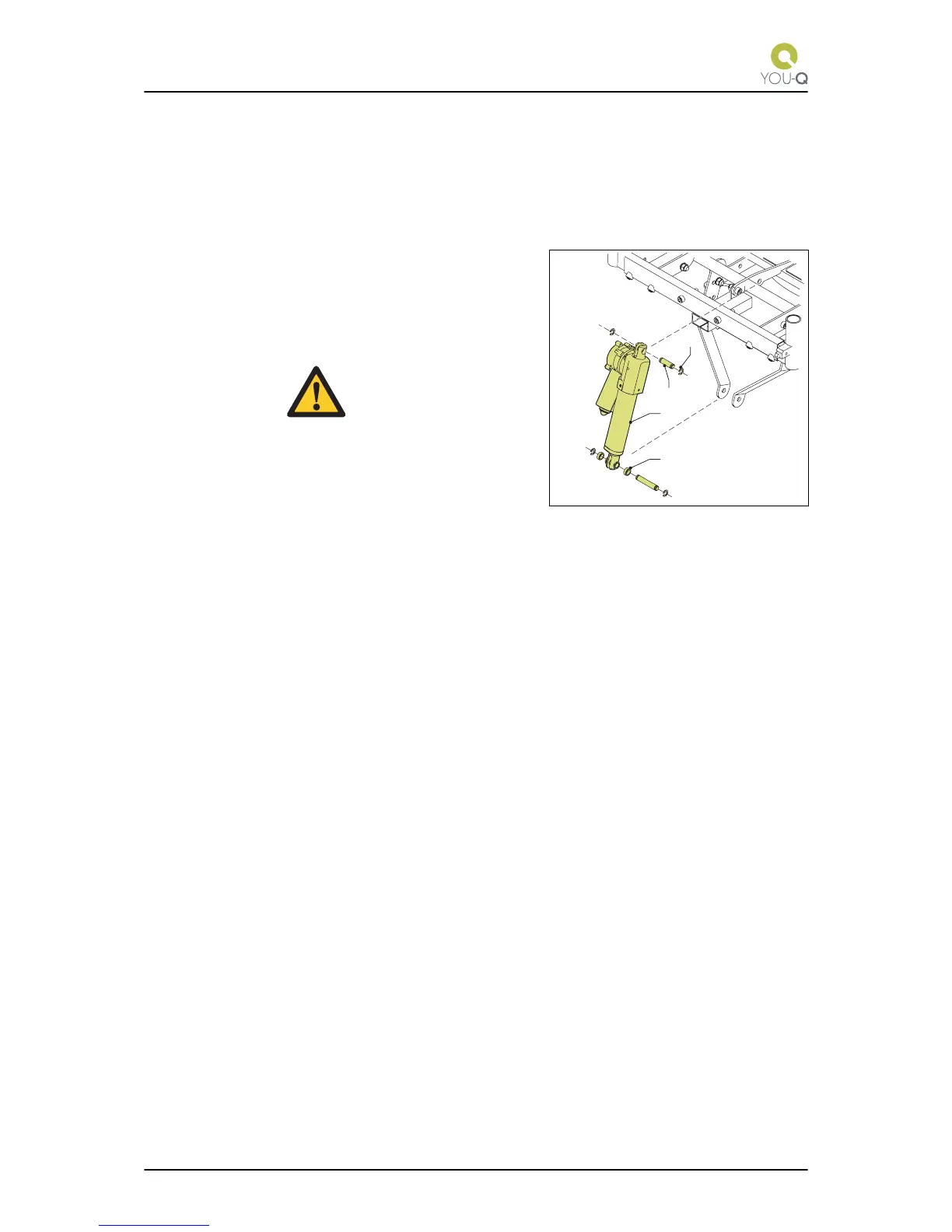

4. Remove the circlips (B) from the pivots C
and D at both ends of the actuator (A).
5.
WARNING!
Make sure that the tilted
seat is supported safely.
Remove the old actuator.
6. Put the new actuator into the tilt
mechanism.
7. Connect the actuator cable.
8. Make sure that the actuator cable can follow
the movement of the mechanism but that
the cable does not get jammed by the
mechanism.
9. Check the functionality of the actuator.
