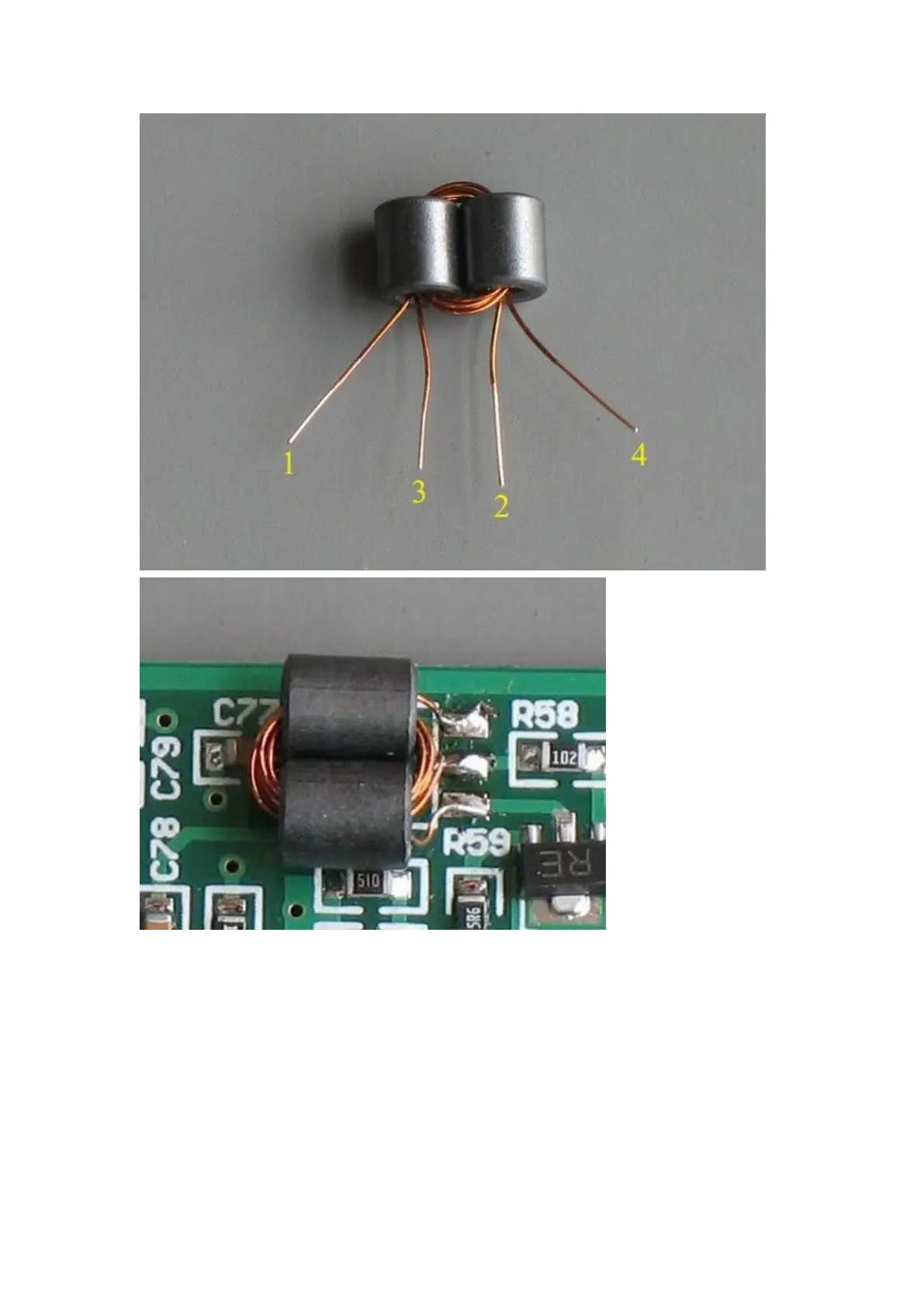

T7 is soldered on the 3-lead pads, with the tap in then middle pad. No connection on the
2-pin lpads.
