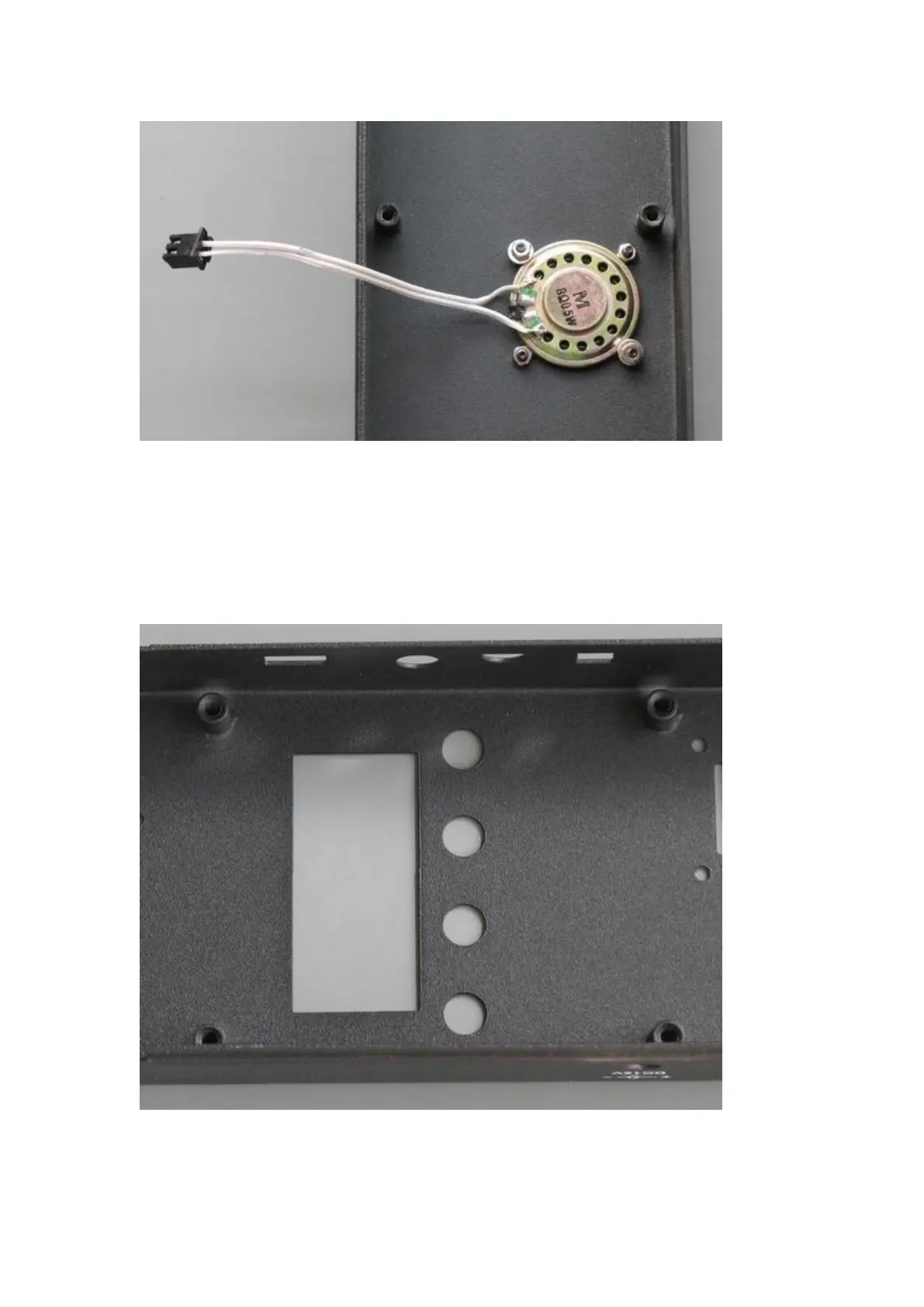

Cut the 2-wire ribbon cable in appropriate length (a length of 90 mm is enough) and solder
the 2-wire cable to the speaker pads. Assemble the black connector to the cable.
Assemble the DDS Unit to the enclosure. The stands-off are pre-made inside the
enclosure.
