BoSS X-Series Maintenance Manual

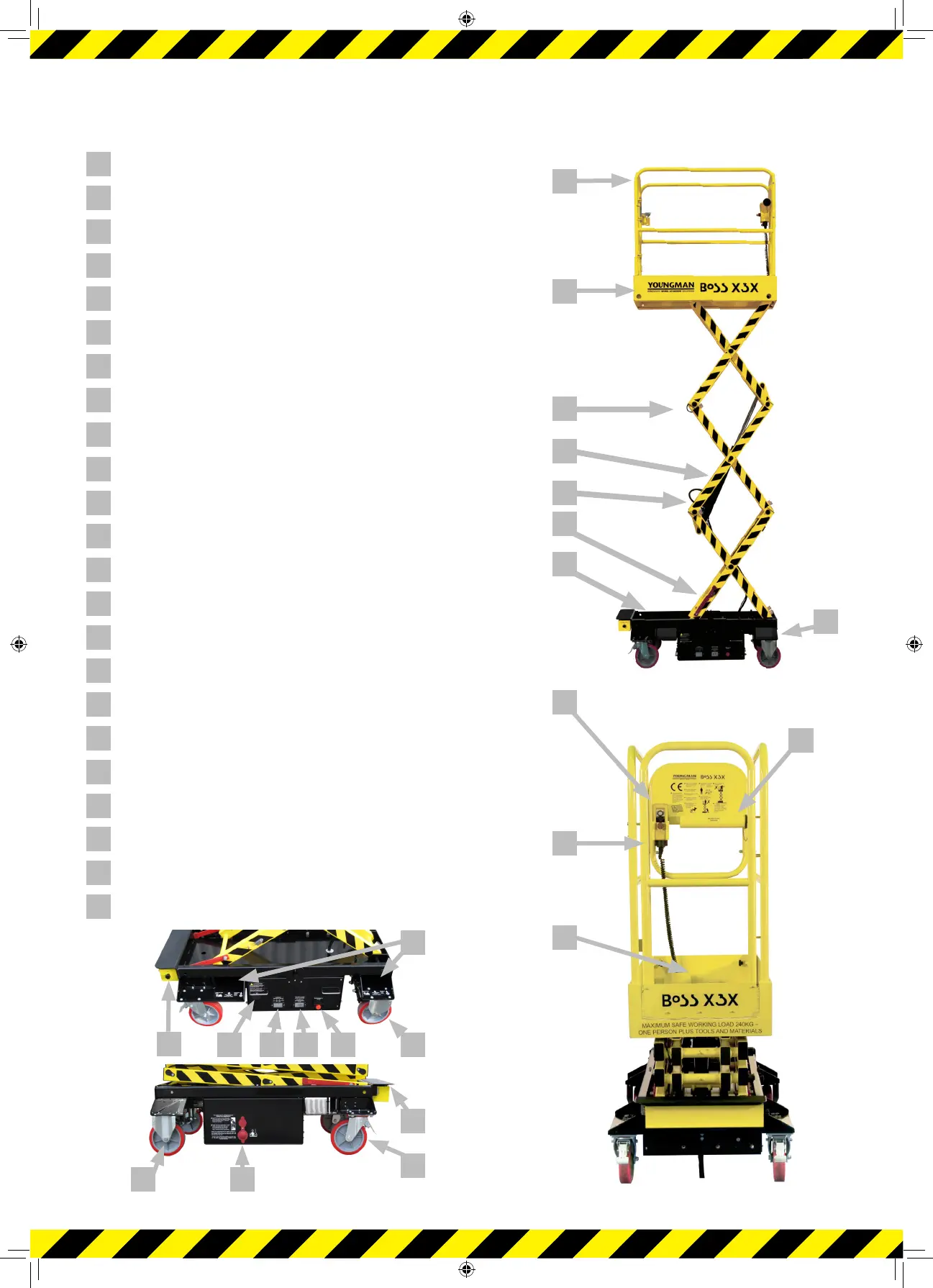

1.4 TERMINOLOGY
1
Charging cables and guardrail tools tray
2
Forklift access, hoisting and transit strap points
3
Battery charging connection point
4
Battery charging indicator
5
Battery charge level indicator
6
Base unit emergency stop
7
Smooth roll castors with non marking tyres
8
Step up to platform
9
Fixed castors with auto braking applied as the
platform is raised
10
Swivel castors with click on brakes
11
Emergency lowering release valve
12
Guardrails
13
Work platform
14
Scissor assembly
15
Hydraulic ram
16
Pressure loss valve
17
Fail-safe props
18
Chassis
19
Winching eye
20
Handset control unit
21
Instructions for Use storage tube
22
Access gate
23
Slip resistant deck incorporating lanyard point
10
7
1
2
3 4
11
8
9
65
13
12
16
20
14
18
22
15
21
17
19
23
