12 YT-3400/3450 series

2.7 Parts and Assembly

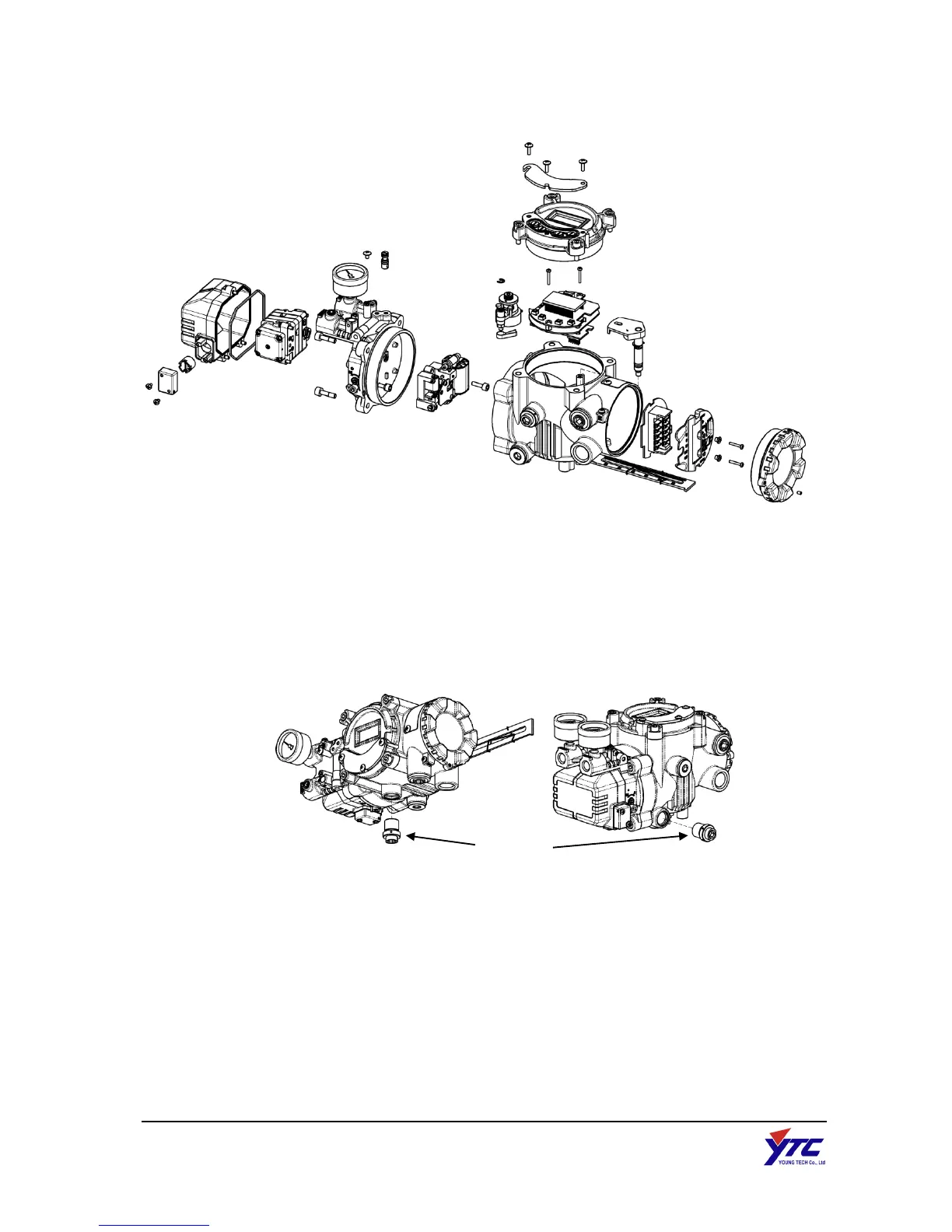

Fig. 5: YT-3400/3450 series exploded view

1. Pilot Cover 6. Potentiometer

2. Pilot Unit 7. Main Body

3. Main Cover 8. Terminal PCB

4. Main PCB 9. Terminal Cover

5. Feedback Lever 10. Manifold

Fig. 6: Location of drain plug according to orientation of positioner’s mounting

YT-3400/3450 series have two drain ports to be used for internal condensation. Please use

larger drain plug for the condensation and block other remaining port with blind plug.

Drain Plug
