Ytc YT-3400 SERIES User Manual

41 YT-3400/3450 series

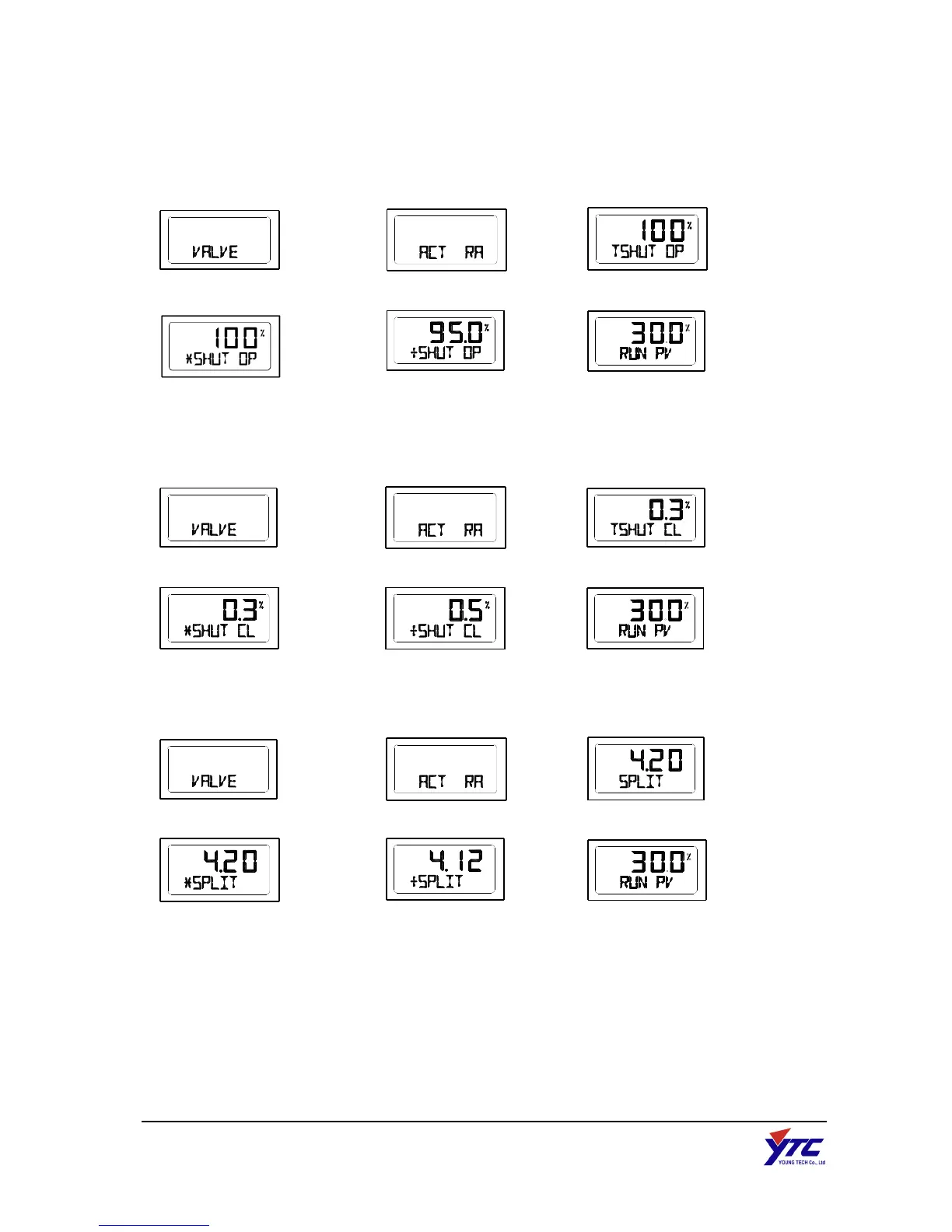

7.8.4 Tight Shut Open (TSHUT OP)
Tight Shut Open allows the valve to open completely as the input signal reaches around
20mA.
7.8.5 Tight Shut Close (TSHUT CL)
Tight Shut Close allows the valve to close completely as the input signal reaches around
4mA.
7.8.6 Split Range Mode (SPLIT)
The valve can be operated by split range control – 4~12mA or 12~20mA.
⇨
<ENTER>
⇨
<DOWN>
3 times
⇨
<ENTER>
⇨
<UP>/<DOWN>
<ENTER>
⇨
<ESC>
3 times
⇨
<ENTER>
⇨
<DOWN>
4 times
⇨
<ENTER>
⇨
<UP>/<DOWN>
<ENTER>
⇨
<ESC>
3 times
⇨
<ENTER>
⇨
<DOWN>
5 times
⇨
<ENTER>
⇨
<UP>/<DOWN>
<ENTER>
⇨
<ESC>
3 times
4~20mA Control
4~12mA Control
