Recording with digital night vision monoculars
Ranger 5x42/Ranger Pro 5x42
l Connect the plug of the Ranger’s AV cable to the Ranger’s “AV out” port

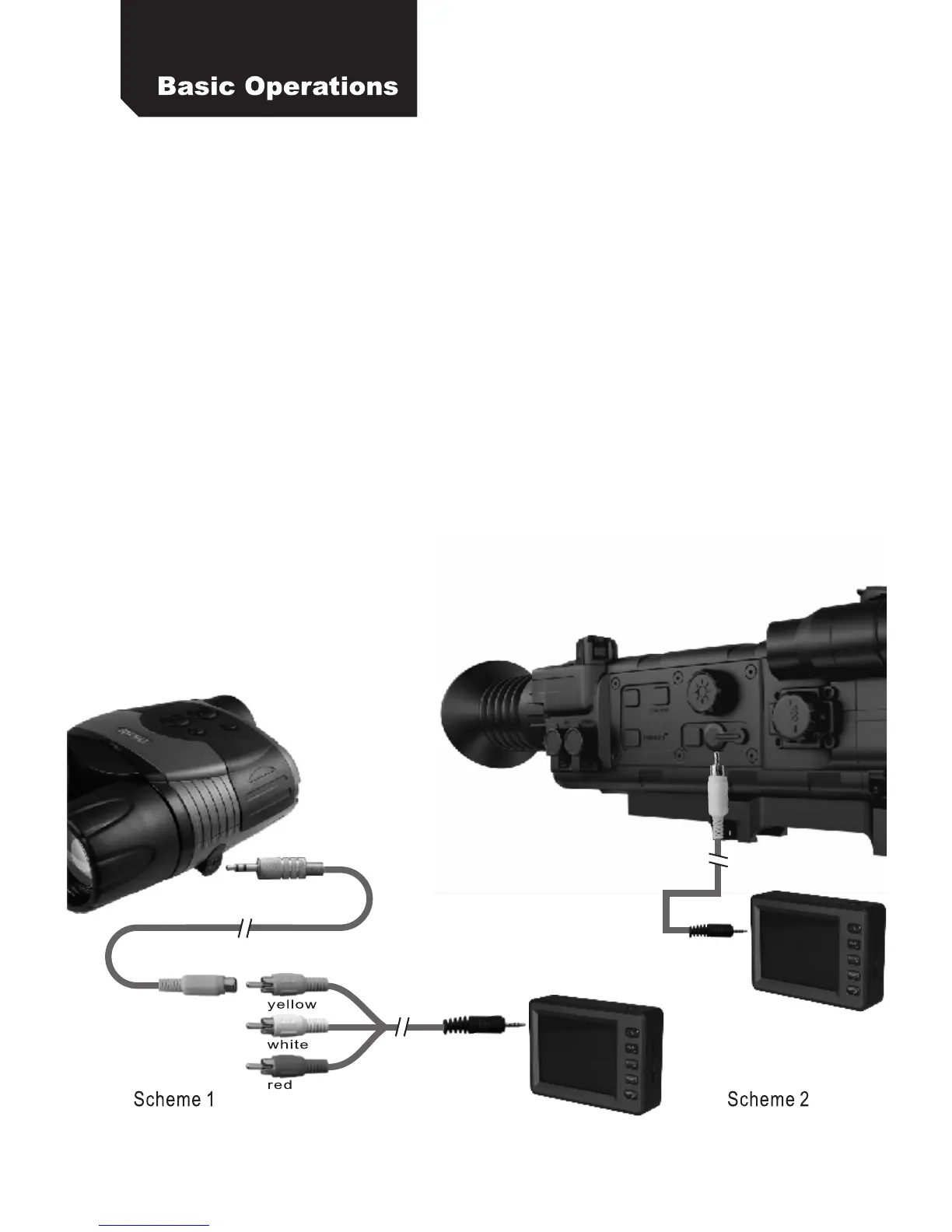

(see scheme 1 below).
l Connect the yellow plug of the recorder’s AV IN cable to the yellow jack of
the Ranger’s AV cable.
l Connect the thin plug of the recorder’s AV IN cable to the “CAM IN” port of
the video recorder.
l Start the video recorder, turn on the NV Ranger 5x42/Ranger Pro 5x42.
l Adjust the image according to the instructions before recording.
Recording with digital riflescopes
l Connect the yellow plug of the included Digisight N550/N750 cable to the
“AV out” port of the digital riflescope (see scheme 2).
l Connect the other plug of the Digisight N550/N750 cable to the “CAM IN”
port of the video recorder.
l Start the video recorder and the riflescope.
l Adjust the image according to the instructions before recording.
Digisight N550/N750
