5
.COM

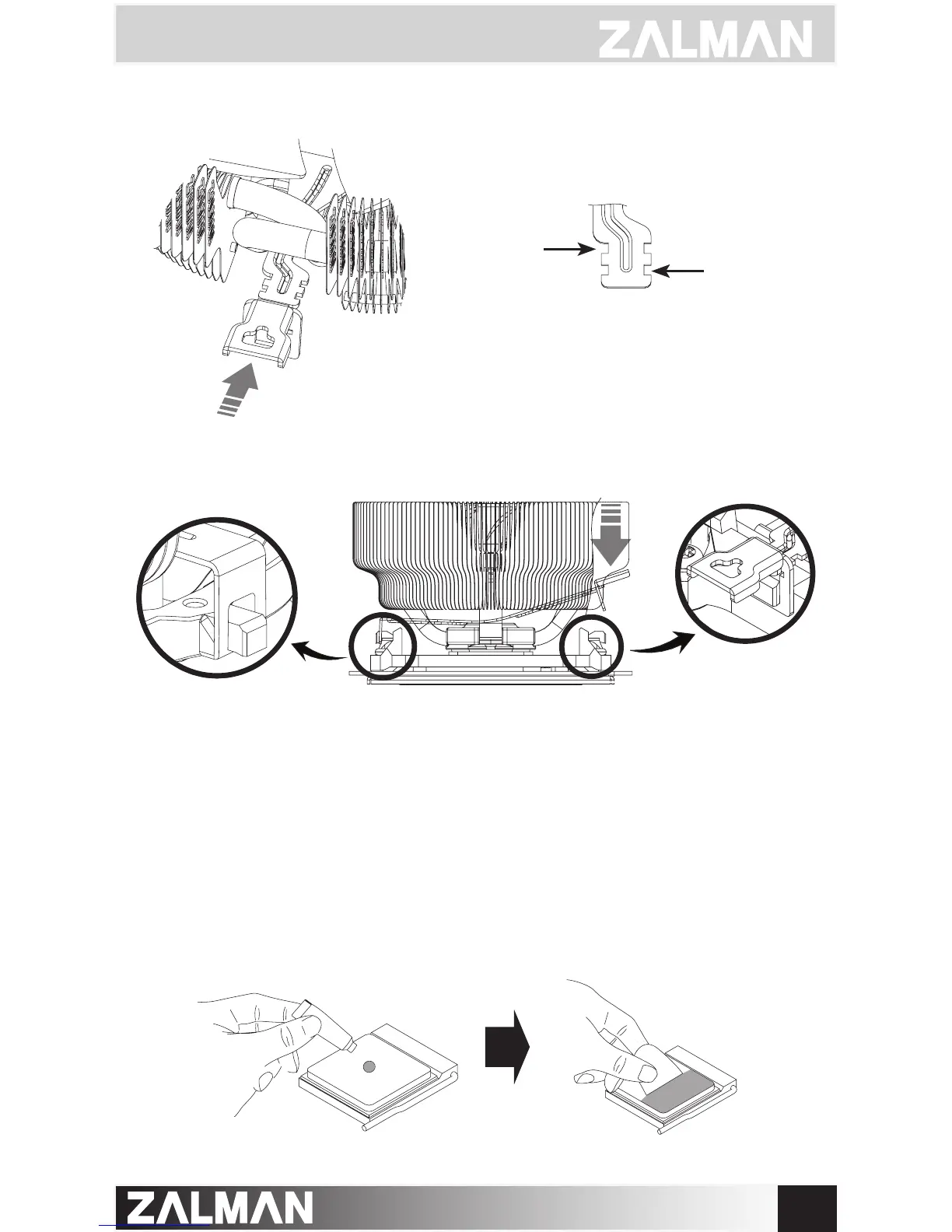

④ Align and insert the Clip Lever onto the Clip’s Intel slot.
⑥ Refer to section ‘6. Fan Mate 2 Installation and Usage’ for instructions
on power connection.
① Clear off any particles or residue from the CPU’s surface then spread
a thorough layer of Thermal Grease on the CPU and the base of the
cooler.
2) AMD Socket AM3 / AM2+ / AM2 / 754 / 939 / 940 Installation
Intel slot
AMD slot
⑤ Hook the opposite end of the Clip to the Lug first, then press down on
the Clip Lever and hook the Clip Lever onto the Lug to secure the cooler.
To Next Page
