ZALMAN CNPS8700 LED User Manual

6
.COM

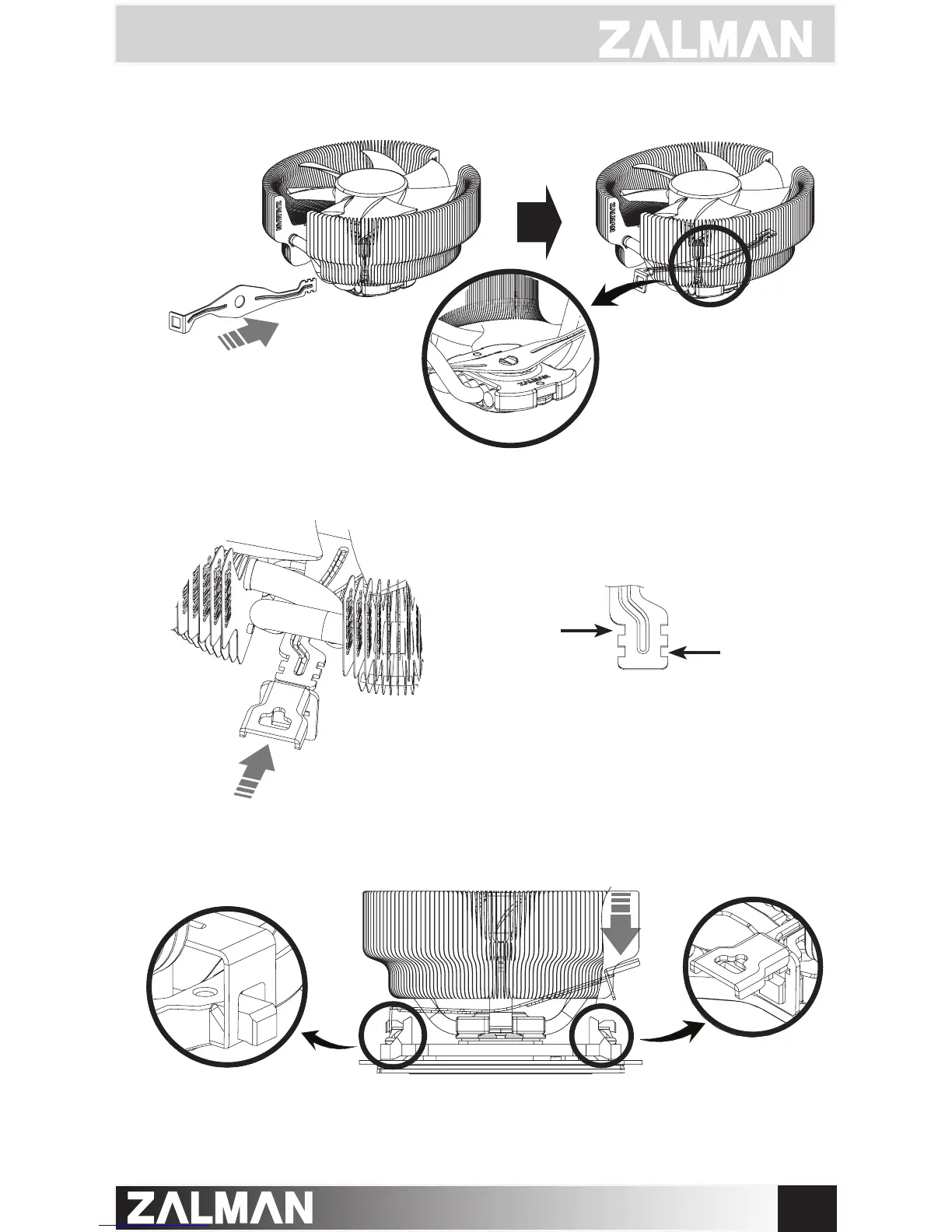

② Insert the AMD Clip tilted on its side, then align the center hole and the
base cover protrusion.
⑥ Refer to section ‘6. Fan Mate 2 Installation and Usage’ for instructions
on power connection.
③ Align and insert the Clip Lever onto the Clip’s AMD slot.
Intel slot
AMD slot
⑤ Hook the opposite end of the Clip to the Lug first, then press down on
the Clip Lever and hook the Clip Lever onto the Lug to secure the cooler.
