4
Z5 Series

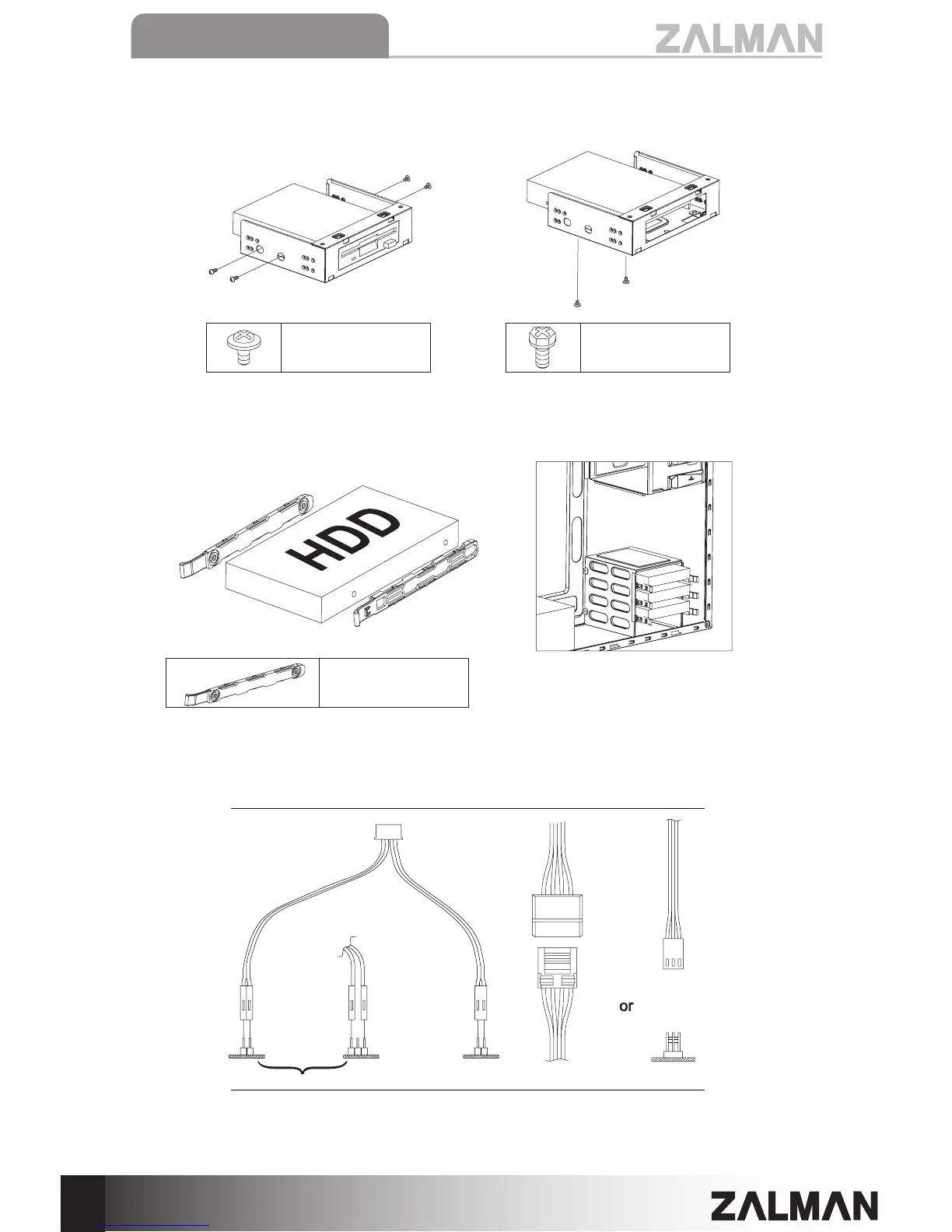

② Attach Drive to Tray
Use the HDD Guide to install 3.5" HDD.
Press the HDD Guide when
removing the HDD.
A. 3.5” FDD Installation
A Bolt
HDD Guide
B. 3.5” HDD Installation
B Bolt
(5) 3.5” HDD Installation
(6) Cable Connection
Power LED Power
Mother Board
Power Button
or
Fan Connection
PSU Power
Mother Board
(3-Pin Fan Connector)
* Fan Controller is only supported in Z5 Plus
3.5” FDD
3.5” HDD
