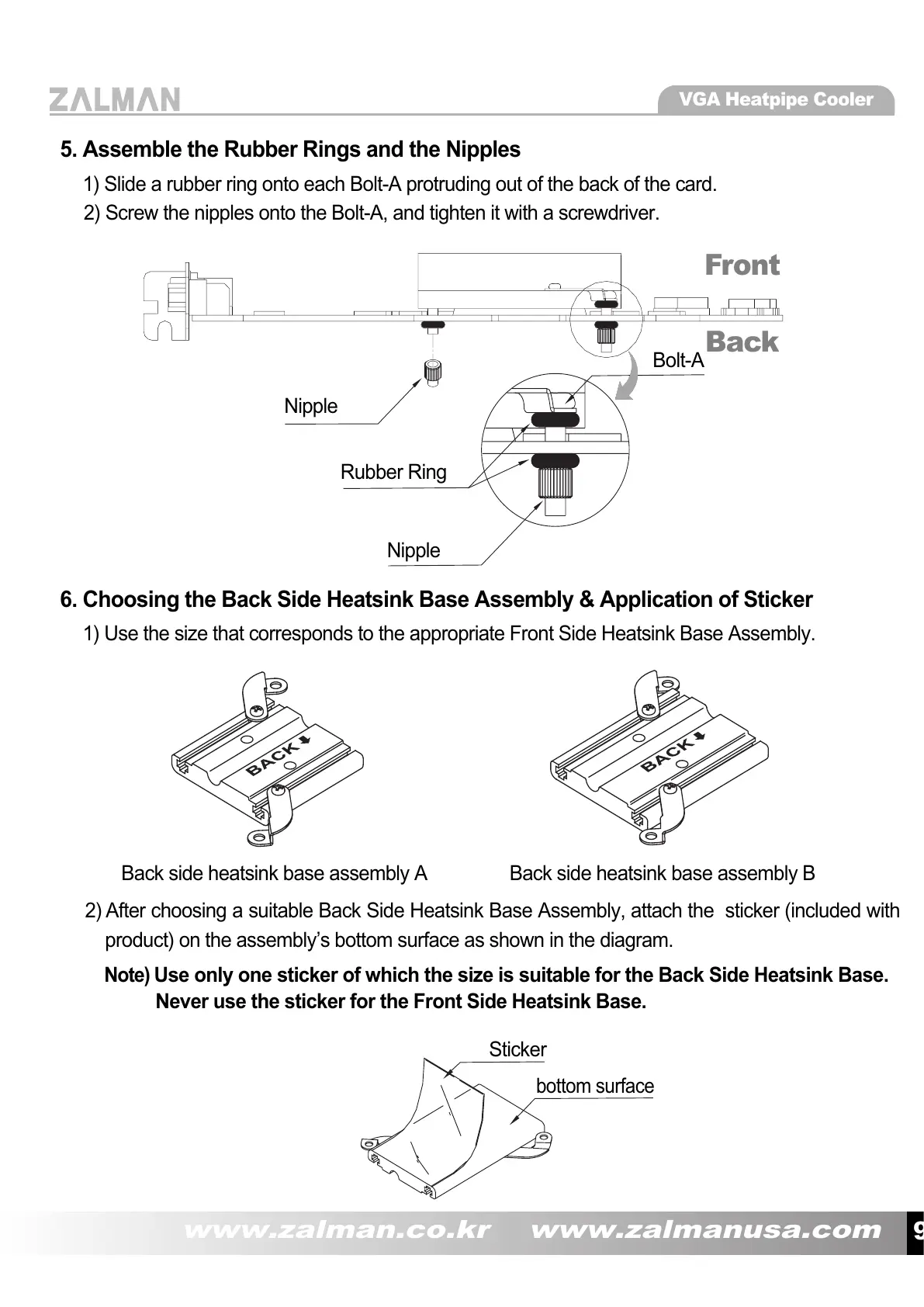

Page #9 background imageLoading...
Page #9 background image
www.zalman.co.kr www.zalmanusa.com
9
VGA Heatpipe Cooler
5. Assemble the Rubber Rings and the Nipples
1) Slide a rubber ring onto each Bolt-A protruding out of the back of the card.
2) Screw the nipples onto the Bolt-A, and tighten it with a screwdriver.
Front
Back
Nipple
Bolt-A
Rubber Ring
Nipple
6. Choosing the Back Side Heatsink Base Assembly & Application of Sticker
1) Use the size that corresponds to the appropriate Front Side Heatsink Base Assembly.
2) After choosing a suitable Back Side Heatsink Base Assembly, attach the sticker (included with
product) on the assembly’s bottom surface as shown in the diagram.
Note)
Use only one sticker of which the size is suitable for the Back Side Heatsink Base.
Never use the sticker for the Front Side Heatsink Base.
Back side heatsink base assembly A Back side heatsink base assembly B
Sticker
bottom surface
