www.zalman.co.kr www.zalmanusa.com
8

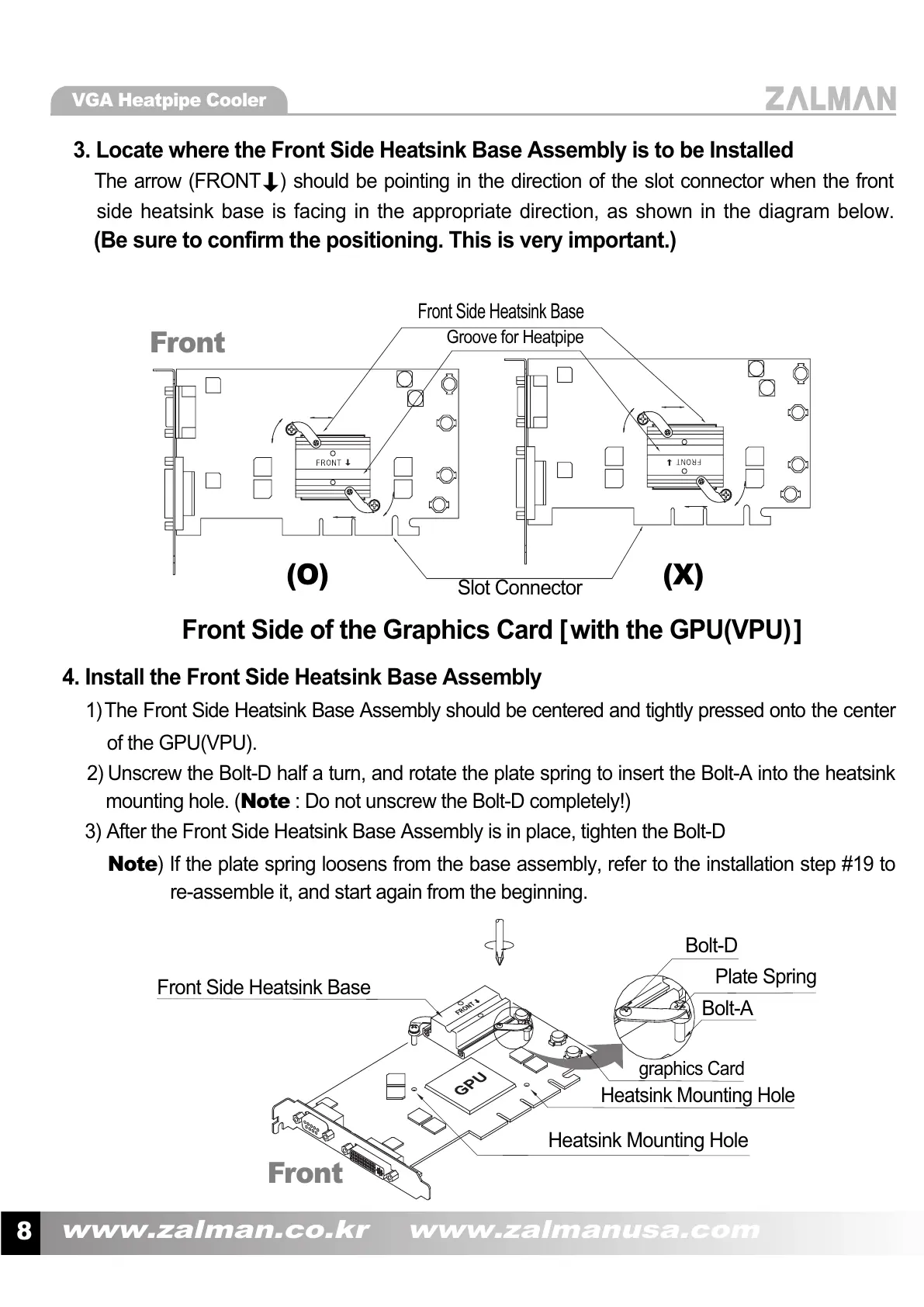

VGA Heatpipe Cooler
4. Install the Front Side Heatsink Base Assembly
1) The Front Side Heatsink Base Assembly should be centered and tightly pressed onto the center
of the GPU(VPU).
2) Unscrew the Bolt-D half a turn, and rotate the plate spring to insert the Bolt-A into the heatsink
mounting hole. (Note : Do not unscrew the Bolt-D completely!)
3) After the Front Side Heatsink Base Assembly is in place, tighten the Bolt-D
Note) If the plate spring loosens from the base assembly, refer to the installation step #19 to
re-assemble it, and start again from the beginning.
Front
Plate Spring
Front Side Heatsink Base
Heatsink Mounting Hole
graphics Card
Heatsink Mounting Hole
Bolt-A
Bolt-D
3. Locate where the Front Side Heatsink Base Assembly is to be Installed
The arrow (FRONT) should be pointing in the direction of the slot connector when the front
side heatsink base is facing in the appropriate direction, as shown in the diagram below.
(Be sure to confirm the positioning. This is very important.)
Front Side Heatsink Base
Groove for Heatpipe
Slot Connector
Front
(O) (X)
Front Side of the Graphics Card [ with the GPU(VPU)]
To Next Page
