18

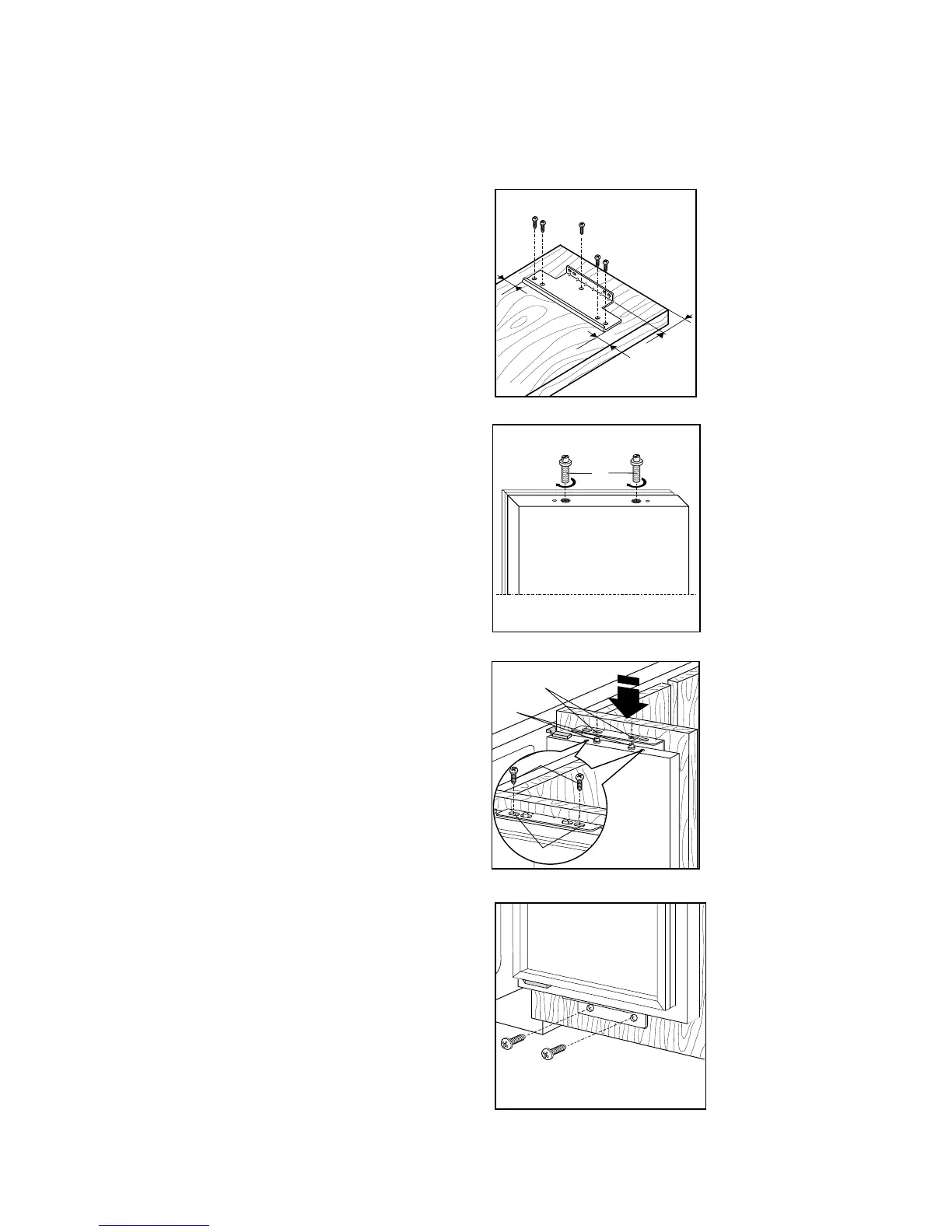

Lay the panel face down (Fig. 6). Position the top
bracket on the panel, making sure that there is an
equal distance between it and the sides and that its
distance from the top edge is equal to distance (A)
less 1 cm.
Secure the bracket with the screws supplied.
Take care not to damage the front face of the panel
whilst working.
Insert the adjusting pins (B-Fig. 7) into their locations
in the door and screw them in.
Hook the decorative panel onto the top part of the
door, inserting the pins (B) (on the door) into the
elongated holes (1) (in the top bracket fitted to the
panel) (Fig. 8).
Insert the securing screws (C) through elongated
holes (2) and fix the panel without tightening the
screws (Fig. 8).
Once the top of the panel has been correctly
positioned, fix it through the holes in the bottom
bracket, without tightening the screws (Fig. 9).
Fig. 6
Fig. 7
Fig. 8
Fig. 9
D468
A
-1cm
=
=
D532
B
D533
1
B
2
C
D471
