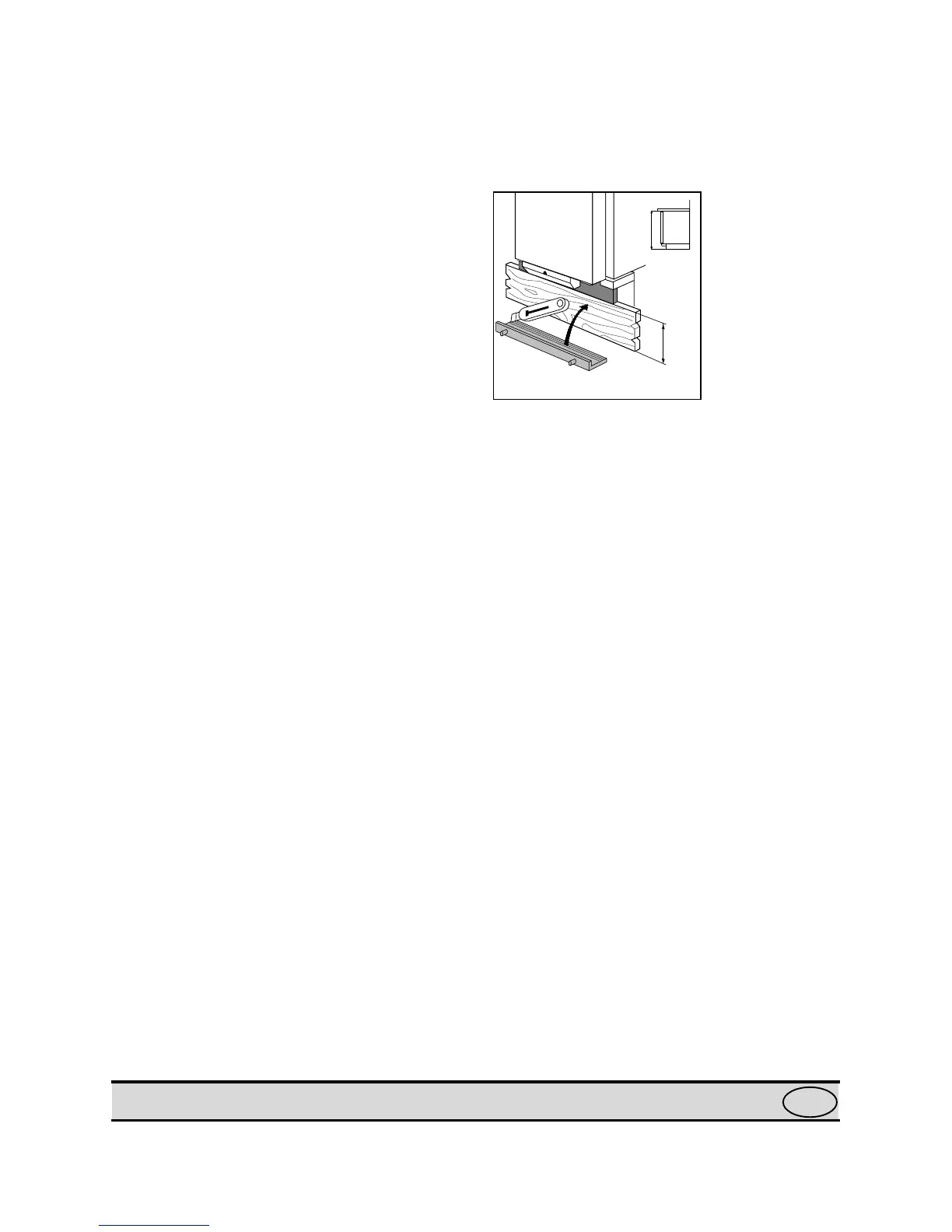

If the appliance has been fitted into a space 870 mm
high and the maximum height of the base plate is 150
mm, fit the front cover plate as described in Fig. 13.
If the base plate is between 150 and 185 mm high, cut
it as shown in Fig. 14.
If the base plate is between 185 and 220 mm high, cut
it as shown in Fig. 12.
Electrical connection
Before plugging in, ensure that the voltage and
frequency shown on the serial number plate
correspond to your domestic power supply.
Voltage can vary by ±6% of the rated voltage.
For operation with different voltages, a suitably sized
auto-transformer must be used.
Fig. 14
100÷135
150÷185
820
870
D520
TECHNICAL SPECIFICATION
The technical data is indicated in the rating plate on the left side inside the appliance.
